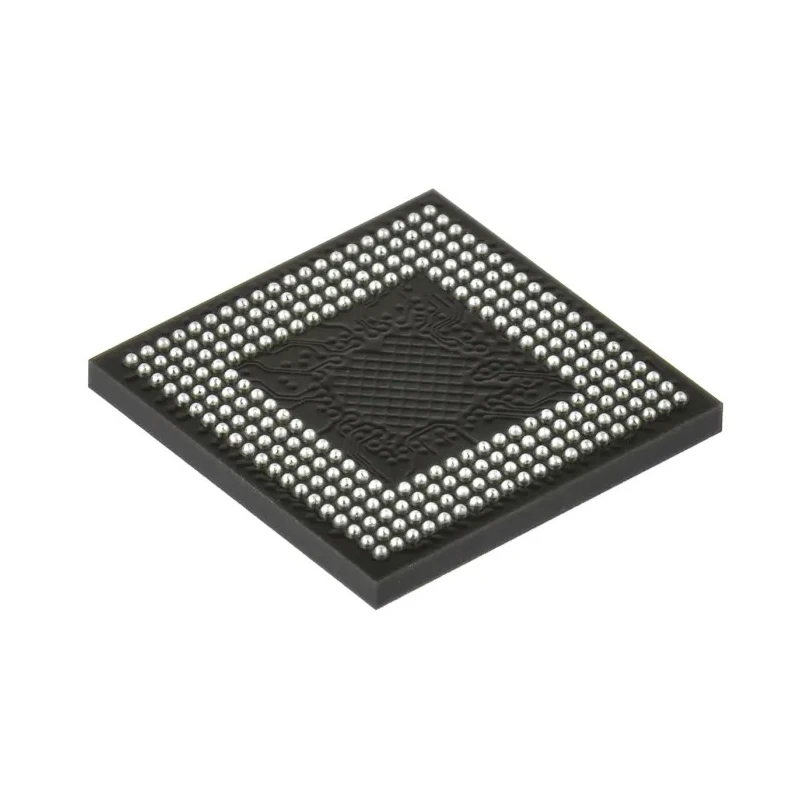

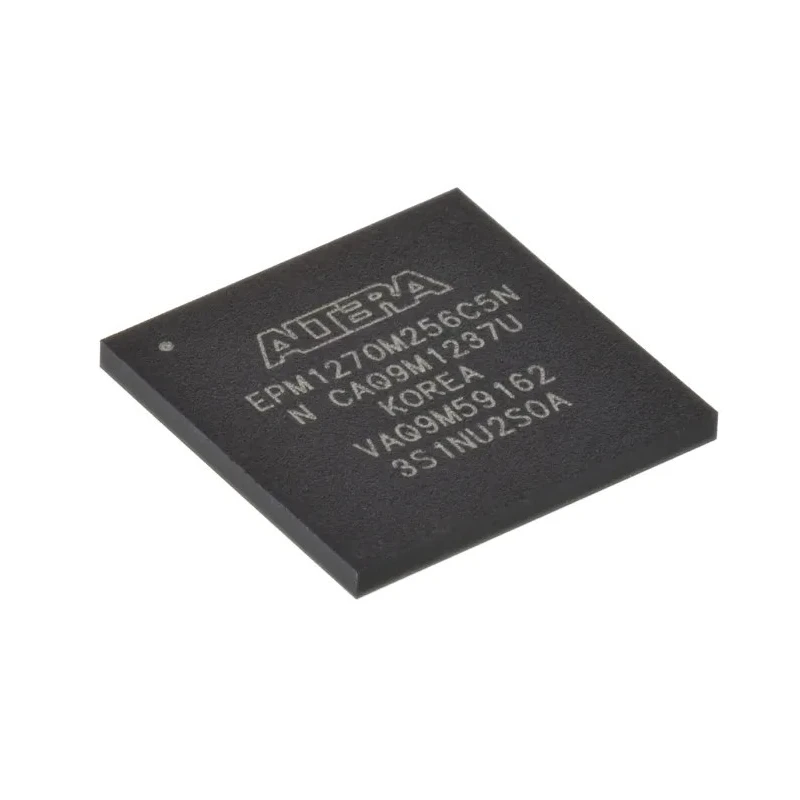

Altera Complex Programmable Logic Device MAX II 980 Cells, 212 I/O, 6.2 ns Propagation Delay, In System EPM1270M256C5N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Altera |
| Height | 1.05mm |
| Length | 11mm |
| Model | EPM1270M256C5N |
| Mount Type | Surface |
| Series | MAX II |
| Maximum Operating Temperature | 85°C |
| Package Type | MBGA |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 729-3776Brand: AlteraManufacturers Part No.: EPM1270M256C5N |
| Pin Count | 256 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time | 6.2ns |
| Maximum Operating Frequency | 304MHz |
| Number of Macro Cells | 980 |
| Number of User I/Os | 212 |
| Number of Logic Blocks/Elements | 1270 |
Key Features
- Part of the MAX II series offering advanced programmable logic capabilities.
- Features 980 macro cells and 1270 logic elements for complex circuit designs.
- Includes 212 user input/output pins for versatile interfacing.
- Maximum operating frequency of up to 304 MHz ensures high-speed performance.
- Built with a MBGA package type suitable for surface mounting.
- Operates within a voltage range of 3 to 3.6 volts for stable performance.
- Supports in system programmability, facilitating flexible deployment.
- Operating temperature range from 0°C to 85°C for reliable industrial use.
Product Description
Altera EPM1270M256C5N is a complex programmable logic device (CPLD) from the MAX II series designed for high-density logic applications. This device features 980 macro cells, 1270 logic elements, and 212 user input/output pins, making it suitable for a wide range of electronic design projects requiring programmability and speed.
The device supports in system programmability, enabling modifications without removal from the PCB. It operates at a maximum frequency of 304 MHz with a propagation delay of just 6.2 nanoseconds, ensuring efficient timing and fast operation.
Encased in a compact MBGA package, the EPM1270M256C5N is designed for surface mounting with pin count of 256 contacts. It functions reliably within supply voltages from 3V to 3.6V and an ambient temperature range of 0 to 85 degrees Celsius, ideal for industrial, telecommunications, and embedded system applications.
Additional features include individual output enable control to allow selective signal activation and compliance with RoHS environmental standards. The height and length of the device are 1.05 mm and 11 mm respectively, allowing integration into space-constrained hardware.
Part of MAX II programmable logic CPLD family with 980 macro cells and 1270 logic elements. Supports up to 212 user I/O pins for complex interfacing needs. Maximum propagation delay time of 6.2 nanoseconds ensures high performance.
In system programmability enables field updates and modifications. Surface mount MBGA package with 256 pins for compact PCB layouts. Operates from 3 V to 3.6 V supply voltage with individual output enable control. Operating temperature ranges from 0°C to 85°C providing industrial grade reliability.
Meets RoHS compliance for environmental safety. Maximum operating frequency of 304 MHz supports high-speed digital logic designs.
This Altera CPLD device is suited for various industrial, telecommunications, embedded system, and computing applications that demand flexible programmable logic solutions with robust performance and environmental compliance. Browse more in Programmable Logic ICs at EnvMart for advanced semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 304 MHz, ensuring high-speed performance for digital logic applications.
This device has a maximum propagation delay time of 6.2 nanoseconds, which supports efficient timing in circuit designs.
It supports up to 212 user input/output pins, allowing for versatile interfacing in complex circuit designs.
The device operates within a supply voltage range of 3 to 3.6 volts, providing stable performance for various applications.
The height of this model is 1.05 mm and the length is 11 mm, making it suitable for space-constrained hardware.
It comes in a MBGA package type, designed for surface mounting on PCBs.
The operating temperature range is from 0°C to 85°C, making it suitable for industrial applications.
This model features 1270 logic elements, allowing for complex circuit designs.
It contains 980 macro cells, providing ample resources for high-density logic applications.
Yes, the EPM1270M256C5N meets RoHS compliance standards for environmental safety.
It supports in-system programmability, allowing for modifications without needing to remove the device from the PCB.
This CPLD is suitable for a variety of applications, including industrial, telecommunications, and embedded systems.
