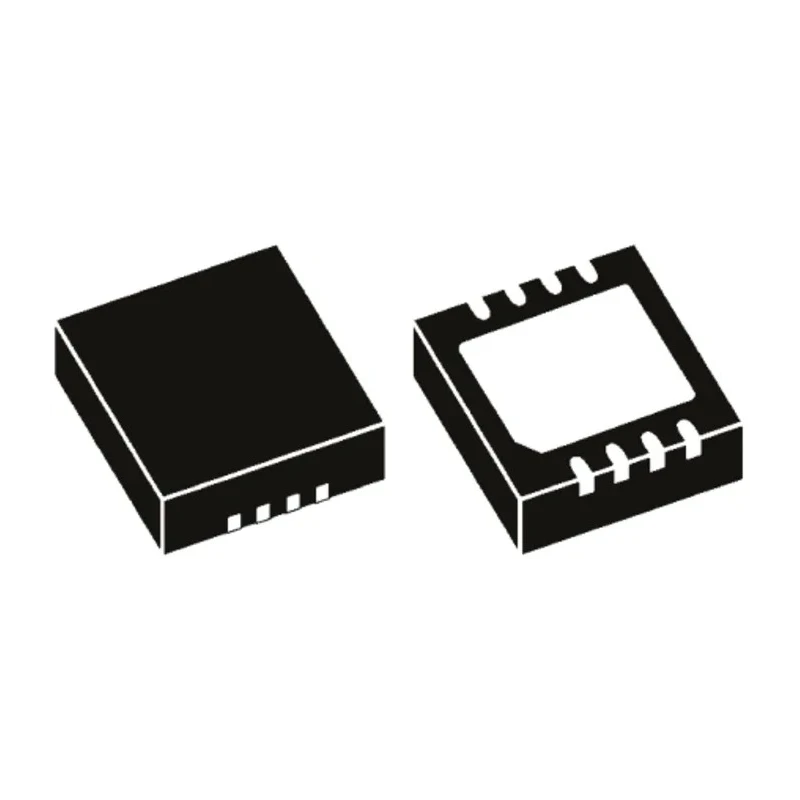

Microchip CAN Transceiver 1 Mbps, 8-Pin DFN MCP2562-E/MF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 3mm |
| Model | MCP2562-E/MF |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP2562 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Sub Type | CAN Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | ISO 11898-2, ISO 11898-5 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 70mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| Microchip MCP2562FD-E/MF, CAN Transceiver 8 Mbps, 8-Pin DFNBrand | Microchip |
Key Features
- This transceiver supports a maximum data rate of 1 Mbps.
- It features a low supply current of 70 mA while in operation.
- The package type is DFN with an 8-pin configuration for efficient PCB integration.
- Operating voltage ranges from 4.5V to 5.5V for compatibility with standard CAN systems.
- It offers protective electrostatic discharge (ESD) shielding for enhanced reliability.
- The device functions within an operating temperature range of -40°C to 125°C.
- Compact physical dimensions of 3 mm length, 3 mm width, and 950 μm height facilitate space-constrained designs.
- Complies with ISO 11898-2 and ISO 11898-5 communication standards.
Product Description
Microchip MCP2562-E/MF CAN Transceiver is a high-performance interface semiconductor designed for Controller Area Network (CAN) bus systems supporting data rates up to 1 Mbps. Packaged in a compact 8-pin DFN surface mount, this device is engineered for efficient PCB layout and reliable CAN communication.
Operating with a supply voltage between 4.5 and 5.5 volts and a supply current of 70 mA, it delivers low power consumption suitable for embedded applications. The device is built to operate across a wide temperature range from -40°C to 125°C, making it ideal for harsh industrial and automotive conditions.
Incorporating electrostatic discharge protection, the MCP2562-E/MF ensures robust performance and longevity in environments prone to electrical noise. Its conformance to ISO 11898-2 and ISO 11898-5 ensures seamless integration in standard CAN networks.
Physical dimensions are optimized for compactness with a 3 mm length, 3 mm width, and 950 µm package height, suitable for space-sensitive designs. This transceiver is designed as a single transceiver unit without additional automotive certification, focused on providing essential CAN bus interface functionality.
Supports 1 Mbps CAN bus communication speed. Surface mount package type DFN with 8 pins. Operating voltage between 4.5V to 5.5V. Operating temperature range from -40°C to 125°C. Includes ESD protection to enhance durability.
Compact dimensions: 3 mm x 3 mm x 0.95 mm. Single transceiver configuration. Compliance with ISO 11898-2 and ISO 11898-5 standards. Low supply current of 70 mA for efficient power use. Ideal for industrial, automotive, and embedded system applications.
Microchip products are known for reliability and performance in embedded control and communication applications. This CAN transceiver is well-suited for system designers looking for a cost-effective, space-saving transceiver that meets standard protocols.
Explore more Microchip semiconductor products at EnvMart and find comprehensive solutions for CAN bus networking in industrial and automotive fields.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 1 Mbps for CAN bus communication.
The operating voltage range for the MCP2562-E/MF is between 4.5V and 5.5V.
It has a supply current of 70 mA while in operation.
The dimensions are 3 mm in length, 3 mm in width, and 950 μm in height.
This unit operates within a temperature range of -40°C to 125°C.
It is packaged in a compact 8-pin DFN surface mount configuration.
It complies with ISO 11898-2 and ISO 11898-5 communication standards.
The MCP2562-E/MF is designed as a single transceiver unit.
This model supports surface mounting for efficient PCB integration.
It provides a CAN controller interface as per the specified standards.
It includes electrostatic discharge (ESD) protection for enhanced reliability.
The MCP2562-E/MF is manufactured in India.
