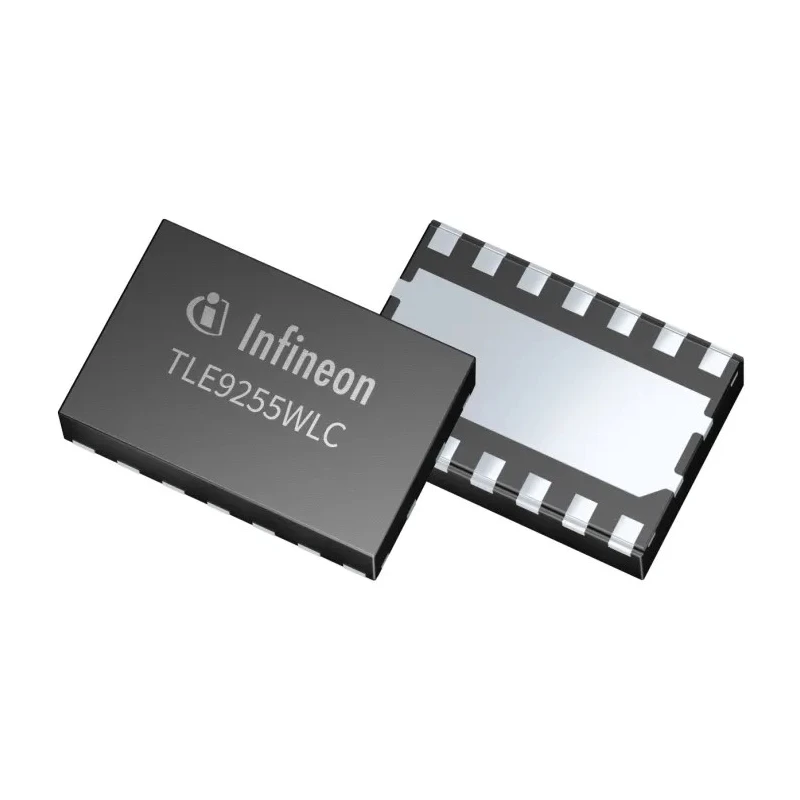

Infineon CAN Interface IC Transceiver 5 Mbps 14-Pin TSON Automotive AEC-Q100 TLE9255WLCXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | TLE9255WLCXUMA1 |
| Width | 4mm |
| Mount Type | PCB |
| Series | TLE9255W |
| Maximum Operating Temperature | 150°C |
| Package Type | TSON |
| Sub Type | Interface IC |
| Minimum Operating Temperature | -40°C |
| Interface Type | CAN |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 500μA |
| Maximum Data Rate | 5Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports maximum data rate of 5 Mbps for high-speed communication.
- Operates on supply voltage range 4.75 V to 5.25 V compatible with automotive standards.
- Single transceiver channel ideal for point-to-point CAN links.
- Low supply current of 500 μA minimizes power consumption.
- Power-down modes include normal, sleep, and standby for energy management.
- Compliant with ISO 11898-2 and IEC 61000-4-2 standards for CAN physical interface.
- Qualified to AEC-Q100 automotive standard for robust reliability.
- Wide operating temperature range from −40°C to 150°C for harsh environments.
Product Description
Infineon TLE9255WLCXUMA1 is a highly reliable CAN Interface IC Transceiver designed for automotive and industrial networking applications. It supports data rates up to 5 Mbps, providing fast and robust communication over Controller Area Network buses. This single-channel transceiver operates within the standard vehicular supply voltage range of 4.75 V to 5.25 V, making it fully compatible with typical automotive electrical systems. Its low quiescent supply current of 500 μA aids in reducing power consumption, particularly important for battery-powered telematics units and sensor interfaces.
The device supports multiple power-down modes including normal operation, sleep, and standby modes, thus facilitating efficient energy management within embedded systems. It complies with the ISO 11898-2 CAN physical layer signaling standard and electromagnetic compatibility per IEC 61000-4-2, ensuring interoperability and reliable performance in noisy environments.
This transceiver is qualified according to the stringent AEC-Q100 automotive standard, assuring its suitability for critical in-vehicle applications such as body control modules, gateway nodes linking multiple automotive networks, diagnostic testing equipment, and sensor interface boards. It is offered in a compact 14-pin Thin Small Outline No-lead (TSON) package optimized for surface-mount techniques on printed circuit boards.
With an operational temperature range extending from −40 °C up to 150 °C, the TLE9255WLCXUMA1 stands robust against harsh environmental conditions, making it an optimal solution for both automotive and industrial CAN bus implementations.
Supports a maximum data rate of 5 Mbps on CAN networks. Supply voltage range of 4.75 V to 5.25 V for automotive compatibility. Single transceiver for point-to-point CAN communication. Low power consumption with 500 μA supply current.
Energy-saving power-down modes: normal, sleep, and standby. Meets ISO 11898-2 and IEC 61000-4-2 electromagnetic standards. Automotive-grade quality certified by AEC-Q100. Operates in extreme temperature conditions from −40 °C to 150 °C.
Surface-mount 14-pin TSON package for compact PCB layout.
This product is widely applicable in automotive body control modules, telematics units, CAN gateways, sensor interfaces, and diagnostic testing systems, serving critical communication needs in automotive and industrial sectors.
Browse our extensive Electronics & Electricals Semiconductor category for dependable CAN interface and transceiver solutions suitable for demanding environments.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum data rate of 5 Mbps for high-speed communication over CAN networks.
The supply voltage range is from 4.75 V to 5.25 V, making it compatible with automotive electrical systems.
It has a low supply current of 500 μA, which helps minimize power consumption.
The transceiver supports normal, sleep, and standby power-down modes for efficient energy management.
It complies with ISO 11898-2 for CAN physical layer signaling and IEC 61000-4-2 for electromagnetic compatibility.
It is qualified to the AEC-Q100 automotive standard, ensuring its reliability for automotive applications.
The operating temperature range is from −40 °C to 150 °C, suitable for harsh environments.
It comes in a compact 14-pin Thin Small Outline No-lead (TSON) package optimized for surface-mount techniques.
This model includes a single transceiver channel for point-to-point CAN communication.
The height is 1.75 mm and the width is 4 mm, making it suitable for compact PCB layouts.
It is widely applicable in automotive body control modules, telematics units, CAN gateways, and sensor interfaces.
The length of the TLE9255WLCXUMA1 is 8.75 mm, which is part of its compact design.
