| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.5mm |
| Length | 2mm |
| Model | RB160VAM-60TR |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | RB160VAM-60 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A |
| Maximum Forward Voltage Vf | 670mV |
| Peak Reverse Recovery Time trr | 5.8ns |

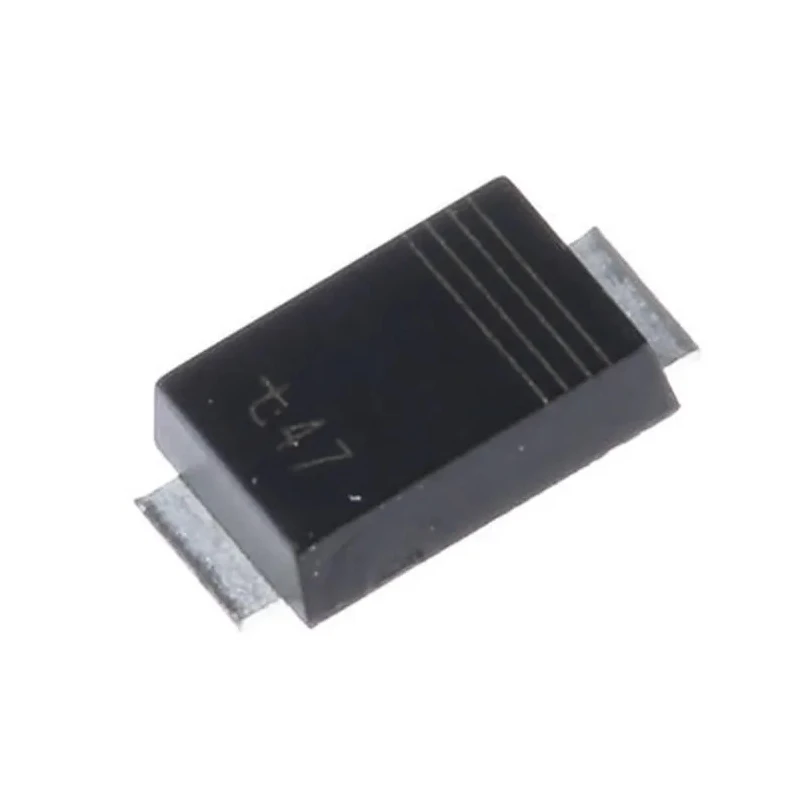

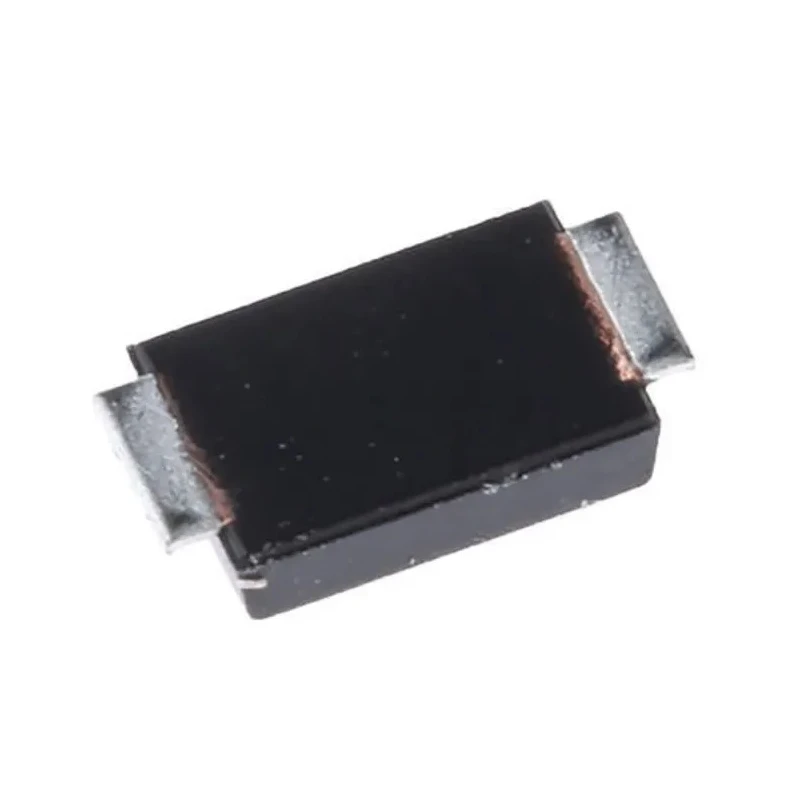

ROHM RB160VAM-60TR Schottky Barrier Diode is a surface mount diode designed for efficient rectification and switching in electronic circuits. Supplied in the compact SOD-323HE package, this diode features a continuous forward current capacity of 1 ampere and a peak reverse voltage of 60 volts, making it suitable for low-voltage high-efficiency applications.
This semiconductor component has a low forward voltage drop of 670 millivolts that reduces conduction losses and improves overall circuit efficiency. Its fast peak reverse recovery time of 5.8 nanoseconds aids in minimizing switching losses in power conversion and signal processing. The diode operates reliably over a broad temperature range from -55°C to 150°C, enabling use in various industrial, consumer electronics, and power supply systems.
The dimensions of 2 mm length, 1.4 mm width, and 0.5 mm height make it ideal for dense circuit board layouts requiring compact, surface-mount components. Rated for 3 ampere peak forward surge current, it withstands transient conditions typically encountered during power switching and startup.
ROHM’s RB160VAM-60TR series is a single diode device commonly utilized in power supply rectification, signal demodulation, voltage clamping, and protection circuits. It is a reliable choice for electronics manufacturers seeking a high-performance Schottky diode with proven quality and ROHM’s semiconductor expertise. This product is new and sourced from ROHM with Indian country of origin.
Compact SOD-323HE surface mount package for PCB assembly. Maximum continuous forward current of 1 ampere. Low forward voltage of 670 millivolts enhances efficiency. Wide operating temperature range from -55°C to 150°C. Fast peak reverse recovery time reduces switching losses.
Peak non-repetitive forward surge current rating of 3 amperes. Small dimensions support high-density circuit layouts. Single diode configuration for versatile electronic applications. Peak reverse current of 40 milliamperes and peak reverse voltage of 60 volts.
