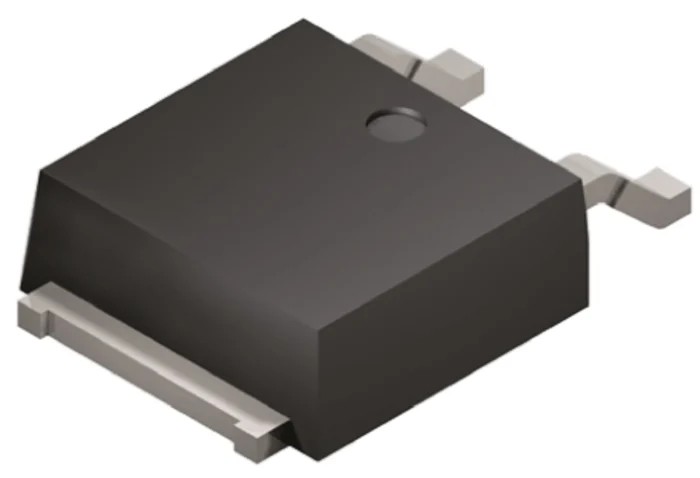

onsemi Schottky Barrier Diode 50 V 6 A Surface Mount TO-252 Package 3-Pin DPAK MBRD650CTT4G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Barrier Diode 50 V 6 A Surface Mount TO-252 Package 3-Pin DPAK MBRD650CTT4G

Name: onsemi Schottky Barrier Diode 50 V 6 A Surface Mount TO-252 Package 3-Pin DPAK MBRD650CTT4G
Brand: onsemi
SKU: 341491
Price: 1.03 USD
Availability: InStock



Category Schottky Barrier Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.38mm
Length	6.73mm
Model	MBRD650CTT4G
Width	6.22mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-252
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	6A
Peak Reverse Repetitive Voltage Vrrm	50V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.9V
Motorola 50V 6A, Dual Schottky Diode, 3-Pin D-PAK MBRD650CTBrand	Motorola

Key Features

Provides low forward voltage drop and fast switching for improved efficiency.
Package type TO-252 ensures compact mounting on PCBs.
Supports maximum continuous forward current of 6 A for reliable operation.
Operates reliably in temperature range from -65°C to 175°C.
Features a peak reverse repetitive voltage rating of 50 V.
Schottky diode configuration offers common cathode rectifier type for versatile applications.
Designed to automotive AEC-Q101 standards for enhanced reliability.
Suitable for surface mount assembly with epoxy moulded lightweight package weighing 11.7 mg.

Product Description

onsemi MBRD650CTT4G Schottky Barrier Diode is a high-performance 50 V, 6 A power rectifier designed for surface mount applications. Its TO-252 package with 3-pin DPAK form factor makes it ideal for use where size and weight are critical, such as in automotive, industrial, and power management circuits.

The diode employs the Schottky barrier principle using barrier metal technology to provide an optimal balance of forward voltage drop and reverse leakage current, delivering efficient low-voltage, high-frequency rectification. This makes it suitable for freewheeling and polarity protection functions in various electronic designs.

The device supports a maximum continuous forward current of 6 A and can withstand peak non-repetitive forward surge currents up to 75 A. It operates reliably across a wide temperature range from -65°C to 175°C, meeting stringent automotive AEC-Q101 standards to ensure durability in harsh environments.

Its epoxy moulded case offers stress protection and robustness, while the lightweight 11.7 mg design helps reduce overall system weight. The compact dimensions of 6.73 mm length, 6.22 mm width, and 2.38 mm height allow easy integration onto PCBs with automated assembly processes.

Provides low forward voltage drop and fast switching for improved efficiency. Package type TO-252 ensures compact mounting on PCBs. Supports maximum continuous forward current of 6 A for reliable operation. Operates reliably in temperature range from -65°C to 175°C.

Features a peak reverse repetitive voltage rating of 50 V. Schottky diode configuration offers common cathode rectifier type for versatile applications. Designed to automotive AEC-Q101 standards for enhanced reliability.

Suitable for surface mount assembly with epoxy moulded lightweight package weighing 11.7 mg. Peak non-repetitive surge current capability up to 75 A. Compact dimensions: 6.73 mm length, 6.22 mm width, and 2.38 mm height.

This diode is ideal for industrial, automotive, power supply, and electronic design applications requiring fast rectification and efficient power management. Explore more semiconductor products by onsemi with advanced features at EnvMart.
