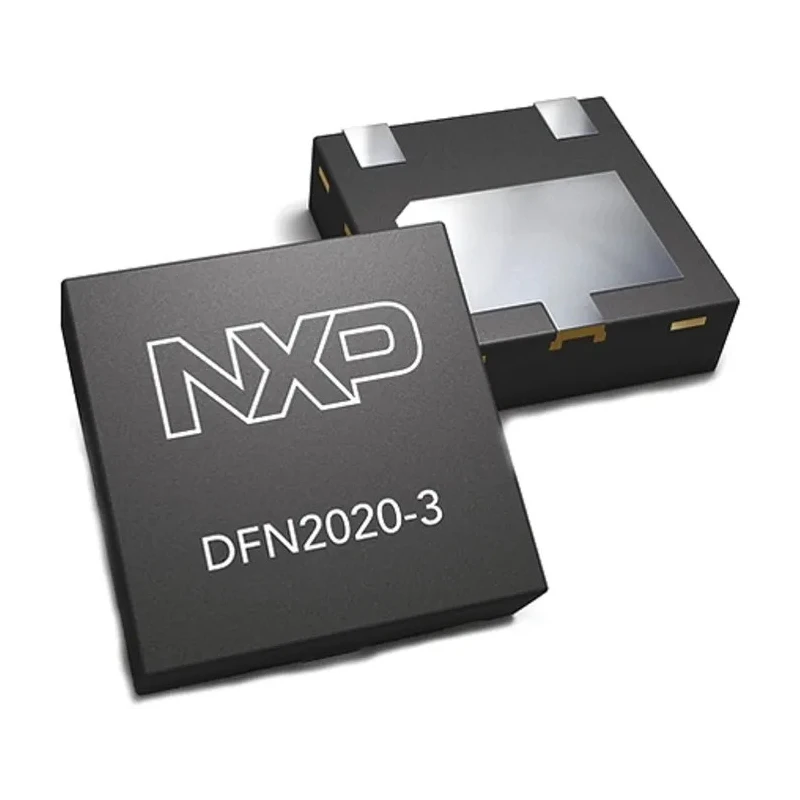

Nexperia Schottky Barrier Diode 30 V 2 A Surface Mount HUSON Package AEC-Q101 PMEG3020CPA,115

Nexperia PMEG3020CPA,115 is a Schottky Barrier Diode designed as a surface mount device in a compact HUSON package that measures 2.1 mm by 2.1 mm by 0.65 mm. It supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 30 V, making it suitable for power-sensitive electronic applications.

This diode offers a low forward voltage drop of 440 mV and a fast peak reverse recovery time of 50 ns, which contributes to high efficiency and low switching losses in power rectification and protection circuits.

The device supports a wide operating temperature range from -55°C to 150°C, complying with automobile industry standards such as AEC-Q101, confirming its suitability for automotive electronics and demanding environments.

Other important electrical characteristics include a peak non-repetitive forward surge current rating of 9 A and a low leakage current, which enhance its durability and reliability in transient conditions.

Typical applications include power rectification, voltage clamping, and freewheeling diodes in power supplies, battery chargers, and automotive electronic circuits in industrial, commercial, automotive, and consumer electronic sectors.

This diode features a 2 ampere maximum continuous forward current. It supports a peak reverse repetitive voltage of 30 volts. Packaged in a compact HUSON surface mount package measuring 2.1 mm length, 2.1 mm width, and 0.65 mm height.

It includes a common cathode diode configuration optimized for minimal switching losses. The device operates under a wide temperature range of -55°C to 150°C ensuring robust performance. It complies with automotive standard AEC-Q101 for automotive reliability.

Boasts a low maximum forward voltage of 440 mV which improves power efficiency. Features a peak reverse recovery time of 50 ns suitable for fast switching applications. With a peak non-repetitive forward surge current rating of 9 A, it supports transient overloads.

Designed with low leakage current for reduced power loss in circuits.
