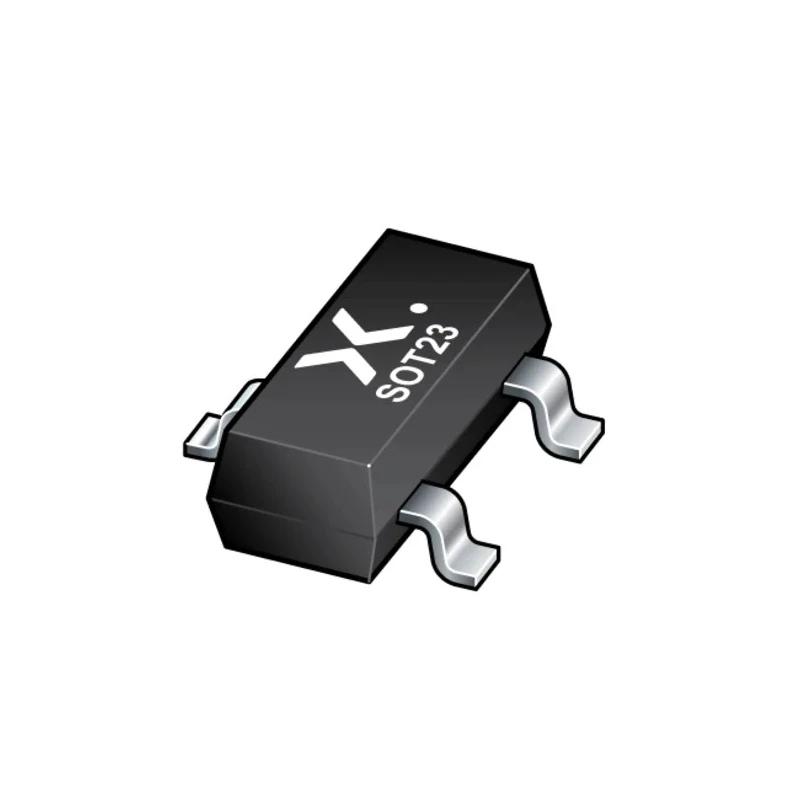

Nexperia Uni-Directional ESD Protection Diode 3-Pin SOT-23 PESD3V3F2UTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | PESD3V3F2UTR |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD3V3F2UT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 3.3V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.2V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Uni-directional diode designed for ESD protection up to 8kV (IEC 61000-4-2 standard).
- Maximum reverse stand-off voltage of 3.3 V ensures effective transient suppression.
- Extremely low capacitance of 0.56 pF supports high-speed data line protection.
- High peak pulse current capacity of 4 A protects against transient voltage spikes.
- Surface-mount SOT-23 package with compact dimensions of 2.9 mm length, 1.3 mm height, and 1 mm width.
- Wide operating temperature range from -65°C to 150°C supports harsh industrial environments.
- Compliance with automotive standard AEC-Q101 and IEC 61000-4-2 for quality and reliability.
Product Description
Nexperia PESD3V3F2UTR is a uni-directional ESD Protection Diode housed in a compact 3-Pin SOT-23 surface-mount package (TO-236AB). It is engineered to protect sensitive high-speed data lines and electronic devices from electrostatic discharges and transient voltage spikes.
This diode features a maximum reverse stand-off voltage of 3.3 V and a clamping voltage of 3.3 V at ITLP8 A, enabling it to clamp transient events effectively. Its ultra-low capacitance of 0.56 pF minimizes signal distortion, making it suitable for high-frequency applications.
The device supports ESD protection up to 8 kV as per IEC 61000-4-2 and ISO 10605 standards, ensuring robust defense against harsh electrostatic events. With a maximum peak pulse current of 4 A, it reliably safeguards electronics from sudden voltage spikes.
The diode functions reliably across a wide temperature range (-65°C to 150°C) and meets the automotive industry’s AEC-Q101 standard, making it ideal for automotive, industrial, telecommunications, and other demanding environments.
Its small form factor with dimensions 2.9 mm (L) x 1.3 mm (H) x 1 mm (W) allows for space-efficient integration on PCBs. The surface mount SOT-23 package is compatible with automated assembly processes, improving manufacturing productivity.
Uni-directional diode designed for ESD protection up to 8kV (IEC 61000-4-2 standard). Maximum reverse stand-off voltage of 3.3 V ensures effective transient suppression. Extremely low capacitance of 0.56 pF supports high-speed data line protection.
High peak pulse current capacity of 4 A protects against transient voltage spikes. Surface-mount SOT-23 package with compact dimensions of 2.9 mm length, 1.3 mm height, and 1 mm width. Wide operating temperature range from -65°C to 150°C supports harsh industrial environments.
Compliance with automotive standard AEC-Q101 and IEC 61000-4-2 for quality and reliability.
This Nexperia diode is widely used in industrial, automotive, telecommunications, and consumer electronics applications requiring robust ESD protection. It assists in enhancing product reliability and longevity by preventing damage caused by electrostatic shocks and voltage transients.
Explore related semiconductor components and discrete devices on EnvMart for comprehensive electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia PESD3V3F2UTR provides ESD protection up to 8 kV, compliant with IEC 61000-4-2 standards.
This model has a maximum reverse stand-off voltage of 3.3 V, ensuring effective transient suppression.
It features an extremely low capacitance of 0.56 pF, which supports high-speed data line protection.
The diode can handle a maximum peak pulse current of 4 A, protecting against transient voltage spikes.
The SOT-23 package has compact dimensions of 2.9 mm in length, 1.3 mm in height, and 1 mm in width.
It operates reliably within a wide temperature range from -65°C to 150°C, suitable for harsh environments.
The PESD3V3F2UTR complies with the automotive standard AEC-Q101, ensuring quality and reliability in automotive applications.
The clamping voltage is 3.3 V at ITLP8 A, allowing it to effectively clamp transient events.
This model features a pin count of 3, designed for surface mounting.
It meets the IEC 61000-4-2 and RoHS standards, ensuring compliance with industry regulations.
This is a uni-directional ESD protection diode, specifically designed for protecting sensitive electronic components.
The diode is manufactured in India, contributing to its quality and compliance with international standards.
