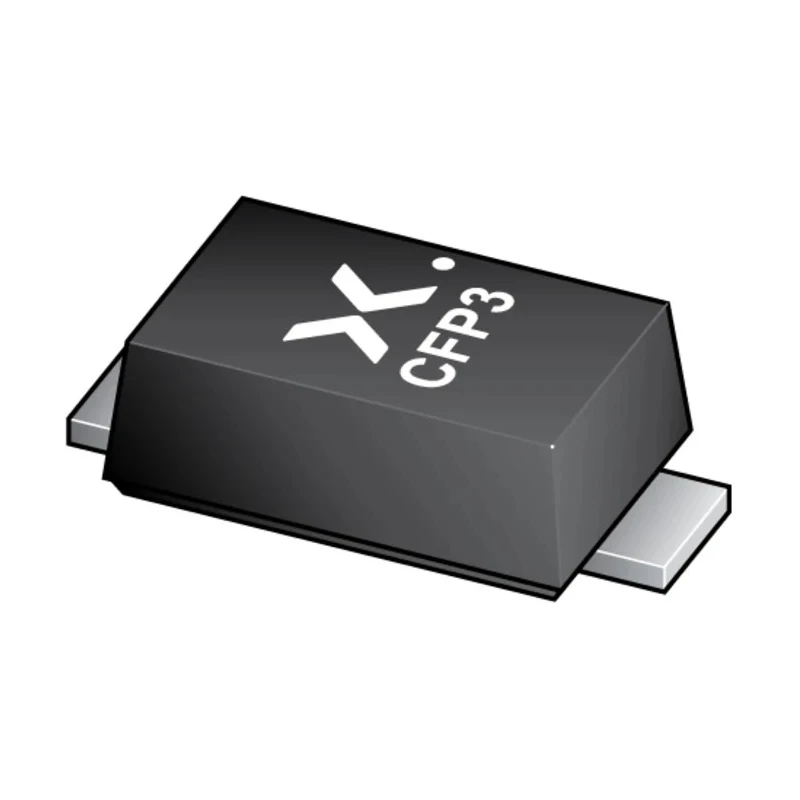

Nexperia 1-Element Uni-Directional ESD Protection Diode 400 W, 2-Pin SOD-12 PTVS43VS1UR,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PTVS43VS1UR,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PTVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-12 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 69.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 47.8V |
| Maximum Reverse Stand-off Voltage Vwm | 43V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Maximum Reverse Leakage Current | 100nA |
| Very low package height | 1 mm |
Key Features
- Designed for outstanding protection against transient over-voltage surges.
- Industry's smallest packages in the 400 W surge protection class ensure compact PCB mounting.
- Qualified to AEC-Q101 automotive standard for harsh environments.
- Extremely low reverse leakage current of 100 nA enhances device efficiency.
- Operates over a wide temperature range from -55°C to 150°C.
- Compact SOD-12 package with a low profile height of just 1.1 mm.
- Provides reliable power supply and industrial equipment protection.
- Unidirectional diode configuration ensures precise transient voltage clamping.
Product Description
Nexperia PTVS43VS1UR,115 is a 1-element uni-directional ESD protection diode delivering 400 W peak pulse power in a compact 2-pin SOD-12 package designed for surface mounting. This transient voltage suppressor (TVS) diode is engineered to protect sensitive electronic circuits from transient over-voltage events and electrostatic discharge.
The device features a peak pulse power dissipation (PPPM) of 400 W and a maximum reverse stand-off voltage (VRWM) of 43 V, with a minimum breakdown voltage (VBR) of 47.8 V and clamping voltage (VC) of 69.4 V. Its low reverse leakage current of 100 nA maximizes efficiency. The operating temperature range from -55°C to 150°C combined with AEC-Q101 automotive qualification ensures suitability for automotive, industrial, and power management applications.
This diode provides industry-leading surge protection in a small flat plastic SOD-12 package of dimensions 2.8 mm length, 1.9 mm width, and 1.1 mm height, making it ideal for PCB designs requiring compact and reliable protection components.
Applications include automotive power supply protection, industrial transient suppression, and general electronic circuit safeguarding against voltage spikes and electrostatic discharge.
Outstanding transient over-voltage protection with 400 W surge capacity. Compact SOD-12 surface mount package for design flexibility. AEC-Q101 qualification for automotive reliability. Low reverse leakage current minimizes power loss.
Wide operating temperature suitability from -55°C to 150°C. Unidirectional configuration for precise transient voltage control. Ideal for automotive, industrial, and power management applications. Explore Nexperia ESD Protection Diode products and related semiconductors in the Electronics & Electricals category on EnvMart for reliable surge protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Nexperia PTVS43VS1UR,115 is 400 W.
The maximum reverse stand-off voltage (VRWM) for this diode is 43 V.
The clamping voltage (VC) of this ESD protection diode is 69.4 V.
The SOD-12 package dimensions are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
This model operates over a wide temperature range from -55°C to 150°C.
It is qualified to the AEC-Q101 automotive standard, ensuring reliability in harsh environments.
The maximum reverse leakage current for this diode is 100 nA.
This diode features a uni-directional configuration, allowing for precise transient voltage clamping.
This model has a pin count of 2.
It is suitable for automotive power supply protection, industrial transient suppression, and general electronic circuit safeguarding against voltage spikes and electrostatic discharge.
The PTVS43VS1UR,115 is designed for surface mounting.
The country of origin for this diode is India.
