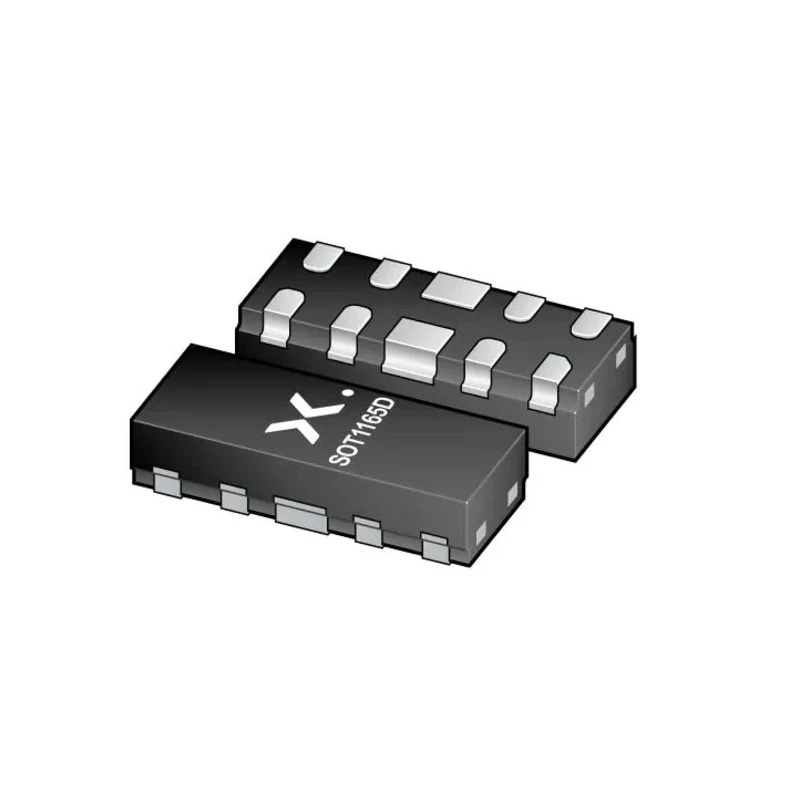

Nexperia Uni-Directional ESD Protection Diode DFN2510D PESD4USB3U-TTS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TTS |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | PESD4USB3U-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Uni-directional protection for USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI, and DisplayPort interfaces.
- Low line capacitance of 0.5 pF per channel ensures signal integrity.
- Maximum peak pulse current rating of 7A for reliable clamping performance.
- Supports operating temperature range from -65°C to 150°C for harsh environments.
- Compact DFN2510D surface-mount package measuring 2.5mm x 0.75mm x 1mm.
- Automotive qualified to AEC-Q101 standard for use in vehicle infotainment and camera systems.
- Compliant with IEC 61000-4-2 standard for ESD protection.
- Features matched 0.5mm trace spacing and side-wettable flanks for improved PCB assembly.
Product Description
Nexperia PESD4USB3U-TTS Uni-Directional ESD Protection Diode DFN2510D is engineered to protect sensitive high-speed data interfaces from electrostatic discharge (ESD) events, supporting SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, and eSATA lines.
This device features an extremely low line capacitance of 0.5 pF for each channel, which minimizes signal distortion and maintains data integrity in high-frequency applications. The diode is rated for a maximum peak pulse current of 7A and clamps voltage at 3.5V, providing robust protection against transient voltage spikes.
Designed for surface-mount applications, the compact DFN2510D package measures 2.5mm in length, 0.75mm width, and 1mm height, allowing high-density PCB layouts. It operates reliably across a wide temperature range from -65°C to 150°C, suitable for harsh industrial and automotive environments.
The device complies with IEC 61000-4-2 standards for ESD protection and meets the automotive grade AEC-Q101 standard, making it well-suited for automotive infotainment systems, A/V monitors, display modules, and camera applications. Side-wettable flanks and 0.5 mm trace spacing facilitate efficient PCB assembly and design flexibility.
Applications include USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, HDBaseT, eSATA, LVDS, and Serializer/Deserializer (SerDes) interfaces such as Gigabit Multimedia Serial Link (GMSL) and FPD-Link. This diode is optimized for system-level ESD protection across a broad range of electronic devices.
Uni-directional ESD protection for high-speed interfaces. Low capacitance and snap-back characteristics ensure signal integrity. Automotive-grade AEC-Q101 compliance. Compatible with USB 2.0, USB 3.2, HDMI, DisplayPort, and eSATA.
Compact surface-mount DFN2510D package. Wide operating temperature range from -65°C to 150°C. Explore more semiconductor devices and ESD protection components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current rating of this model is 7A, which provides reliable clamping performance during ESD events.
It operates reliably across a wide temperature range from -65°C to 150°C, making it suitable for harsh environments.
The DFN2510D package measures 2.5mm in length, 0.75mm in width, and 1mm in height, allowing for high-density PCB layouts.
This diode complies with IEC 61000-4-2 standards for ESD protection and meets the automotive grade AEC-Q101 standard.
It is designed to protect sensitive high-speed data interfaces including USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, and DisplayPort.
The clamping voltage of this model is 3.5V, providing effective protection against transient voltage spikes.
The line capacitance is extremely low at 0.5 pF per channel, which helps maintain signal integrity in high-frequency applications.
This diode is designed for surface-mount applications, facilitating efficient PCB assembly.
It is suitable for automotive infotainment systems, A/V monitors, display modules, and camera applications.
The maximum reverse stand-off voltage is 3.3V, ensuring it operates effectively within specified limits.
The minimum breakdown voltage for this model is 6V, providing a threshold for ESD protection.
The diode features matched 0.5mm trace spacing and side-wettable flanks, which improve PCB assembly efficiency and design flexibility.
