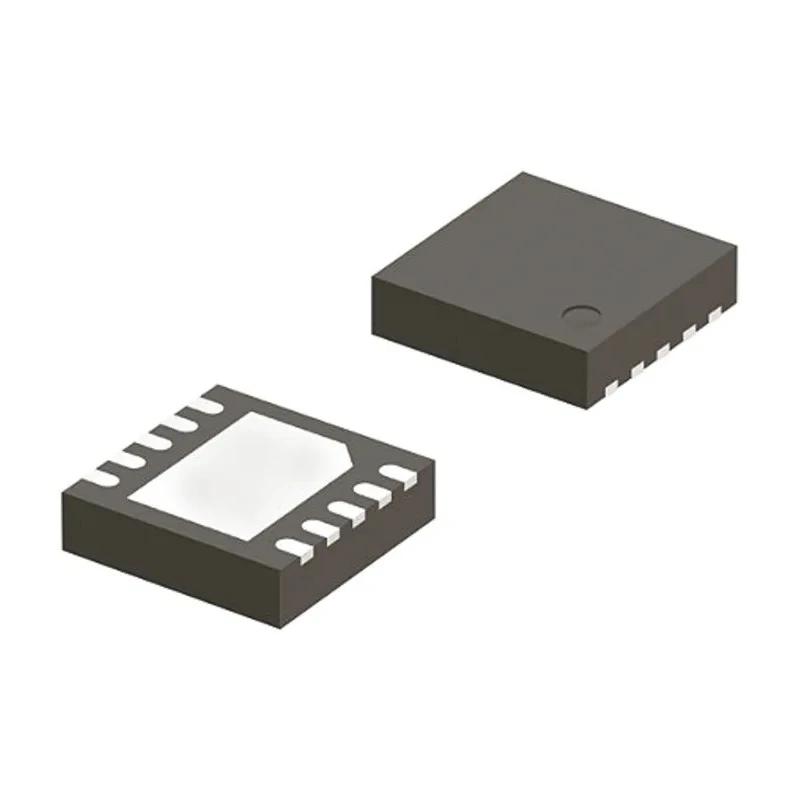

onsemi 4-Element Uni-Directional ESD Protection Diode, 10-Pin UDFN ESD8104MUTAG

onsemi ESD8104MUTAG is a 4-element uni-directional ESD Protection Diode engineered to safeguard sensitive electronic circuits from electrostatic discharge events and transient voltage surges. Its common anode diode configuration and 10-pin UDFN surface-mount package make it suitable for compact electronic designs and high density PCBs.

This diode features a minimum breakdown voltage of 4V and maximum reverse stand-off voltage of 3.3V, activating precisely to clamp voltage surges with a maximum clamping voltage of 11.4V. With a peak pulse current capability of 16A, it effectively mitigates high-energy transients, protecting circuit components from damage.

Operating reliably from -55°C to 125°C, the diode meets stringent automotive standard AEC-Q101, signifying suitability for automotive and industrial applications requiring robust protection under varying environmental conditions. Its small dimensions of 2.5 mm length, 1 mm width, and 0.5 mm height enable integration in space-constrained designs.

The device ensures minimal leakage current at a maximum of 1 microampere enhancing circuit efficiency and reducing power loss. It is commonly deployed in industrial electronics, telecommunications, automotive electronics, and consumer devices to prevent electrostatic discharge damage and improve product durability.

This diode utilizes a common anode diode configuration for efficient circuit protection. Features uni-directional direction type ensuring precise clamping of voltage spikes. Has a minimum breakdown voltage of 4 volts and maximum reverse stand-off voltage of 3.3 volts for selective activation.

Equipped with 10 pins in a compact UDFN surface mount package facilitating easy PCB integration. Offers a maximum peak pulse current rating of 16 amperes for handling transient surges effectively. Operates reliably across a wide temperature range from -55°C to 125°C for harsh environmental conditions.

Sized at 2.5 mm length, 1 mm width and 0.5 mm height to suit dense PCB layouts. Exhibits a clamping voltage of 11.4 volts for controlling voltage spikes safely. Provides ESD protection per automotive standard AEC-Q101 ensuring high quality and reliability.

Maximum reverse leakage current is limited to 1 microampere minimizing leakage losses in circuits.

EnvMart offers a wide selection of semiconductor components designed for industrial, automotive, telecommunication, and consumer electronics applications. This onsemi diode model provides reliable ESD and transient voltage surge protection, complementing diverse circuit protection needs.
