| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.07mm |
| Length | 1.8mm |
| Model | ESDA8V2-1J |
| Width | 1.45mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 20V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 8.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25A |
| Maximum Reverse Leakage Current | 500nA |

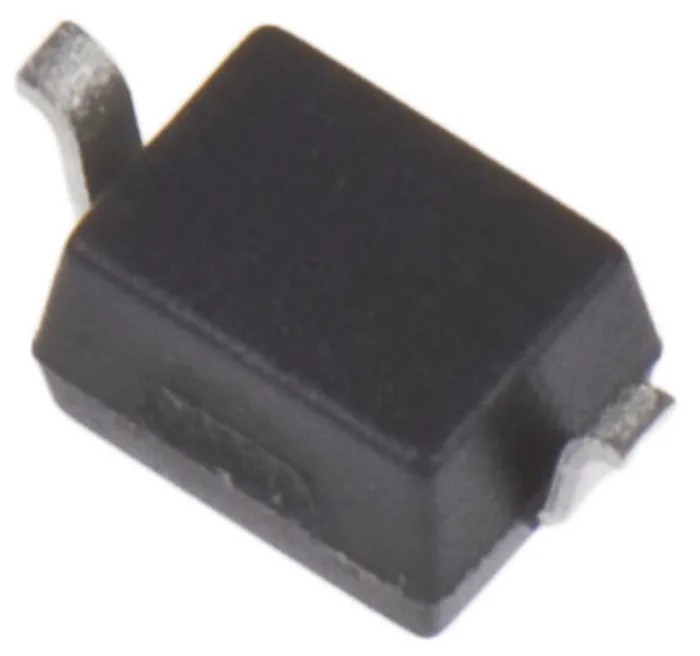

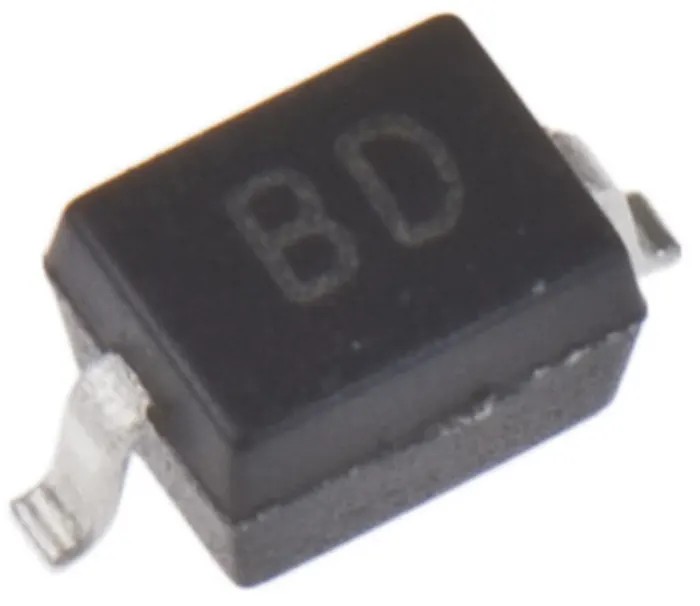

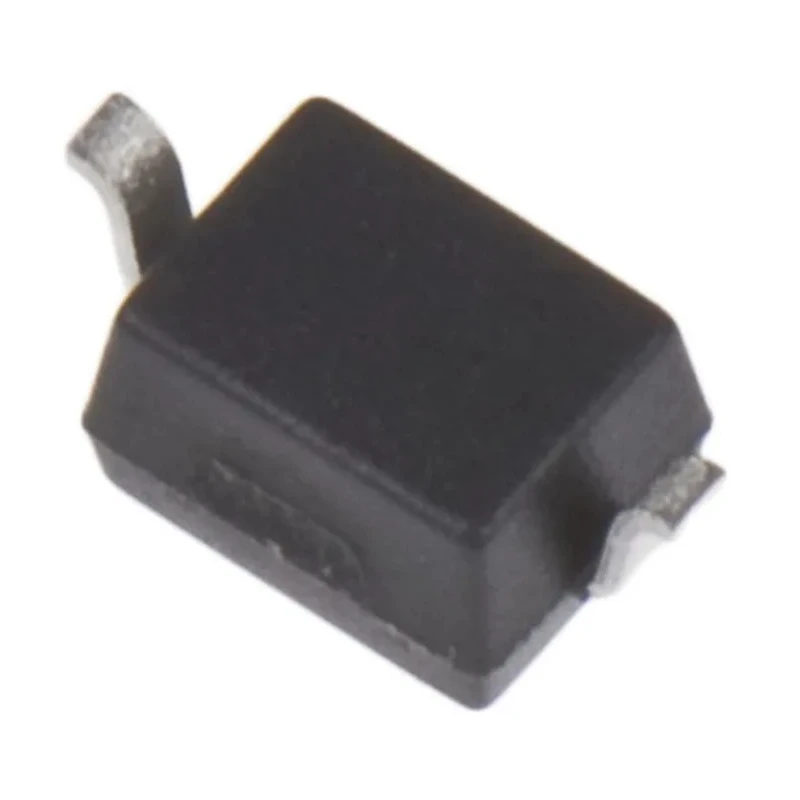

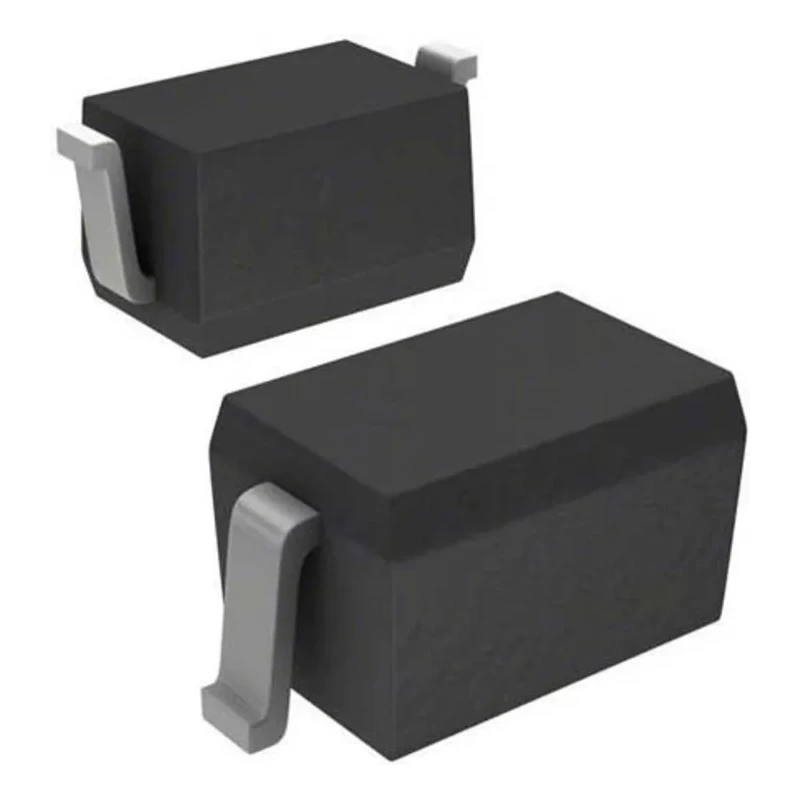

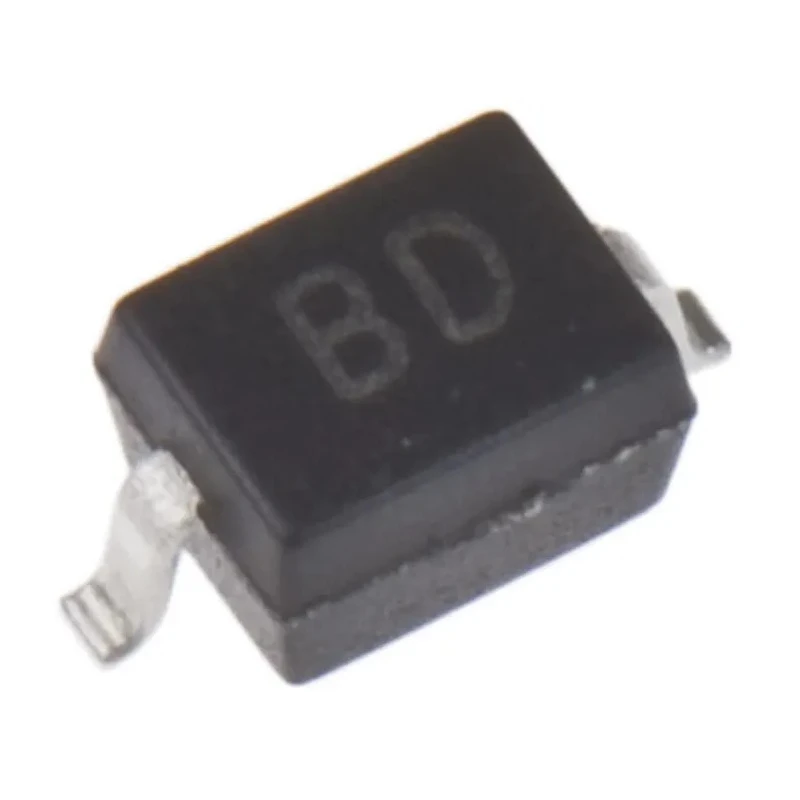

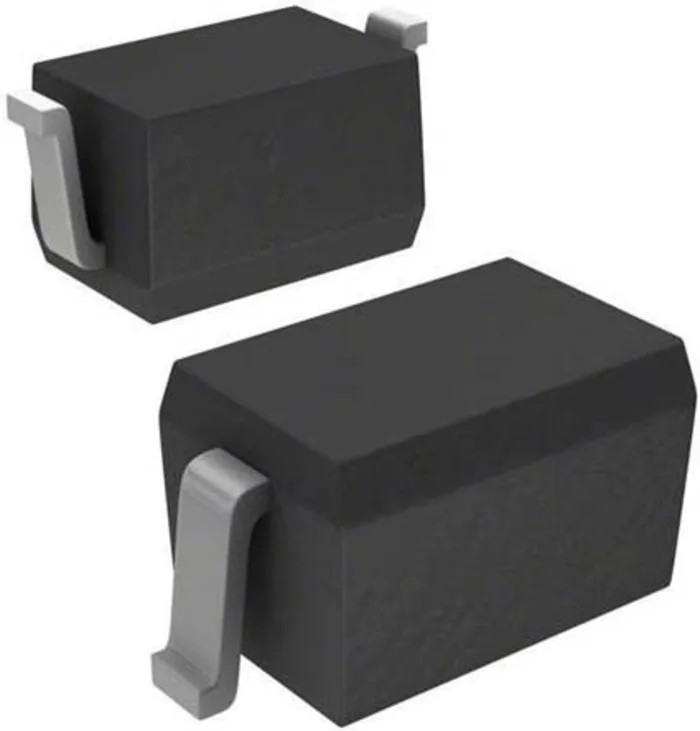

STMicroelectronics ESDA8V2-1J is a 1-element uni-directional electrostatic discharge protection diode designed to safeguard sensitive electronics from ESD events. This device features a compact surface-mount SOD-323 package ideal for modern PCB designs requiring minimal footprint.
With a peak pulse power dissipation rating of 500 W and a clamping voltage of 20 V, the diode effectively suppresses transient voltage spikes, protecting downstream components from damage.
Its minimum breakdown voltage of 8.2 V and maximum reverse stand-off voltage of 5 V provide reliable voltage clamping during electrostatic events. The maximum pulse current capability reaches 25 A, supporting high surge currents encountered in ESD scenarios.
The diode operates reliably across a wide temperature range from -40°C to 125°C, ensuring performance in harsh industrial, consumer electronics, and automotive environments. Leakage current is minimal at a maximum of 500 nA, enabling low standby power consumption and enhancing system efficiency.
Measuring only 1.8 mm in length, 1.45 mm in width, and 1.07 mm in height, the SOD-323 package facilitates flexible board layouts and dense component placement.
This uni-directional ESD protection diode is suitable for use in industrial electronics, communication devices, control systems, and automotive electronics requiring robust and compact transient protection solutions.
Single-element uni-directional diode designed for ESD protection. Utilizes surface mount SOD-323 package for compact design. Minimum breakdown voltage of 8.2 V ensures effective clamp operation. Maximum reverse stand-off voltage of 5 V for stable performance.
Capable of handling peak pulse current up to 25 A. Wide operating temperature range of -40°C to 125°C. Maximum reverse leakage current at 500 nA to minimize power loss. Compact dimensions: 1.8 mm x 1.45 mm x 1.07 mm. Test current rating of 1 mA for quality assurance.
This product is categorized under ESD Protection Diodes, offering reliable transient voltage suppression for delicate semiconductor circuits. Explore additional STMicroelectronics components and ESD protection solutions in EnvMart's extensive catalogue to find compatible electronic components for your design and manufacturing needs.
