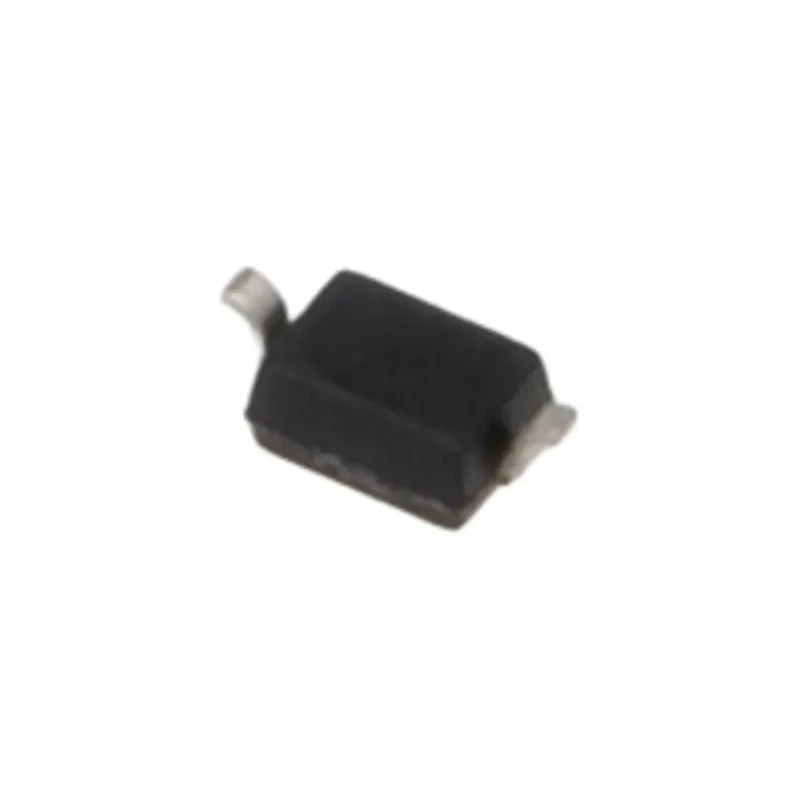

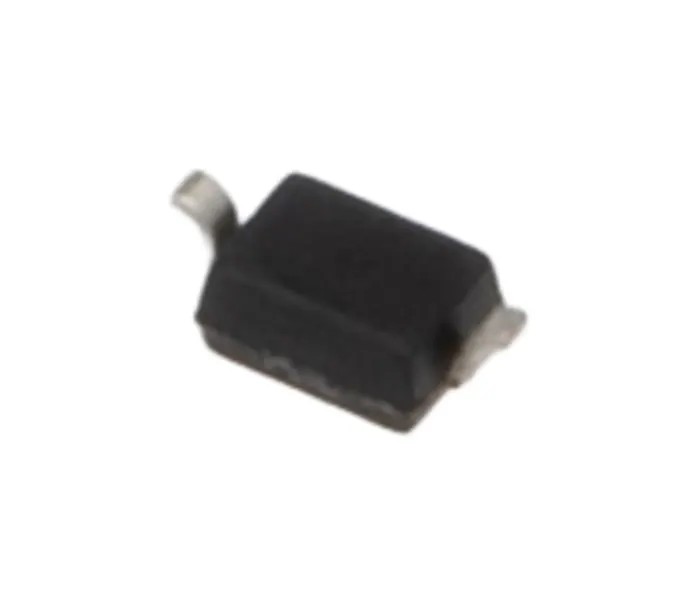

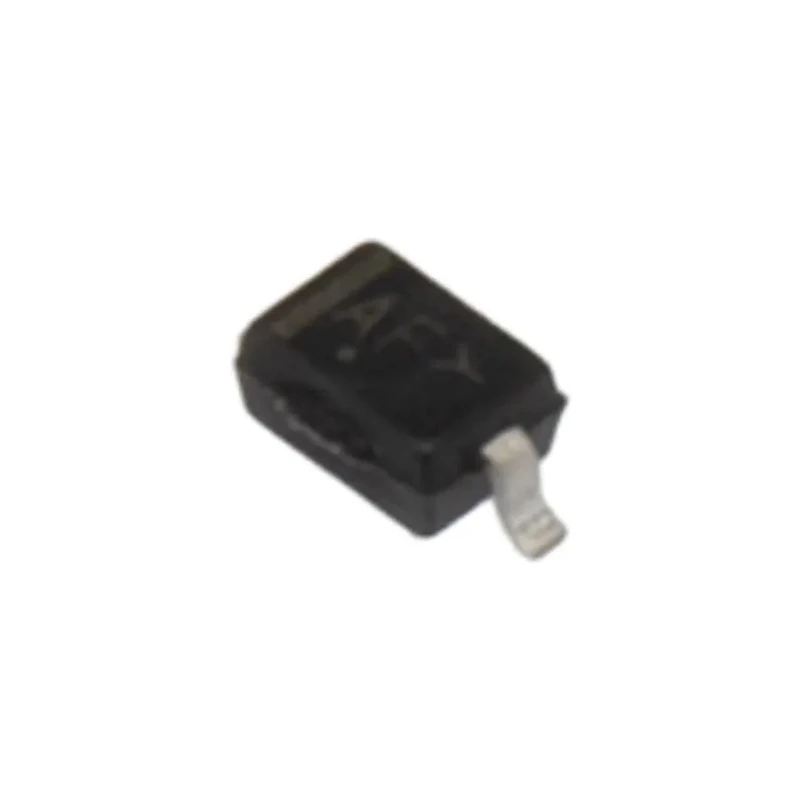

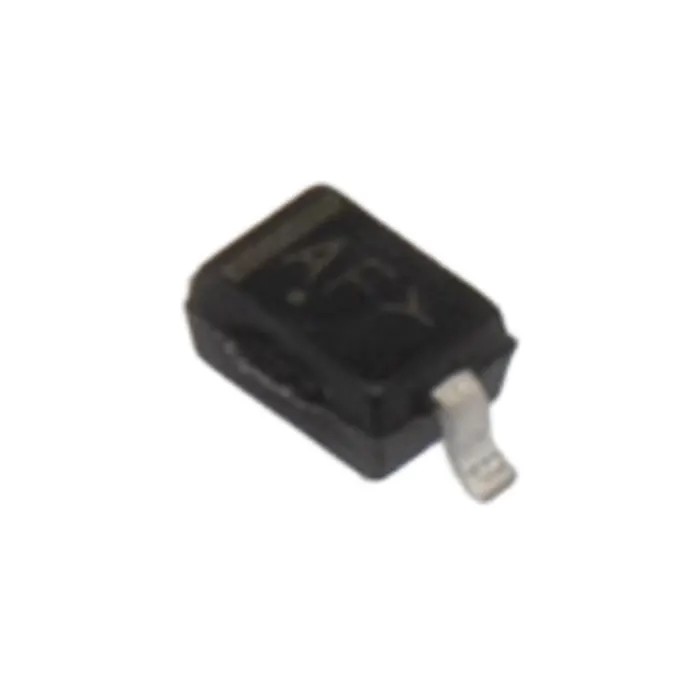

onsemi ESD Protection Diode Uni-Directional 1 Element 150 mW SOD-323 Package ESD7351HT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 1.8mm |
| Model | ESD7351HT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | ESD7351 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 150mW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This diode has a single element configuration ideal for sensitive component protection.
- With a stand-off voltage of 3.3 V and breakdown voltage of 5 V, it resists voltage spikes effectively.
- Low leakage current of 50 nA and fast response time assure high reliability in critical circuits.
- It supports peak pulse current up to 3 A and clamping voltage of 10 V for surge absorption.
- Operating temperature ranges from -55°C to 150°C, suitable for harsh environments.
- Low capacitance design makes it suitable for USB 2.0 and antenna line protection.
- Automotive standard AEC-Q101 certified for robustness in automotive applications.
- Compact dimensions of 1.8 mm length, 1.35 mm width, and 0.9 mm height enable dense PCB layouts.
Product Description
The onsemi ESD7351HT1G ESD Protection Diode is a uni-directional, single-element device designed to guard sensitive semiconductor components against electrostatic discharge events. Housed in a compact SOD-323 surface mount package, this diode provides excellent clamping capability, low leakage current, and ultra-low capacitance, making it highly suitable for high-frequency applications including USB 2.0 high-speed interfaces and antenna lines.
This diode delivers a peak pulse power dissipation of 150 mW and can safely handle peak pulse currents up to 3 A. Its minimum breakdown voltage is rated at 5 V with a standoff voltage of 3.3 V, ensuring effective transient suppression. Clamping voltage is optimized at 10 V to protect downstream components without introducing undue stress.
Operating temperature range extends from -55°C to a maximum of 150°C, allowing usage in both industrial and automotive environments. The product fulfills the AEC-Q101 automotive standard, confirming its reliability under tough conditions.
With physical dimensions of 1.8 mm length, 1.35 mm width, and 0.9 mm height, this diode facilitates space-saving PCB designs. The low maximum reverse leakage current of 50 nA also contributes to energy efficiency in sensitive circuits.
This diode offers single-element uni-directional ESD protection. Peak pulse power dissipation of 150 mW supports transient voltage spikes. Low leakage current and fast response time protect delicate semiconductor devices.
Compact SOD-323 surface mount package enables high-density PCB layouts. Automotive grade with AEC-Q101 certification ensures quality and reliability.
Suitable for electronic component protection in industrial, automotive, telecommunication, and consumer electronics applications. This diode is ideal for designers requiring efficient ESD protection with minimal board space consumption.
Explore the extensive collection of semiconductor components at EnvMart for advanced electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stand-off voltage of this diode is 3.3 V, which helps it resist voltage spikes effectively.
It can handle a maximum peak pulse current of 3 A, ensuring robust performance during transient events.
The dimensions of this diode are 1.8 mm in length, 1.35 mm in width, and 0.9 mm in height, allowing for compact PCB layouts.
The clamping voltage is optimized at 10 V, which protects downstream components from excessive voltage.
It operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The minimum breakdown voltage is rated at 5 V, ensuring effective transient suppression.
The maximum reverse leakage current is 50 nA, contributing to energy efficiency in sensitive circuits.
This diode is housed in a SOD-323 surface mount package, suitable for high-density PCB designs.
Yes, it is certified to the AEC-Q101 automotive standard, confirming its reliability in automotive applications.
The peak pulse power dissipation is 150 mW, which supports transient voltage spikes effectively.
It features a single-element uni-directional configuration, designed for effective ESD protection.
This diode is suitable for electronic component protection in industrial, automotive, telecommunication, and consumer electronics applications.
