Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD24V-QBZ

Free Delivery in India | Lowest Global Shipping Charges

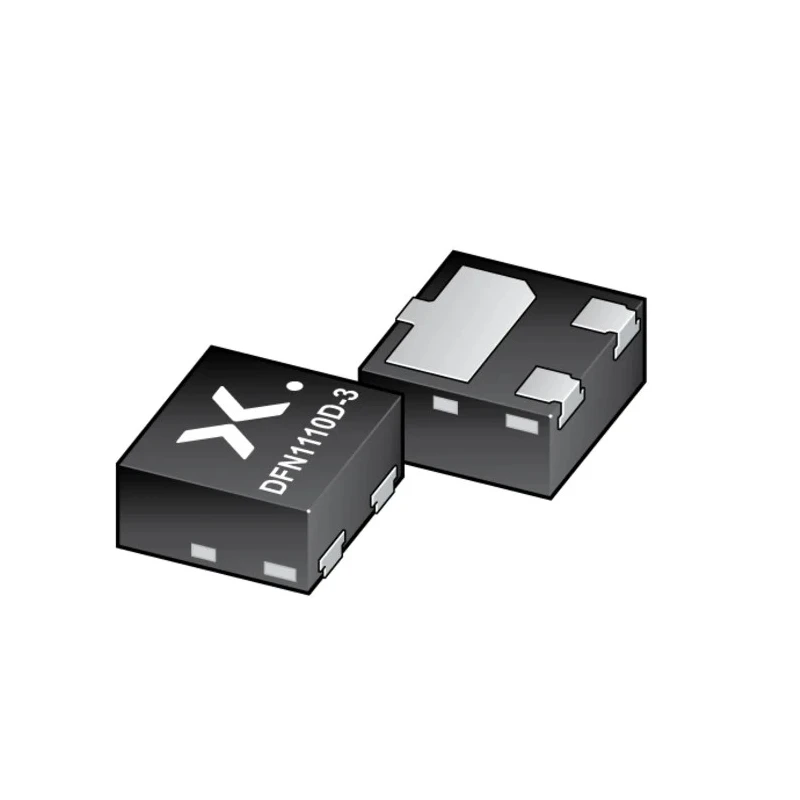

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD24V-QBZ

Name: Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1110D-3 PESD2CANFD24V-QBZ
Brand: Nexperia
SKU: 405495
Price: 0.13 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	1.1mm
Model	PESD2CANFD24V-QBZ
Width	0.48mm
Mount Type	Surface
Series	PESD2CANFD24V-QB
Maximum Operating Temperature	150°C
Package Type	DFN1110D-3
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, IEC 61000-4-2
Pin Count	3
Clamping Voltage VC	42V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	25.5V
Maximum Reverse Stand-off Voltage Vwm	24V
Maximum Peak Pulse Current Ippm	1.9A
Maximum Reverse Leakage Current	50nA

Key Features

Bi-Directional operation type designed to protect in-vehicle network bus lines.
Minimum breakdown voltage of 25.5 V ensures robust voltage handling.
Surface mount device in ultra-small DFN1110D-3 package with side wettable flanks.
Maximum reverse standoff voltage rating of 24 V for reliable clamping.
Clamping voltage of 42 V protects sensitive circuits during ESD events.
Supports maximum peak pulse current of 1.9 A for transient suppression.
Wide operating temperature range from -65°C to 150°C suited for automotive environments.
Low capacitance of 6 pF minimizes impact on signal integrity.

Product Description

Nexperia PESD2CANFD24V-QBZ is a bi-directional ESD protection diode housed in a compact 3-pin DFN1110D-3 package. It is engineered to safeguard automotive in-vehicle network bus lines and sensitive electronic equipment from electrostatic discharge and transient voltage spikes. This device features a minimum breakdown voltage of 25.5 V, a maximum reverse standoff voltage of 24 V, and a clamping voltage of 42 V at peak pulse current, providing robust protection against ESD events up to 23 kV compliant with IEC 61000-4-2 testing standards.

The diode supports up to 1.9 A peak pulse current and has an ultra-low capacitance of 6 pF, which reduces signal distortion and maintains data integrity in high-speed automotive communication buses. Its operating temperature range from -65°C to +150°C, combined with its automotive AEC-Q101 qualification, ensures reliable performance in harsh automotive and industrial environments.

The surface mount DFN1110D-3 package features side wettable flanks, enabling versatile PCB assembly and soldering reliability. Applications include automotive network buses, industrial control systems, and other sensitive electronics requiring surge and ESD protection compliant with stringent industry standards.

This device conforms to RoHS environmental directives and the IEC 61000-4-2 ESD immunity standard. Its compact form factor and high level of protection make it ideal for integration in manufacturing, automotive, and electronic product design projects demanding robust ESD defense.

Bi-Directional ESD Protection Diode with 3-pin DFN1110D-3 package. 25.5 V minimum breakdown voltage and 24 V maximum reverse standoff voltage. Clamping voltage rated at 42 V for effective transient voltage suppression. Supports maximum peak pulse current of 1.9 A.

Low capacitance of 6 pF suitable for high-speed data lines. Wide operating temperature range: -65°C to 150°C. AEC-Q101 qualified for automotive grade reliability. Complies with RoHS and IEC 61000-4-2 standards. Browse EnvMart’s extensive semiconductor catalog for additional ESD protection and diode solutions to meet all your electronic design requirements.
