| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1.02mm |
| Model | PESD5V0X1BCAL,315 |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Interfaces | Ethernet |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 8.1V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 1.8A |
| Maximum Reverse Leakage Current | 10nA |

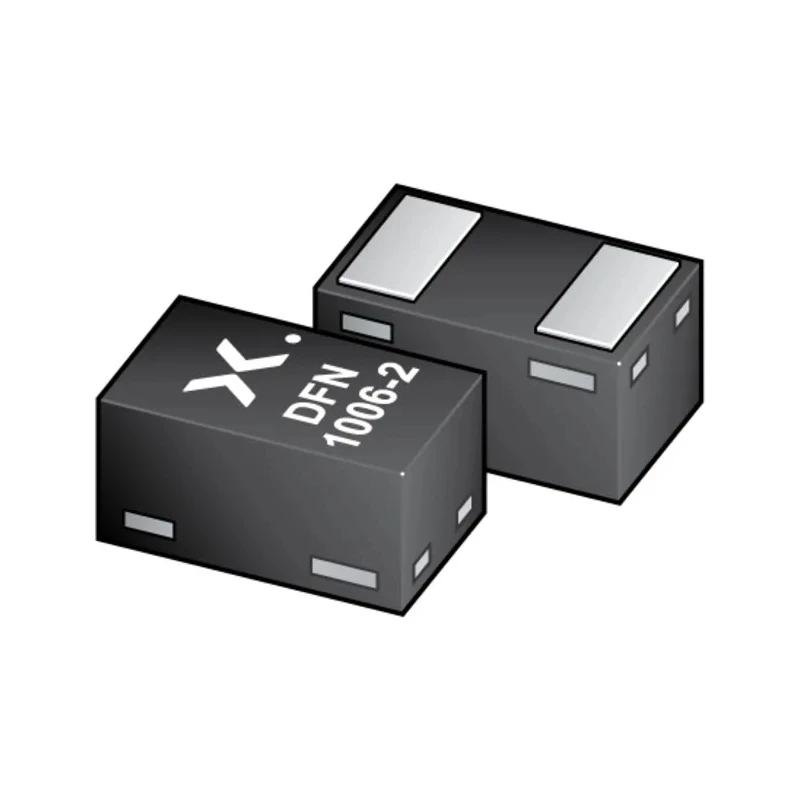

Nexperia PESD5V0X1BCAL,315 is a 2-element bi-directional ESD protection diode in a compact 2-pin DFN package, designed for surface mount applications. It features ultra-low capacitance of 0.85 pF, making it ideal for protecting high-speed data lines from electrostatic discharge and other transient voltages. The diode operates at a maximum reverse stand-off voltage of 5.5 V with a maximum peak pulse current rating of 1.8 A, ensuring effective transient suppression.
With a clamping voltage of 17 V and ultra low leakage current of 10 nA, this device is highly efficient while maintaining low power loss. The Nexperia diode is compliant with the automotive standard AEC-Q101, with operating temperature range from -55°C to 150°C, enabling usage in severe industrial and automotive environments.
The small footpring (1.02 mm x 0.62 mm x 0.47 mm) allows for space-saving PCB designs, suitable for modern telecommunications, computing, and portable electronic devices that require robust ESD protection.
Its bidirectional dual-element configuration protects one signal line effectively, making it well-suited for interfaces such as 10/100/1000 Mbit/s Ethernet, USB, HDMI, and FireWire. The device safeguards sensitive components in computers, audio/video equipment, and communication systems against ESD and transient voltage damage.
Bidirectional ESD protection of one signal line. Extremely low capacitance: 0.85 pF. Low clamping voltage of 17 V for effective transient suppression. Low leakage current maximizes energy efficiency. Small, leadless DFN package for space-saving mounting.
Automotive grade AEC-Q101 qualified for reliable performance. Operating temperature range: -55°C to 150°C. Supports high-speed data interfaces and communication systems. Dual-element chip configuration enhances protection.
Ideal for industrial, automotive, and consumer electronics applications.
Due to its robust design and small form factor, the Nexperia PESD5V0X1BCAL,315 diode is a preferred choice in industrial, laboratory, automotive, and electronic manufacturing sectors requiring high reliability and compact ESD protection solutions. Explore more in the EnvMart Semiconductor ESD Protection Diode category for similar high-performance components from Nexperia and other leading brands.
