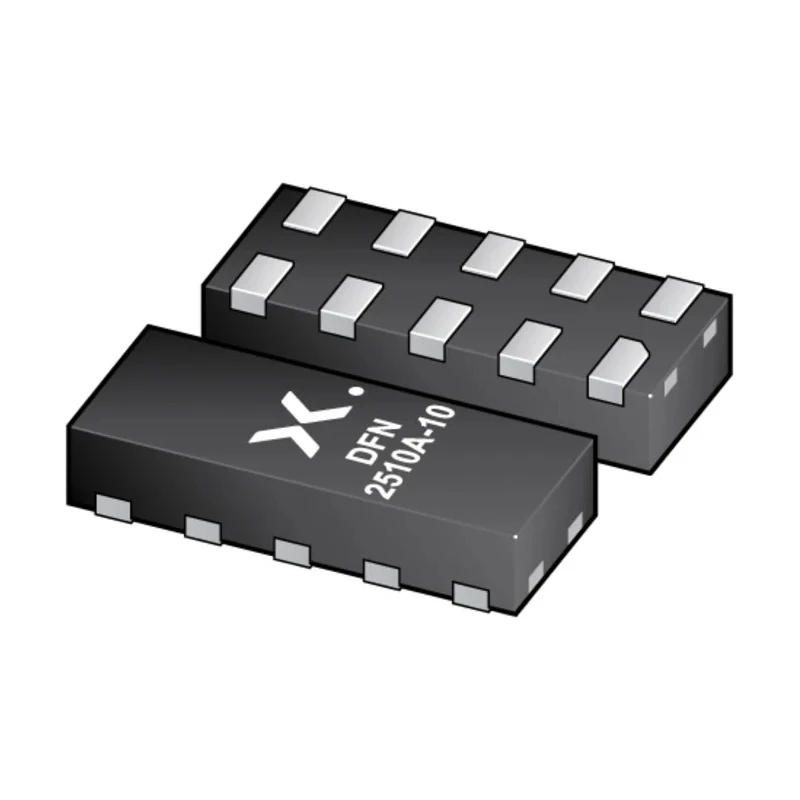

Nexperia 6-Element Uni-Directional ESD Protection Diode, 10-Pin DFN PUSB3FR4Z

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 6-Element Uni-Directional ESD Protection Diode, 10-Pin DFN PUSB3FR4Z

Name: Nexperia 6-Element Uni-Directional ESD Protection Diode, 10-Pin DFN PUSB3FR4Z
Brand: Nexperia
SKU: 214963
Price: 0.21 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.45mm
Length	2.6mm
Model	PUSB3FR4Z
Width	1.1mm
Mount Type	Surface
Series	PUSB
Maximum Operating Temperature	85°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Interfaces	USB 2
Pin Count	10
Number of Elements per Chip	6
Clamping Voltage VC	3V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	5.5V
Maximum Peak Pulse Current Ippm	7A
Maximum Reverse Leakage Current	100nA

Key Features

Designed for ESD protection on USB 2.0, SuperSpeed USB 3.1 at 10 Gbps, HDMI, DisplayPort, eSATA, and LVDS interfaces.
Features six diode elements integrated in a 10-pin DFN surface mount package.
Uni-directional single diode configuration optimized for ultra-high-speed signals.
Offers a minimum breakdown voltage of 5.5 V and clamping voltage of 3 V to protect sensitive circuits.
Capable of handling peak pulse current up to 7 A for robust transient event tolerance.
Maximum operating temperature of 85°C with a minimum of -40°C for wide environmental usage.
Maximum reverse leakage current of 100 nA ensures low power loss during operation.
Ideal for industrial, telecommunications, computing, and consumer electronics applications requiring high-speed signal protection.

Product Description

Nexperia PUSB3FR4Z 6-Element Uni-Directional ESD Protection Diode, 10-Pin DFN is a highly reliable device designed to provide system-level electrostatic discharge protection for ultra high-speed data interfaces, including USB 2.0, SuperSpeed USB 3.1 at 10 Gbps, HDMI, DisplayPort, external Serial ATA (eSATA), and Low Voltage Differential Signaling (LVDS) links.

This product integrates six diode elements in a compact 10-pin DFN surface mount package, with excellent clamping performance and unmatched low capacitance, ensuring minimal interference with signal integrity.

The device withstands peak pulse currents up to 7 A, with a breakdown voltage of 5.5 V and a clamping voltage of 3 V, suitable for protecting sensitive transmitter and receiver circuitry.

The uni-directional single diode configuration, combined with tight matching capacitance below 0.05 pF, supports high-speed data rates without signal degradation. Its small footprint (2.6 mm length × 1.1 mm width × 0.45 mm height) facilitates compact PCB layouts in industrial, computing, and consumer electronics applications.

Operating temperature range from -40°C to 85°C supports use in diverse environments.

This diode ensures outstanding system-level protection, featuring integrated rail-to-rail clamping diodes and matched 0.5 mm trace spacing for seamless pass-through signal routing.

Designed for ultra-high-speed interface protection with minimal signal interference. Compact DFN 10-pin surface mount package for space-efficient PCB assembly. High peak pulse current capability (7 A) and low leakage current (100 nA).

Supports USB 2.0, USB 3.1, HDMI, DisplayPort, eSATA, and LVDS standards. Wide operating temperature range suitable for industrial and consumer use.

This ESD Protection Diode is an essential component for safeguarding sensitive electronic devices against electrostatic discharge events, contributing to overall system robustness in telecommunications, industrial, networking, and consumer electronics sectors.

Explore the Electronics & Electricals catalog for additional Nexperia semiconductor components and related products offered by EnvMart.
