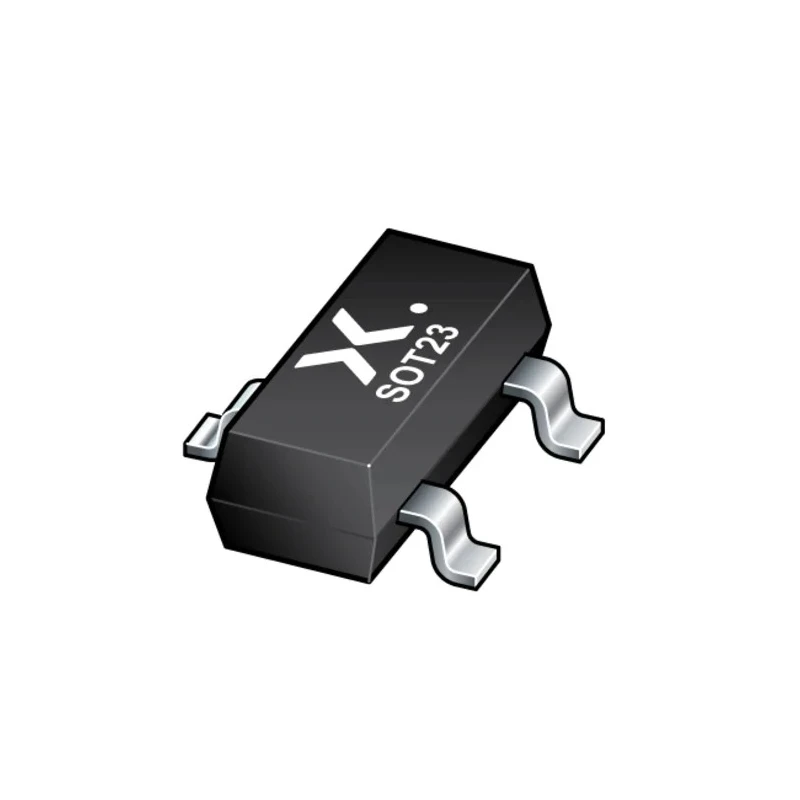

Nexperia Uni-Directional ESD Protection Diode 3-Pin SOT-23 PESD3V3F2UTR

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Uni-Directional ESD Protection Diode 3-Pin SOT-23 PESD3V3F2UTR

Name: Nexperia Uni-Directional ESD Protection Diode 3-Pin SOT-23 PESD3V3F2UTR
Brand: Nexperia
SKU: 414268
Price: 0.18 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.9mm
Model	PESD3V3F2UTR
Width	1mm
Mount Type	Surface
Series	PESD3V3F2UT
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	IEC 61000-4-2, RoHS
Pin Count	3
Clamping Voltage VC	3.3V
Automotive Standard	AEC-Q101
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	4.2V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Maximum Peak Pulse Current Ippm	4A
Maximum Reverse Leakage Current	50nA

Key Features

Protects two high-speed data lines from ESD damage.
Supports electrostatic discharge up to 8 kV per IEC 61000-4-2 standard.
Low clamping voltage of 3.3 V ensures minimal circuit disturbance.
Ultra low capacitance of 0.56 pF suitable for high-speed data applications.
Operates reliably between -65°C and 150°C for industrial temperature ranges.
Compact SOT-23 (TO-236AB) plastic surface-mounted device package.
Complies with automotive standard AEC-Q101 for enhanced reliability.
Maximum peak pulse current capability of 4 A.

Product Description

Nexperia PESD3V3F2UTR Uni-Directional ESD Protection Diode is designed to safeguard sensitive electronic circuits from electrostatic discharges and transient voltages. This diode features a compact 3-pin SOT-23 surface-mounted package ideal for integration in compact and high-density PCBs.

The device offers a minimum breakdown voltage of 4.2 V and a maximum reverse stand-off voltage of 3.3 V, providing effective protection without interfering with circuit operation. With an ultra-low capacitance of 0.56 pF, it is well suited for high-speed data lines, minimizing signal distortion.

This protective component has a maximum peak pulse current rating of 4 A and can withstand ESD events up to 8 kV, meeting IEC 61000-4-2 and ISO 10605 standards. It operates effectively across a wide temperature range from -65°C to 150°C, making it suitable for industrial and automotive applications, supported by its compliance with the AEC-Q101 automotive standard.

The small SOT-23 plastic package (dimensions: 1.3 mm height, 1 mm width, 2.9 mm length) enables space-saving board designs without compromising protection. Its maximum reverse leakage current of only 50 nA reduces power loss and improves reliability.

Protects sensitive circuits from electrostatic discharges up to 8 kV per IEC 61000-4-2 and ISO 10605. Low clamping voltage reduces potential damage and signal interference. Ultra-low capacitance enables use in high-speed data and communication lines.

Wide operating temperature range supports harsh industrial and automotive environments. Compact SOT-23 package for easy surface mounting and space conservation. AEC-Q101 qualification assures automotive industry reliability and performance.

Low reverse leakage current enhances efficiency.

This Nexperia ESD Protection Diode is ideal for electronic, automotive, industrial, and communication applications requiring high reliability and consistent protection. Discover more products in our Electronics & Electricals category for semiconductor protection solutions at EnvMart.
