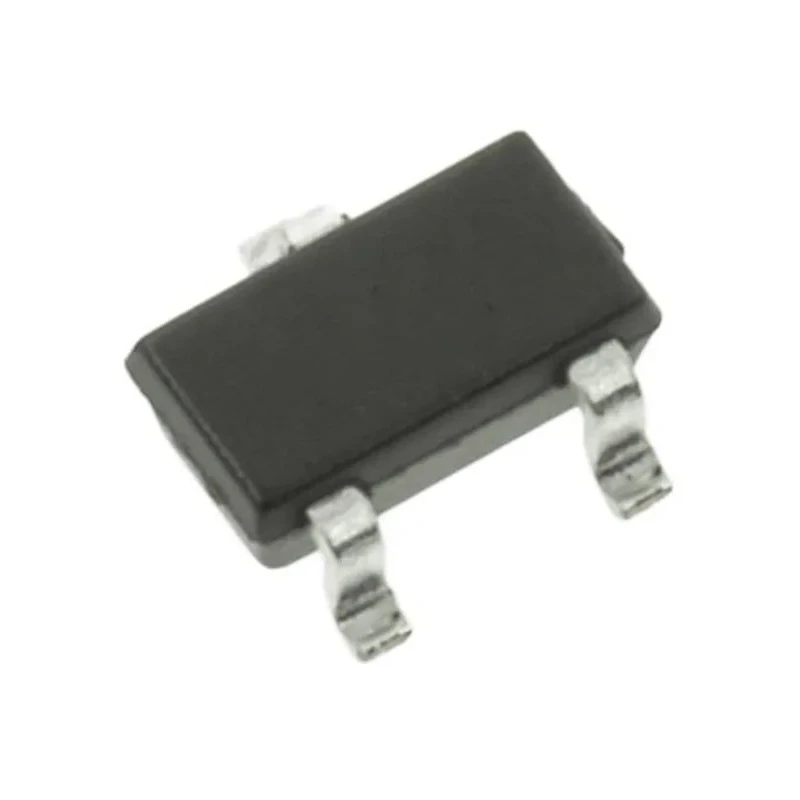

onsemi Digital Transistor 50 V NPN Surface Mount SC-59 3-Pin SMUN2211T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Digital Transistor 50 V NPN Surface Mount SC-59 3-Pin SMUN2211T1G

Name: onsemi Digital Transistor 50 V NPN Surface Mount SC-59 3-Pin SMUN2211T1G
Brand: onsemi
SKU: 417226
Price: 0.04 USD
Availability: InStock



Category Digital Transistor Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.3mm
Length	3.1mm
Model	SMUN2211T1G
Width	1.7mm
Mount Type	Surface
Series	SMUN2211
Maximum Operating Temperature	150°C
Package Type	SC-59
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	35
Transistor Polarity	NPN
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	297mW
Transistor Configuration	Single

Key Features

The transistor features a compact SC-59 package with a 3-pin configuration.
It integrates a monolithic bias network with two resistors, simplifying circuit design.
Minimum DC current gain (hFE) is 35, ensuring efficient signal amplification.
Maximum power dissipation is 297 mW with an operating temperature up to 150°C.
Meets automotive standard AEC-Q101 for reliability in automotive applications.
This device reduces component count and board space by integrating a bias resistor transistor in one unit.
Designed as a replacement for a single device and its external resistor bias network.
Ideal for industrial, automotive, and electronic circuit applications requiring compact NPN transistors.

Product Description

onsemi SMUN2211T1G digital transistor is a surface mount device housed in an SC-59 package, designed for efficient switching and amplification in electronic circuits. Featuring a maximum collector emitter voltage of 50 V and NPN transistor polarity, it supports a 3-pin configuration for easy PCB integration.

This transistor incorporates a monolithic bias network consisting of a series base resistor and a base-emitter resistor, effectively reducing the component count and board space required in circuit design. With a minimum DC current gain (hFE) of 35 and maximum power dissipation of 297 mW, it suits moderate power electronic applications.

Measuring 3.1mm in length, 1.7mm in width, and 1.3mm in height, the device is compact and ideal for space-sensitive designs. It also complies with automotive standards AEC-Q101, making it suitable for demanding automotive electronics.

The transistor's maximum operating temperature reaches 150°C, supporting reliable operation in harsh environments. This series provides a cost-effective solution by integrating bias resistors within the transistor, eliminating the need for external resistors and simplifying circuit topologies.

Applications include industrial electronics, automotive control systems, signal amplification, and switching circuits in power management and other embedded systems. The transistor features a compact SC-59 package with a 3-pin configuration.

Integration of monolithic bias resistors simplifies circuit design and reduces board space. High reliability ensured by compliance with the AEC-Q101 automotive standard. Supports maximum collector emitter voltage of 50 V and power dissipation of 297 mW.

Operates efficiently up to 150°C, suitable for harsh industrial conditions. Minimum DC current gain of 35 for strong signal amplification. Reduces component count by replacing single device and resistor network. Optimal for automotive, industrial, and electronic circuit applications.

Explore more from the Semiconductor and Digital Transistor categories at EnvMart to find the right components for your industrial and automotive electronics projects.
