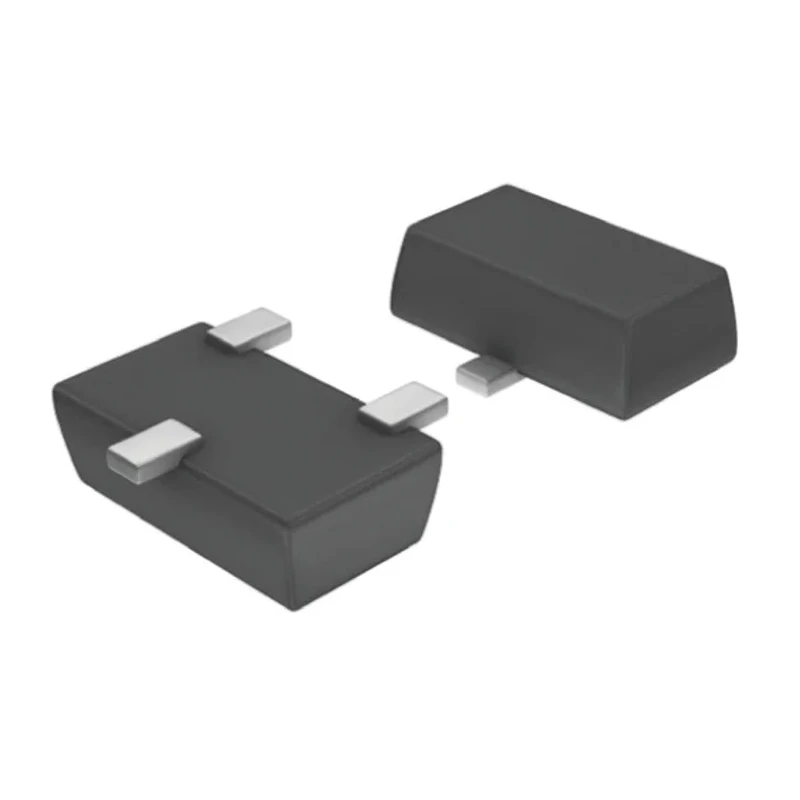

onsemi Digital Transistor PNP 3-Pin Surface Mount SOT-723, -50 V Vceo, 338 mW Power Dissipation DTA114EM3T5G

onsemi DTA114EM3T5G Digital Transistor is a high performance PNP bipolar transistor designed for surface mount technology applications in electronic circuits. Packaged in a SOT-723 casing, it measures 2.9 mm in length, 1.6 mm in width, and 0.9 mm in height, making it ideal for compact PCB layouts.

This device incorporates dual integrated resistors which simplify interfacing with digital circuits by allowing direct drive from logical signals. The transistor is rated for a maximum collector-emitter voltage of -50 V, ensuring reliable switching capabilities in various industrial and consumer electronic applications.

The DTA114EM3T5G offers a minimum DC current gain (hFE) of 200 and supports a maximum collector-base voltage of 100 V, emphasizing stable amplification performance. Its maximum emitter-base voltage is 6 V, and it dissipates power up to 338 mW continuously.

With a maximum operating temperature of 150°C, this transistor withstands elevated thermal environments encountered in manufacturing, automation, and power control systems. The three-pin package allows for ease of use in automated PCB assembly processes.

This transistor provides excellent integration for digital switching and amplification tasks. The compact SOT-723 package supports surface mount assembly and space-saving designs. Robust voltage and current characteristics make it suitable for industrial and consumer electronics.

High current gain ensures efficient transistor operation and signal amplification. Thermal stability rated up to 150°C for demanding application environments. Dual resistor integration minimizes external component count and simplifies circuit design.

Perfect for use in automation, power electronics, and communication devices.

Choose onsemi DTA114EM3T5G Digital Transistor for reliable, compact, and efficient transistor solutions. This product is ideal for engineers and manufacturers focused on precision electronic componentry for industrial and consumer applications. Explore the complete range of semiconductor devices in this category at EnvMart.
