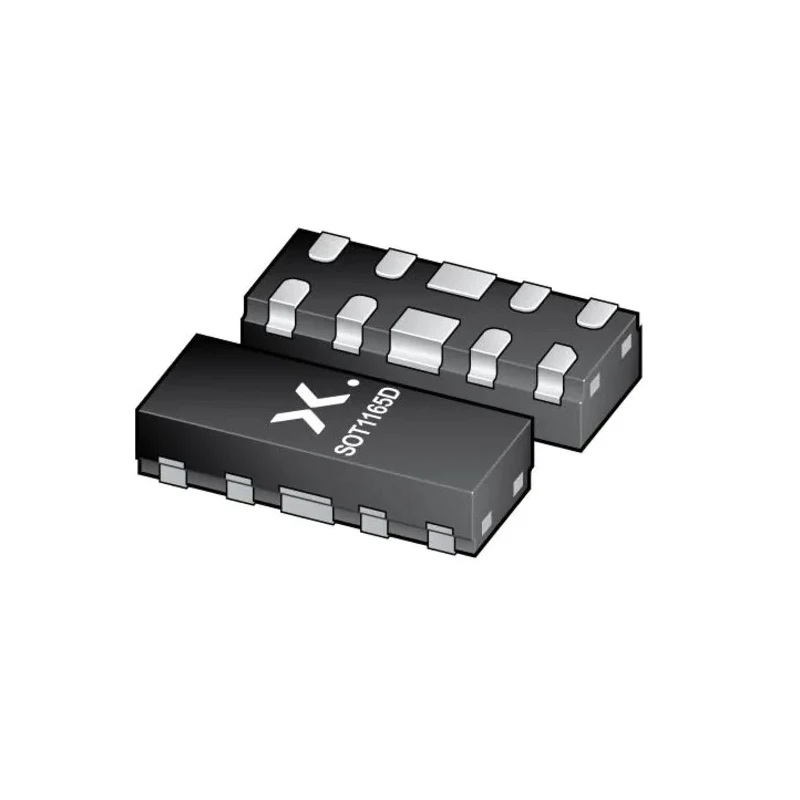

Nexperia Bi-Directional ESD Protection Diode DFN2510D, 5 V Maximum Reverse Stand-off Voltage, 7 A Peak Pulse PESD4USB5B-TTS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TTS |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Provides system-level ElectroStatic Discharge protection for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps.
- Supports multiple interfaces including HDMI, DisplayPort, eSATA, and Low Voltage Differential Signalling.
- Features a low line capacitance of 0.5 pF per channel ensuring signal integrity.
- Has a maximum reverse stand-off voltage of 5 V and clamping voltage of 5.5 V for effective surge suppression.
- Peak pulse current rating of 7 A suitable for robust transient voltage handling.
- Compact DFN2510D surface mount package measuring 2.5 mm x 0.75 mm with 1 mm height.
- Operating temperature range from -65°C to 150°C meeting automotive AEC-Q101 standards.
- Compliance with IEC 61000-4-2 standard for ESD protection ensures reliability.
Product Description
Nexperia PESD4USB5B-TTS Bi-Directional ESD Protection Diode in DFN2510D package provides high-performance protection for sensitive electronics against ElectroStatic Discharge (ESD). Designed specifically for high-speed data interfaces such as SuperSpeed USB 3.2 operating at 10 Gbps, HDMI, DisplayPort, and eSATA, it ensures signal integrity and device safety.
With its surface mount DFN2510D footprint (2.5 mm length x 0.75 mm width x 1 mm height), this diode delivers effective transient voltage suppression with a maximum reverse stand-off voltage of 5 V and a peak pulse current of 7 A. The low capacitance of 0.5 pF per channel helps minimize signal distortion, important for maintaining high-speed data transmission quality.
The device operates over a wide temperature range of -65°C to 150°C, making it suitable for automotive-grade applications compliant with AEC-Q101 standards. Its compliance with IEC 61000-4-2 further certifies it for reliable ESD protection levels in industrial and automotive environments.
This diode is widely used in infotainment systems, automotive audio/video monitors, display cameras, and Serial Advanced Technology Attachment (eSATA) interfaces. It supports differential signaling standards like LVDS and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes).
Provides system-level ESD protection for USB 2.0 and USB 3.2 interfaces. Supports HDMI 2.0, DisplayPort, and HDBaseT applications. Design-friendly pass-through signal routing with side-wettable flanks. Compact and low-profile DFN2510D package suitable for space-constrained designs.
Compliance with industry standards and automotive-grade reliability. Low line capacitance ensures minimal signal interference at high data rates. Protects high-speed interfaces against transient voltage spikes and ESD events.
Ideal for automotive infotainment, data communications, and industrial electronics. Explore additional Nexperia semiconductor products and components within the EnvMart catalog to meet your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 5 V.
It has a peak pulse current rating of 7 A, suitable for robust transient voltage handling.
The clamping voltage is 5.5 V, providing effective surge suppression.
The operating temperature range is from -65°C to 150°C, making it suitable for automotive applications.
It comes in a compact DFN2510D surface mount package measuring 2.5 mm x 0.75 mm with a height of 1 mm.
This model supports USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, DisplayPort, and eSATA interfaces.
It features a low line capacitance of 0.5 pF per channel, ensuring signal integrity.
Yes, it complies with the IEC 61000-4-2 standard for ESD protection and meets AEC-Q101 automotive standards.
It is commonly used in automotive infotainment systems, audio/video monitors, and eSATA interfaces.
The maximum reverse leakage current is 100 nA.
The minimum breakdown voltage is 6 V.
This model is bi-directional, providing protection in both directions.
