ROHM Digital Transistor NPN 100 mA Surface Mount SMT 3-Pin DTC143EKAT146
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.3mm |
| Length | 3mm |
| Model | DTC143EKAT146 |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | DTC143EKA |
| Maximum Operating Temperature | 150°C |
| Package Type | SMT |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 100mA |
| Minimum DC Current Gain hFE | 20 |
| Transistor Polarity | NPN |
| Maximum Power Dissipation Pd | 200mW |
| Transistor Configuration | Single |
| ROHM DTC143EKAT146 NPN Digital Transistor, 50 V, 3-Pin SOT-346Brand | ROHM |
Key Features
- Equipped with integrated resistors for direct digital source driving.
- Maximum power dissipation of 200 mW suitable for moderate power applications.
- Compact dimensions of 3 mm length, 1.8 mm width, and 1.3 mm height.
- Operational temperature up to 150°C ensures reliability in various environments.
- Single transistor configuration in a Surface Mount Technology package.
- Offers a minimum DC current gain (hFE) of 20 for efficient signal amplification.
- No automotive standard compliance but suitable for general electronic component use.
- Ideal for use in electronic, industrial, and digital circuitry applications.
Product Description

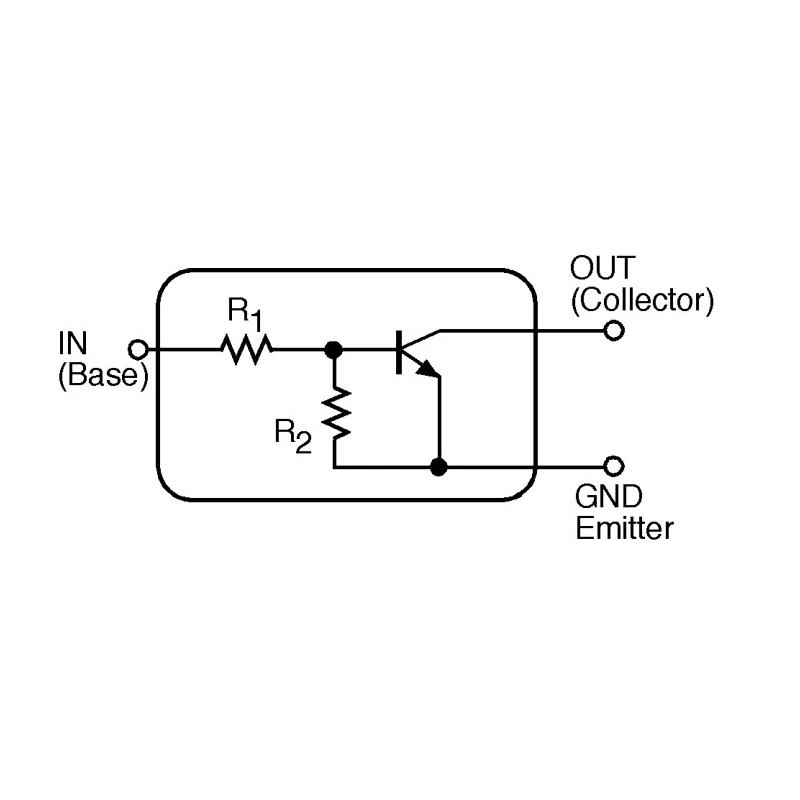

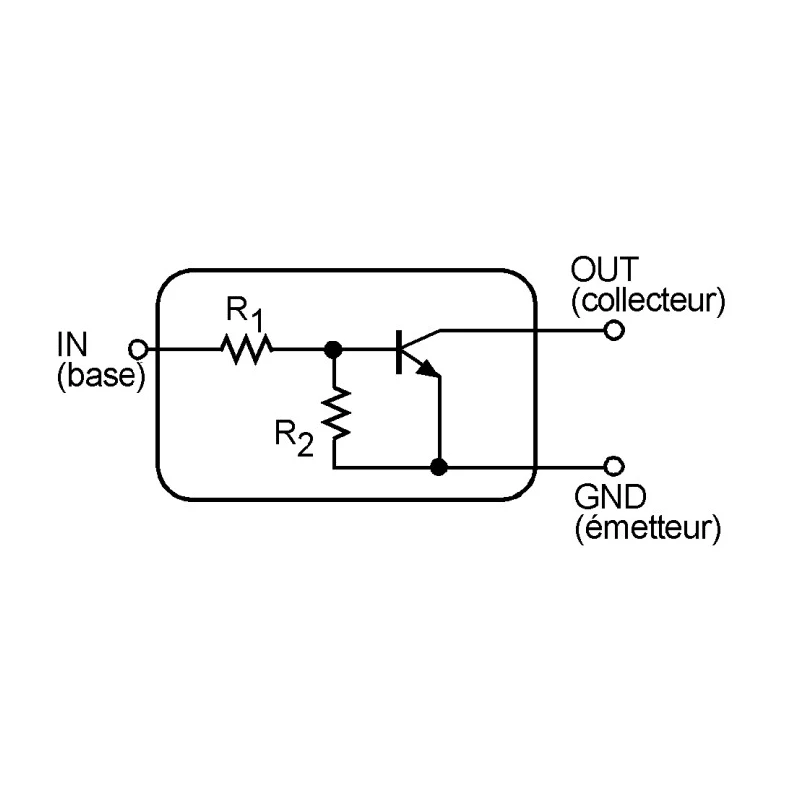

It is designed in a Surface Mount Technology (SMT) package optimized for compact electronic devices and digital circuits. The transistor includes integrated bias resistors, allowing it to be driven directly by digital sources without the need for additional external resistors. This feature simplifies circuit design and improves reliability.
With a maximum continuous collector current rating of 100 mA and maximum power dissipation of 200 mW, the transistor is suitable for a wide range of moderate power applications in industrial and commercial electronics. It features a minimum DC current gain of 20, providing effective signal amplification for switching and amplification tasks.
The device's compact form factor measures 3 mm in length, 1.8 mm in width, and 1.3 mm in height, making it ideal for space-constrained designs. It can function reliably at temperatures up to 150°C, allowing operation in demanding environments.
The transistor has a 3-pin configuration and adheres to industry-standard packaging formats for SMT, facilitating automated assembly and high-volume manufacturing. This product is widely used in electronic components for power connectors, control circuits, and other semiconductor applications.

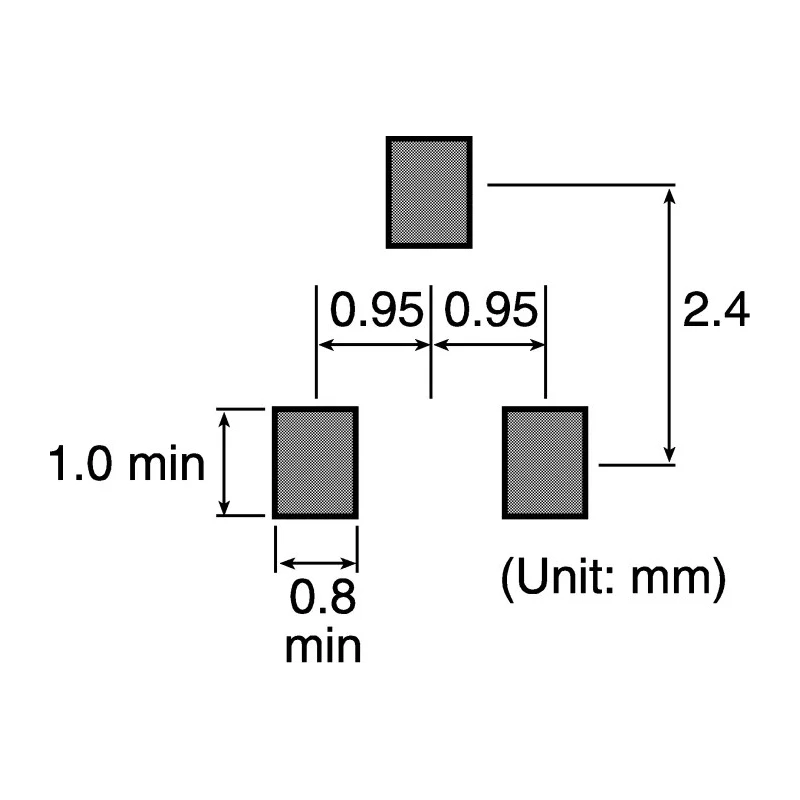

Equipped with integrated bias resistors to enable direct digital drive. Maximum collector current: 100 mA for diverse applications. Compact SOT-346 package dimensions aid PCB layout efficiency. High operating temperature tolerance of 150°C ensures product longevity.
Minimum DC current gain of 20 for good switching performance. Surface Mount Technology package suitable for automated production. Single transistor configuration simplifies circuit design. Suited for industrial, electronic, and power control applications.
ROHM, a leader in semiconductor manufacturing, ensures the quality and reliability of this transistor. The DTC143EKAT146 is a fundamental component for digital switching applications and is widely deployed in electronics manufacturing worldwide.
Explore more specialized bipolar and Digital Transistors from ROHM and other trusted brands at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 100 mA, making it suitable for a range of moderate power applications.
This digital transistor has compact dimensions of 3 mm in length, 1.8 mm in width, and 1.3 mm in height, which is ideal for space-constrained designs.
The maximum power dissipation for this model is 200 mW, which allows it to handle moderate power applications effectively.
It can operate reliably at temperatures up to 150°C, ensuring functionality in demanding environments.
The minimum DC current gain (hFE) for this transistor is 20, which provides effective signal amplification for various applications.

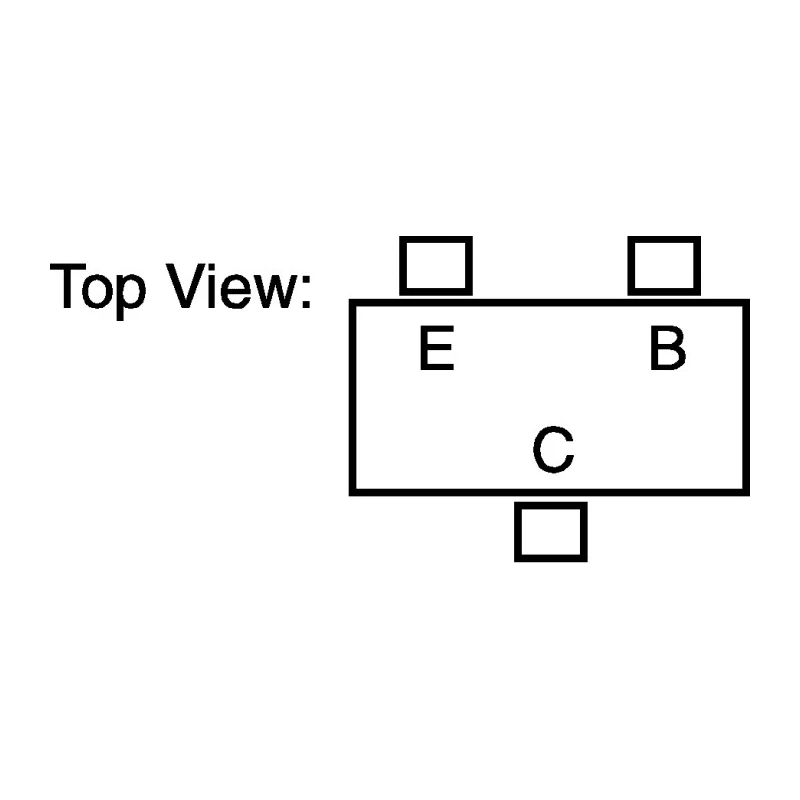

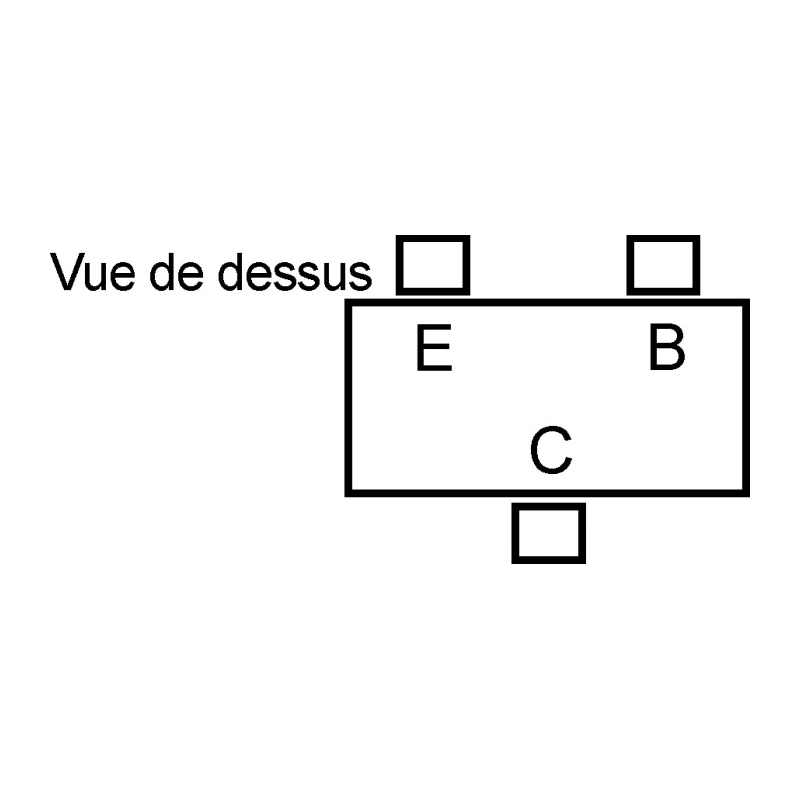

This model uses a Surface Mount Technology (SMT) package, specifically in a 3-pin SOT-346 format, facilitating automated assembly.
No, this model does not comply with automotive standards but is suitable for general electronic component use in various applications.
This transistor features a single transistor configuration, which simplifies circuit design and integration into electronic systems.
The DTC143EKAT146 is an NPN type digital transistor, commonly used in various electronic circuits.
It is widely used in electronic, industrial, and digital circuitry applications, particularly for power control and signal amplification.
Key features include integrated bias resistors for direct digital drive, a maximum operating temperature of 150°C, and a compact SMT package for efficient PCB layout.
The country of origin for this model is India, reflecting its manufacturing location.
