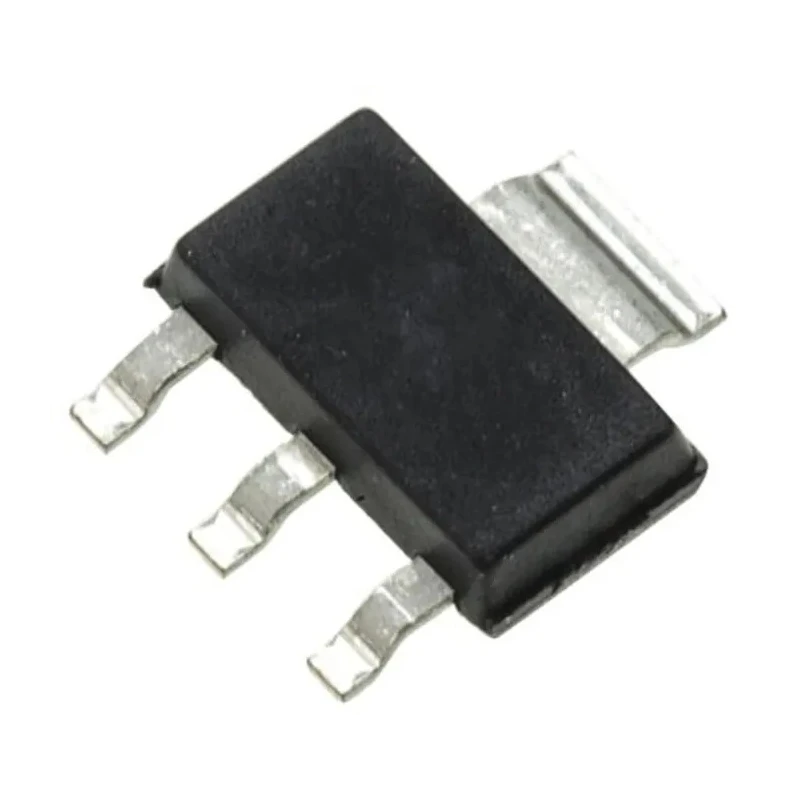

onsemi Digital Transistor 100 V NPN Surface Mount SOT-223 3-Pin NSV1C201MZ4T1G

onsemi NSV1C201MZ4T1G is a high-performance Digital Transistor featuring a maximum collector emitter voltage of 100 V and NPN polarity, housed in a space-saving SOT-223 (SC-73) surface mount package with 3 pins. The device offers a minimum DC current gain (hFE) of 40 and can dissipate up to 2 W power, supporting power management applications where reliable switching is required.

This transistor complies with the automotive grade AEC-Q101 standard, making it suitable for use in automotive electronics demanding stringent quality and thermal performance. It operates effectively in temperatures up to 150°C, which supports use in harsh industrial and automotive environments.

The compact dimensions of 6.7 mm length, 3.7 mm width, and 1.75 mm height enable efficient space utilization on PCB assemblies. The device's maximum collector base voltage of 140 V and maximum emitter base voltage of 7 V dc allow for versatile circuit design options.

This single-transistor device is ideal for power management in portable and battery-powered equipment, automotive systems, and industrial controls. Its surface mount configuration simplifies automated PCB assembly and improves manufacturing throughput.

Robust 100 V maximum collector emitter voltage for power switching. Minimum DC current gain of 40 for dependable transistor operation. 2 W power dissipation rating ensures reliable thermal performance. Meets AEC-Q101 automotive quality standards for harsh use cases.

Operates reliably up to 150°C ambient temperature conditions. Compact SOT-223 package dimensions optimize PCB space. Three pins for a single transistor configuration. Suitable for portable electronics, automotive modules, and industrial applications.
