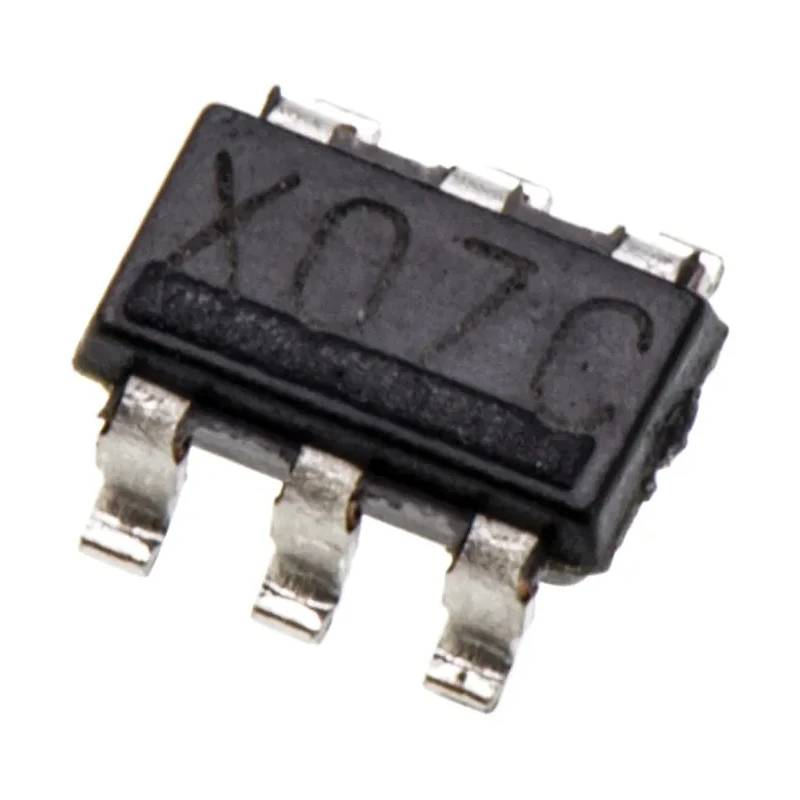

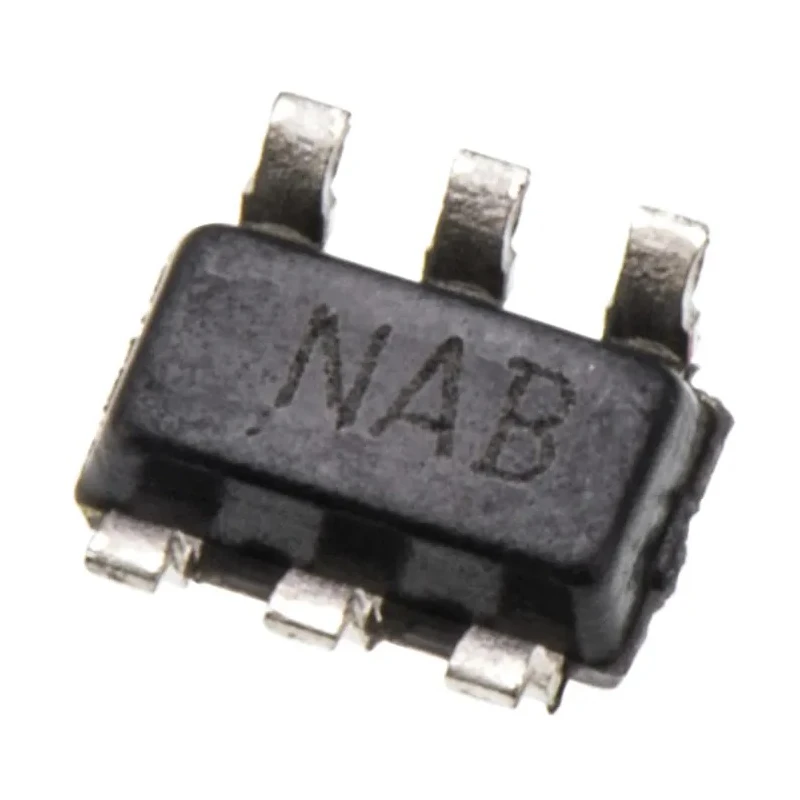

Texas Instruments 12-bit SAR ADC 200 ksps, 6-Pin SOT-23 ADC121S021CIMF/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 3.1mm |
| Model | ADC121S021CIMF/NOPB |
| Mount Type | Surface |
| Sampling rate | 200ksps |
| Series | ADC121S021 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 6 |
| Minimum Supply Voltage | 3.3V |
| Number of ADCs | 1 |
Key Features
- 12-bit single-channel ADC with SAR architecture operating at 200 ksps.
- Surface mount device in compact 6-pin SOT-23 package.
- Operating temperature range from -40°C to 85°C for industrial use.
- Supports SPI interface for serial communication.
- Minimum supply voltage of 3.3 V ensuring low power operation.
- No automotive standard compliance required.
Product Description
Texas Instruments ADC121S021CIMF/NOPB is a precision 12-bit single-channel analog-to-digital converter based on successive approximation register (SAR) architecture. It delivers a sampling rate of 200 ksps, making it suitable for a wide range of electronic applications requiring high-resolution analog-to-digital conversion.
This ADC is packaged in a compact 6-pin SOT-23 surface mount device, featuring small dimensions of 3.1 mm length and 1.45 mm height. It operates over an extended temperature range from -40°C to 85°C, supporting industrial and commercial environments.
The device accepts voltage input signals and supports SPI serial communication interface, integrating easily with microcontrollers and other digital systems. It requires a minimum operating voltage of 3.3 V, offering low power consumption ideal for embedded designs.
Texas Instruments' ADC121S021CIMF/NOPB does not carry automotive standards, making it best suited for general electronic instrumentation, data acquisition systems, and laboratory equipment where compact size and reliable data conversion are essential.
12-bit SAR ADC with 200 ksps sampling rate. 6-pin SOT-23 surface mount package. Voltage input type for accurate analog signal conversion. Extended operating temperature range from -40°C to 85°C. SPI interface support enables easy integration.
Low minimum supply voltage of 3.3 V. Compact size: 3.1 mm length and 1.45 mm height. No automotive certification required.
This ADC is ideal for industrial, laboratory, and consumer electronic applications requiring digitization of analog signals with precision and speed. For more electronic components, visit EnvMart’s semiconductor and data converter category.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a resolution of 12 bits, allowing for precise analog-to-digital conversion.
The ADC121S021CIMF/NOPB operates at a maximum sampling rate of 200 ksps, suitable for high-speed applications.
It operates within an extended temperature range from -40°C to 85°C, making it suitable for industrial environments.
This unit accepts voltage input signals for accurate analog signal conversion.
It supports SPI (Serial Peripheral Interface) for easy integration with microcontrollers and digital systems.
The ADC121S021CIMF/NOPB has a length of 3.1 mm and a height of 1.45 mm, packaged in a compact SOT-23 format.
It requires a minimum supply voltage of 3.3 V, ensuring low power operation.
No, the ADC121S021CIMF/NOPB does not carry automotive standards, making it suitable for general electronic applications.
This model is based on successive approximation register (SAR) architecture, which is common in high-resolution ADCs.
The ADC121S021CIMF/NOPB integrates a single ADC channel for analog-to-digital conversion.
It is designed as a surface mount device, allowing for compact integration on PCBs.
This ADC is suitable for applications in industrial instrumentation, data acquisition systems, and laboratory equipment requiring high-resolution data conversion.
