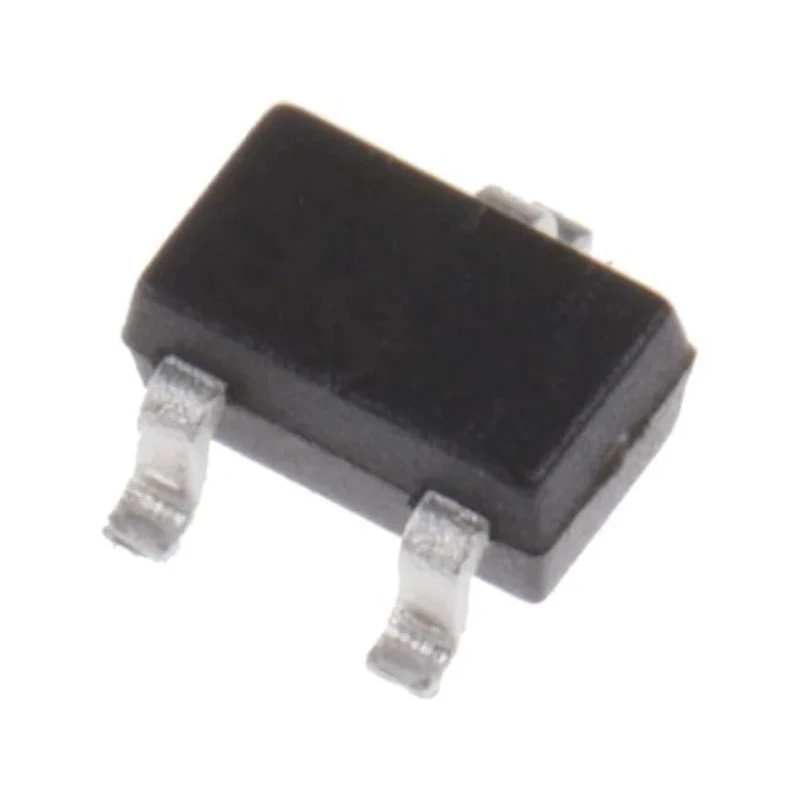

onsemi Digital Transistor Surface Mount 50 V 310 mW NPN 3-Pin MUN5235T1G

onsemi MUN5235T1G Digital Transistor is a surface mount 3-pin NPN transistor with integrated monolithic bias resistors. Rated for a maximum collector-emitter voltage of 50 V and power dissipation of 310 mW, this device is engineered to simplify digital circuit design by eliminating the need for external resistor bias networks.

The transistor configuration is single with a minimum DC current gain of 80, supporting reliable switching in demand applications. It can operate at temperatures up to 150°C, conforming to the automotive standard AEC-Q101, making it suitable for automotive and other high-reliability uses.

With compact dimensions of 2.2 mm length, 2.4 mm width, and 1.1 mm height, the MUN5235T1G is ideal for dense PCB layouts. It reduces overall system cost and board space by integrating two resistors internally - a series base resistor and a base-emitter resistor - resulting in reduced component count and simplified assembly.

This transistor is lead-free and halogen-free, supporting environmentally conscious manufacturing practices. Typical applications include industrial control systems, automotive digital switching circuits, and various consumer electronic digital interface circuits.

This device simplifies circuit design with integrated resistors. Reduces board space and component assembly count. Suitable for automotive-grade applications with AEC-Q101 certification. Compact form factor for high-density PCB use.

Operating temperature up to 150°C for harsh environments. Lead-free and halogen-free construction for compliance. Reliable NPN transistor with hFE minimum 80 for digital switching. Max collector-emitter voltage 50 V and power dissipation 310 mW.
