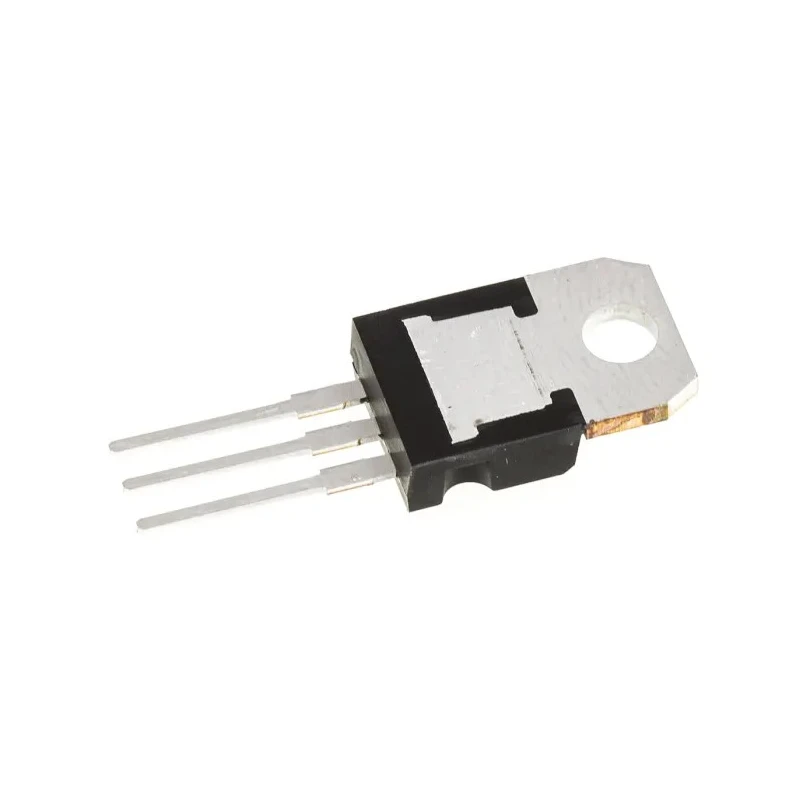

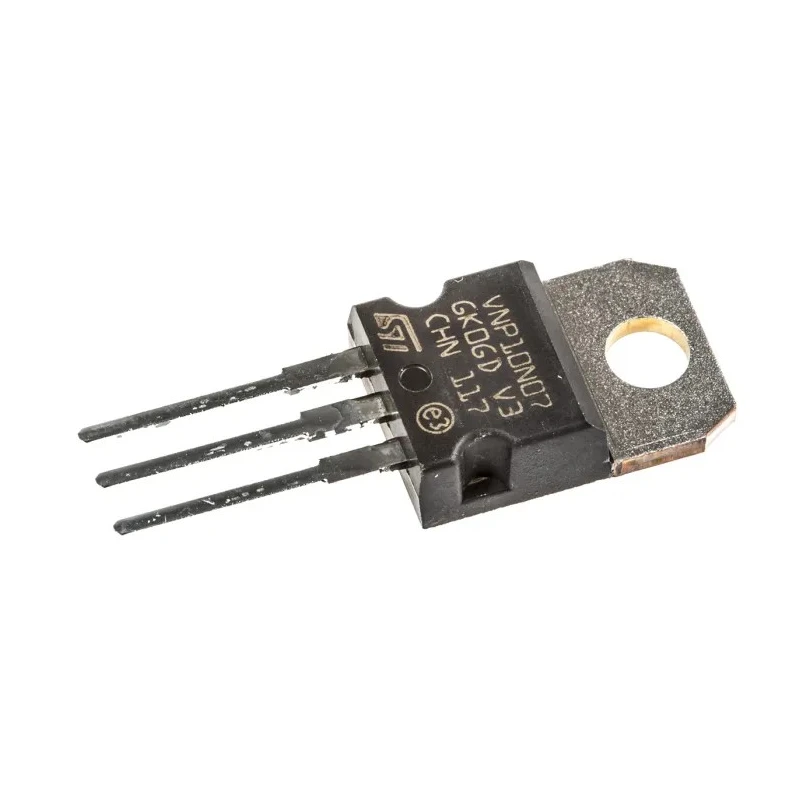

STMicroelectronics Low Side OMNIFET Fully Auto Protected Power MOSFET Power Switch IC 3-Pin TO-220 VNP10N07-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | VNP10N07-E |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 10A |
| Number of outputs | 1 |
| Pin Count | 3 |
| Maximum Supply Voltage | 70V |
| OMNIFET | Fully Auto protected Power MOSFET |
| STMicroelectronics Low Side, OMNIFET | Fully Auto protected Power MOSFET Power Switch IC 3-Pin, TO-220 |
Key Features
- Features integrated linear current limitation for load protection.
- Includes thermal shutdown to prevent damage from overheating.
- Provides short circuit and ESD protection for enhanced durability.
- Mount type is through hole with TO-220 package for easy PCB integration.
- Operates within a temperature range from -40°C to 125°C.
- Supports a maximum supply voltage of 70V and current of 10A.
- Compact design with dimensions of 10.4mm length, 4.6mm width, and 15.75mm height.
- Designed for inductive and resistive loads especially in automotive applications.
Product Description
STMicroelectronics VNP10N07-E is a low side OMNIFET fully auto protected power MOSFET power switch IC featuring a 3-pin TO-220 through-hole package, supporting operation up to 70V and 10A current. It is engineered for demanding environments, including automotive and industrial applications, providing ruggedness and high reliability.
This intelligent power switch integrates linear current limitation, thermal shutdown, short circuit and ESD protections, ensuring stable performance under inductive or resistive loads. Its compact size and standard through-hole mounting make it suitable for various PCB designs.
The operating temperature range of -40°C to 125°C makes it highly versatile for harsh operating conditions. The integrated clamp and thermal protections protect the switch and connected components from damage during abnormal operating conditions.
The device provides automotive-grade robustness without requiring additional external components, simplifying design complexity. Its TO-220 package offers easy handling and heat dissipation.
STMicroelectronics continues to innovate with the OMNIFET series, focusing on enhanced reliability and ease of use for industrial, automotive, and power management systems. Integrated linear current limitation. Thermal shutdown protection.
ESD and short circuit protections. Through-hole TO-220 package. Wide operating temperature range. Supports up to 70V and 10A operation.
This product is ideal for automotive power switch applications, industrial controls, and other environments requiring reliable and protected MOSFET switching. Explore more power management ICs from STMicroelectronics on EnvMart.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VNP10N07-E supports a maximum supply voltage of 70V and an operating current of 10A.
It operates within a temperature range from -40°C to 125°C, making it suitable for harsh environments.
This model is packaged in a TO-220 through-hole configuration, which facilitates easy PCB integration.
This power switch IC features integrated linear current limitation, thermal shutdown, short circuit protection, and ESD protection for enhanced durability.
The VNP10N07-E has a single output, designed for efficient operation in various applications.
The dimensions of the VNP10N07-E are 10.4mm in length, 4.6mm in width, and 15.75mm in height.
Yes, it is designed for inductive and resistive loads, particularly in automotive applications, providing robust performance.
This power switch IC has a pin count of 3, which aligns with its TO-220 package design.
It is engineered for both inductive and resistive loads, making it versatile for various applications.
The country of origin for this product is India.
The OMNIFET feature indicates that this power switch IC is fully auto protected, simplifying design complexity and enhancing reliability.
No, the VNP10N07-E provides automotive-grade robustness without needing additional external components, simplifying the design process.
