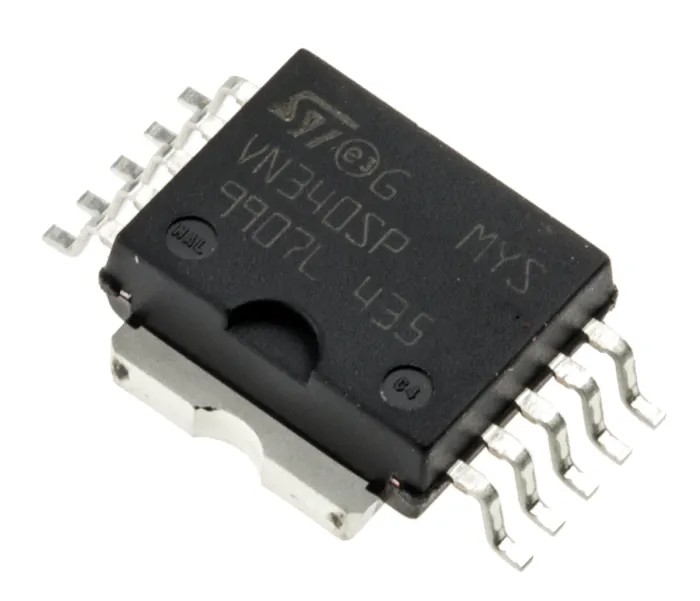

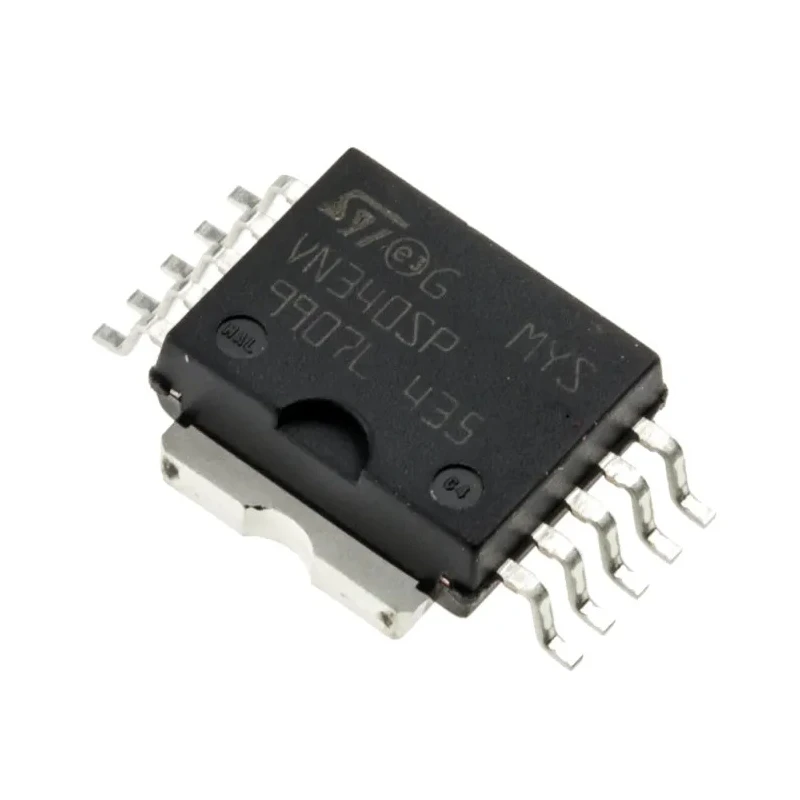

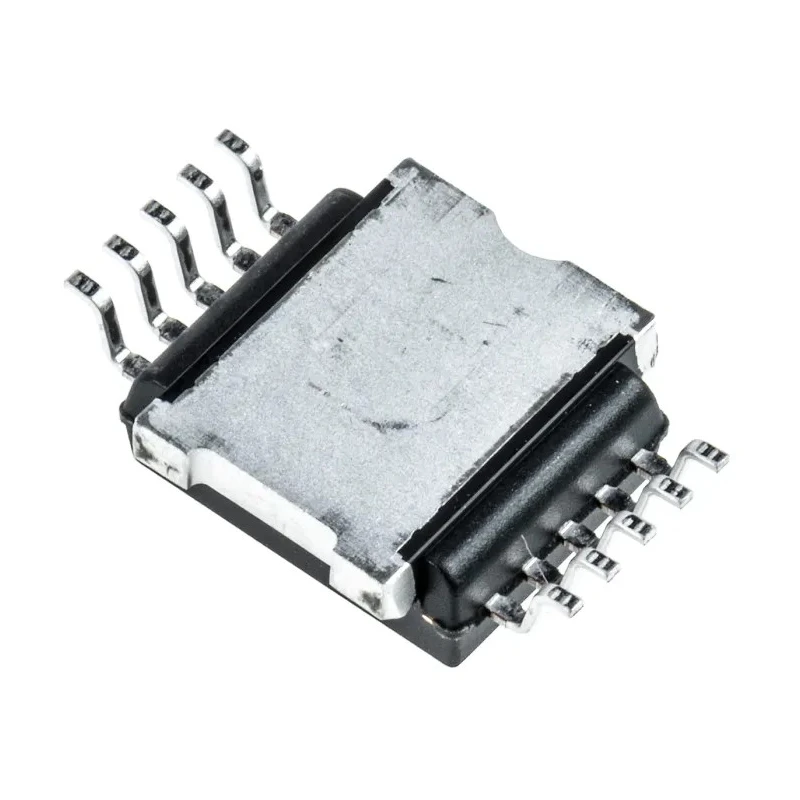

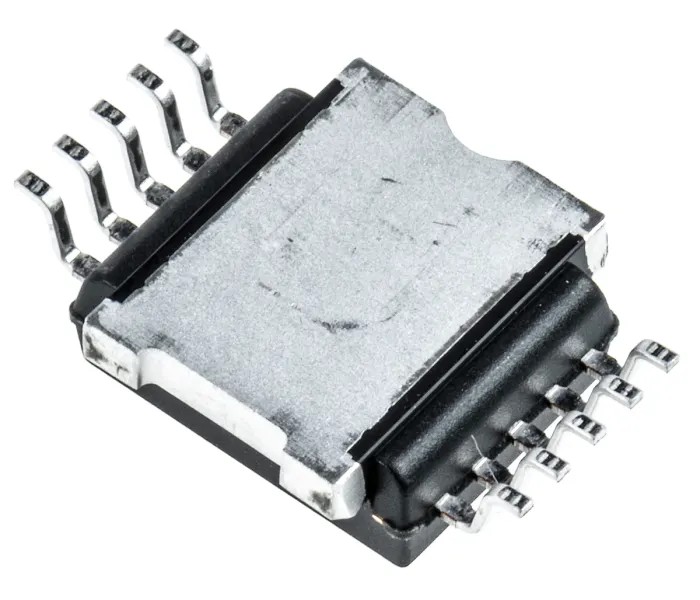

STMicroelectronics High Side Solid State Relay Power Switch IC 10-Pin SOIC VN340SP-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.65mm |
| Length | 9.5mm |
| Model | VN340SP-E |
| Width | 9.6mm |
| Mount Type | Surface |
| Series | VN340SP-E |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Operating Current | 700mA |
| Number of outputs | 4 |
| Standards/Approvals | IEC 61131-2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-1170PBrand: STMicroelectronicsManufacturers Part No.: VN340SP-E |
| Pin Count | 10 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 1V |
| Switch On Resistance RdsOn | 0.2Ω |
Key Features
- Features 4 outputs with a low switch on resistance of 0.2 ohms.
- Operates with a supply voltage range from 1V to 36V.
- Surface mount SOIC package ensuring easy PCB integration.
- Capable of handling operating current up to 700mA.
- Designed to operate reliably from -55°C up to 150°C ambient temperature.
- Complies with IEC 61131-2 standards for safety and reliability.
- Ideal for automotive and industrial high-side switching applications.
Product Description
STMicroelectronics VN340SP-E is an intelligent high side power switch integrated circuit designed for switching applications that require reliable solid state relay functions. Featuring four outputs, it integrates logic, drivers, diagnostics, and protection mechanisms in a single compact 10-pin SOIC surface mount package.
This power switch IC operates over a wide supply voltage range from 1V to 36V and can handle operating currents up to 700mA, making it suitable for various control and power management duties in industrial, automotive, and consumer electronics environments.
VN340SP-E is designed to function efficiently and reliably in harsh ambient temperatures ranging from -55°C to +150°C, meeting IEC 61131-2 standards for industrial applications. Its low on resistance RdsOn of 0.2 ohms minimizes power losses and heat generation during switching operations.
The device's compact physical dimensions (9.5mm length, 9.6mm width, and 3.65mm height) enable easy integration into dense PCB layouts, enhancing design flexibility for modern electronics projects.
This IC is especially suited for high side power switching in automotive and industrial control systems where solid state relays ensure fast, silent, and reliable operation without mechanical wear.
Features 4 outputs with low switch on resistance to reduce energy dissipation. Wide operating voltage ensures compatibility with diverse power systems. Surface mount SOIC package provides a small footprint for compact designs.
High operating temperature range supports demanding environments. Meets IEC 61131-2 certification for industrial standard compliance. Compact dimensions ease PCB layout and integration. Robust protection and diagnostic features improve system reliability.
Suitable for automotive and industrial high side power switching use cases. Explore other high-quality Power Switch ICs from STMicroelectronics and related semiconductor components on EnvMart for your next industrial or electronics project.
