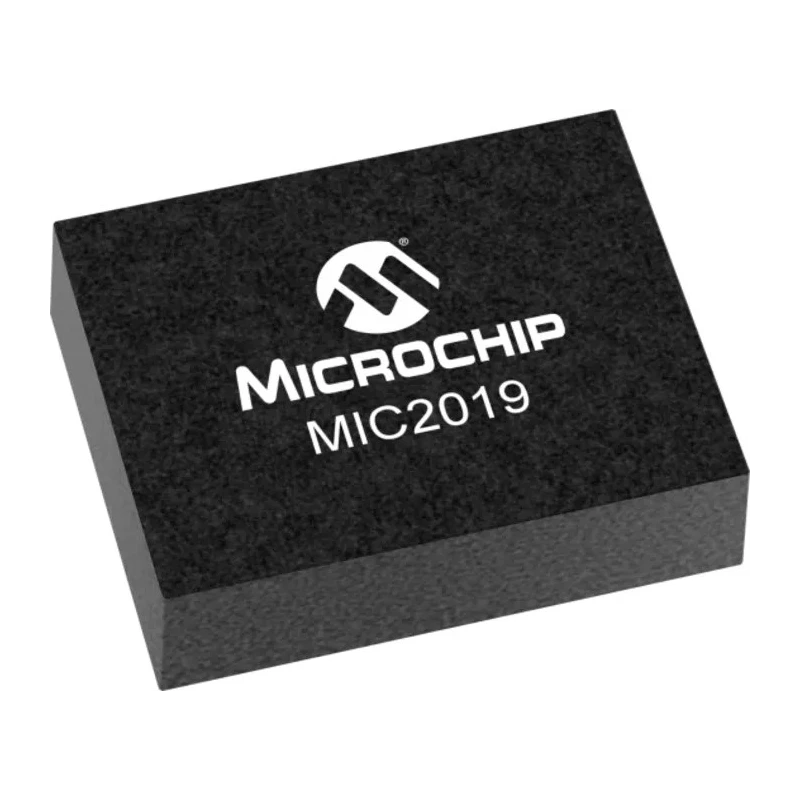

Microchip High Side Power Switch IC 6-Pin SOT-23 2A Operating Current 5.5V Maximum Supply Voltage MIC2019A-1YM6-TR

Microchip MIC2019A-1YM6-TR High Side Power Switch IC is a surface-mount device housed in a compact 6-pin SOT-23 package, optimized for power management applications. It operates with a maximum supply voltage of 5.5 V and a 2 A operating current, providing efficient current limiting and power switching capabilities.

This device ensures thermal protection with automatic shutdown to safeguard against faults and high current conditions. It features an exceptionally low switch-on resistance of 170 mΩ, enabling minimal power loss and improved energy efficiency.

The MIC2019A-1YM6-TR includes comprehensive functional features such as fault reporting, fault blanking to avoid false alarms caused by noise, output slew rate limiting, automatic output-on after fault conditions, and both active low and active high enable pin options. An automatic load discharge mechanism handles capacitive loads safely, and adjustable slew rate control allows customization to system requirements.

Its small form factor with dimensions 2.9 mm (length), 1.6 mm (width), and 900 µm (height) makes it suitable for compact PCB layouts commonly found in industrial, consumer electronics, telecommunications, and computing devices such as digital televisions, printers, set-top boxes, PCs, and PDAs.

This high-side power switch device is ideal for reliable power distribution and control, combining efficiency, thermal safety, and fault diagnostics in a single compact module. Operates with a maximum supply voltage of 5.5 volts.

Has an operating current rating of 2 amperes for reliable performance. Features low switch-on resistance of 170 milliohms for improved efficiency. Includes thermal protection and current limiting functions. Equipped with automatic load discharge and adjustable slew rate for load control.

Supports fault reporting and under voltage detection to enhance system safety. Compact dimensions: 2.9 mm length, 1.6 mm width, and 900 µm height. Designed for general-purpose power distribution in consumer electronics and peripherals.
