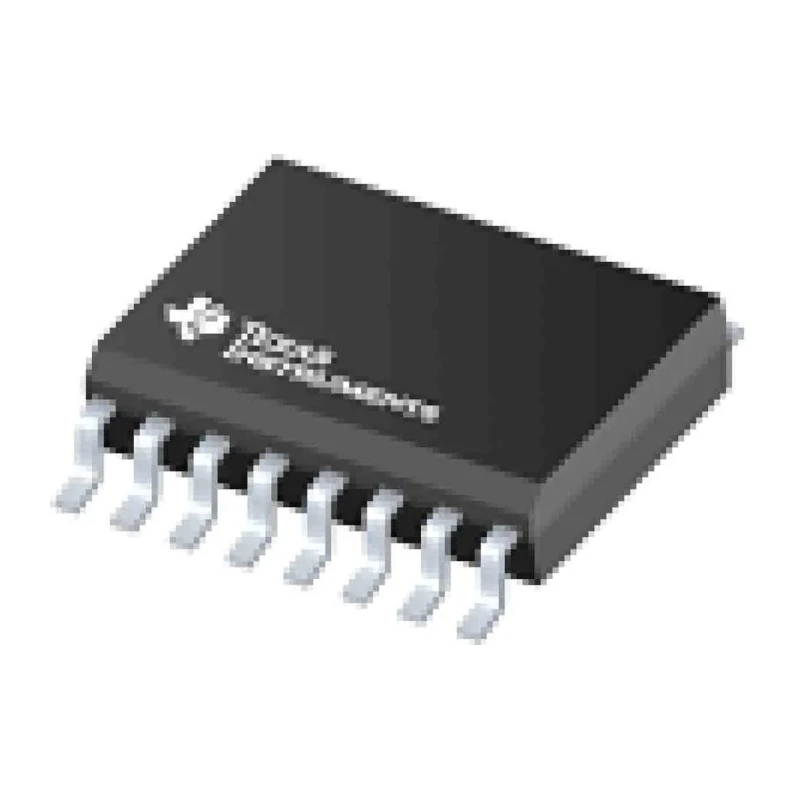

Texas Instruments 4 ADC SAR Architecture 16 bit Resolution 100 ksps Sampling Rate SSOP 16-Pin Surface Mount ADS8341E

The Texas Instruments ADS8341E is a high performance analogue to digital converter (ADC) with SAR architecture designed for precise digital signal processing tasks. This device incorporates 4 individual ADC channels enabling simultaneous or multiplexed measurements with 16-bit resolution, providing highly accurate digital conversions.

It supports both single ended and differential input types, enhancing adaptability across various sensor inputs and measurement scenarios. With a sampling rate of 100 ksps, the ADS8341E is suitable for moderate speed data acquisition systems in industrial, laboratory, and embedded electronics applications.

The component is housed in a 16-pin SSOP surface mount package with compact physical dimensions (5.4mm length, 1.2mm height), facilitating integration into space-constrained printed circuit boards.

Operating over a broad voltage range of 2.7V to 5.25V, and a temperature range from -40°C to 85°C, it ensures robust performance across a variety of environmental conditions. The SPI interface provides efficient communication with microcontrollers and digital signal processors, making it suitable for automated data acquisition and control systems.

This ADC does not have automotive standard certification but adheres to general industrial semiconductor quality benchmarks.

Manufactured in Malaysia, the ADS8341E delivers a dependable solution for analogue to digital conversion in instrumentation, measurement, control systems, and embedded computing applications.

Integrates 4 ADCs for enhanced measurement capability. Supports single ended and differential input types for versatile applications. Surface mount package with 16-pin SSOP form factor. Operates with supply voltage range from 2.7V to 5.25V.

SPi interface type for efficient communication and control. Compact dimensions: length 5.4mm, height 1.2mm, suitable for dense PCB layouts. Wide operating temperature range from -40°C to 85°C ensures reliability in harsh environments.

Manufactured under ADS8341 series standard, no automotive certification. Country of origin Malaysia indicating quality international production. Explore more electronic components in this category at EnvMart for industrial and laboratory use.
