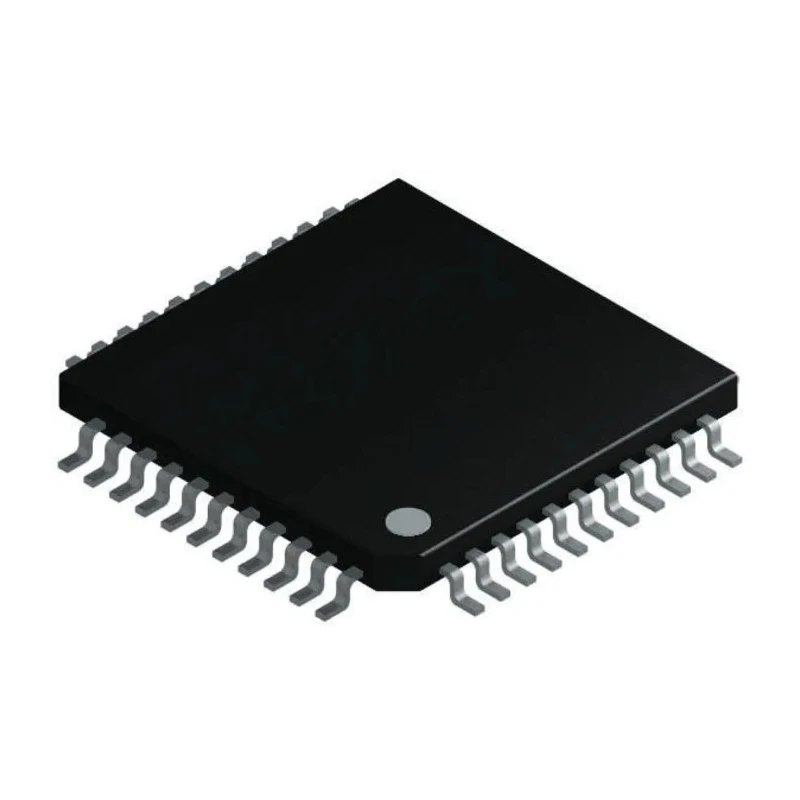

Microchip 12 bit Dual Slope Analogue to Digital Converter 10 sps Surface Mount PQFP 44-Pin TC7109CKW

Microchip TC7109CKW is a high precision 12 bit Dual Slope Analogue to Digital Converter (ADC) designed for reliable and accurate signal conversion in electronic circuits. It offers a sampling rate of 10 samples per second, making it suitable for low-frequency measurement and control applications. The device supports both parallel and serial interface types, providing flexible integration options for various industrial and laboratory systems.

The TC7109CKW is packaged in a compact 44-pin Plastic Quad Flat Pack (PQFP) designed for surface mounting, optimizing PCB space and ease of assembly. Its operating temperature range from 0°C to 70°C makes it ideal for standard industrial environments. The device operates with a supply voltage from -5V to 5V, supporting diverse power supply lines.

This ADC employs a dual slope conversion technique, which enhances accuracy and reduces noise, making it suitable for precision measurement instruments, data acquisition systems, and embedded electronics. The compact size of 14.15mm length and 2.45mm height further assist in efficient design layouts.

Microchip, a recognized leader in semiconductor solutions, manufactures the TC7109CKW series with stringent quality controls in Thailand, delivering reliable and durable components for demanding applications.

Offers a resolution of 12 bits for accurate analog-to-digital conversion. Operates at a sampling rate of 10 samples per second suitable for low frequency applications. Features a dual slope architecture for enhanced accuracy and noise reduction.

Packaged in a 44-pin Plastic Quad Flat Pack (PQFP) ideal for surface mount technology. Supports both parallel and serial interface types for versatile connectivity. Operates reliably in a temperature range of 0°C to 70°C, suitable for standard industrial environments.

Requires a supply voltage range from -5V to 5V accommodating varied power configurations. Compact dimensions of 14.15mm in length and 2.45mm in height ensure easy integration in PCB designs. Manufactured in Thailand with strict quality standards ensuring reliable performance.

This ADC is widely used in electronic measurement, data acquisition, and control applications within industrial automation, laboratory instrumentation, and embedded system designs. The accurate conversion and dual slope architecture enable clear and noise-resistant signal readings.
