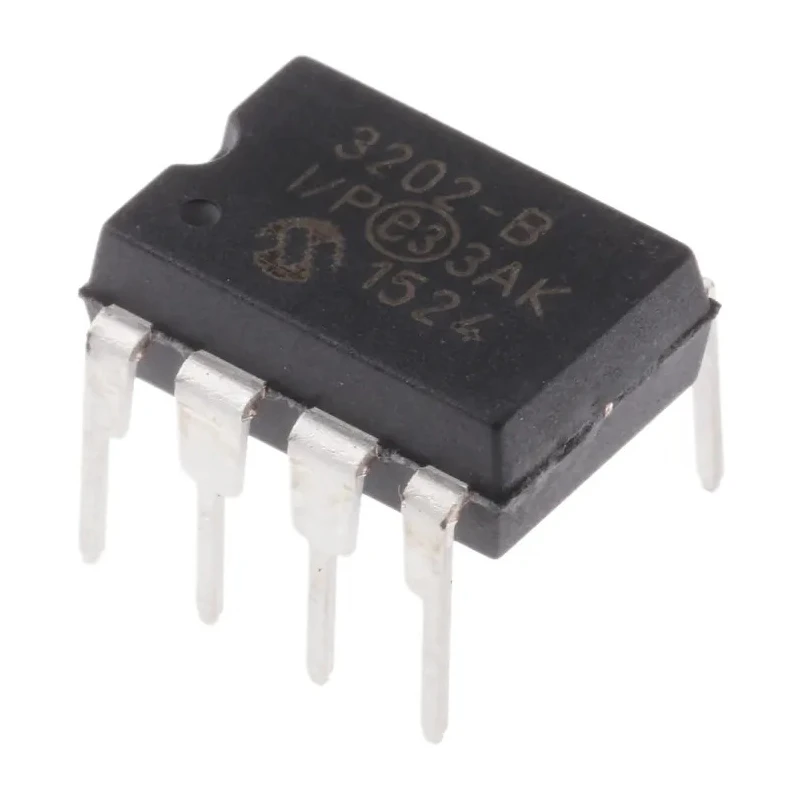

Microchip 2 ADC Channels 12 bit Resolution SAR Analogue to Digital Converter 100 ksps SPI Interface PDIP 8-Pin MCP3202-BI/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip 2 ADC Channels 12 bit Resolution SAR Analogue to Digital Converter 100 ksps SPI Interface PDIP 8-Pin MCP3202-BI/P

Name: Microchip 2 ADC Channels 12 bit Resolution SAR Analogue to Digital Converter 100 ksps SPI Interface PDIP 8-Pin MCP3202-BI/P
Brand: Microchip
SKU: 367600
Price: 5.29 USD
Availability: InStock



Category Analogue to Digital Converters Brand Microchip Condition New

Specifications

Country of Origin	Thailand
Resolution	12 bit
Brand	Microchip
Height	9.14mm
Length	10.16mm
Model	MCP3202-BI/P
Mount Type	Through Hole
Sampling rate	100ksps
Series	MCP3202
Input Type	Voltage
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Interface Type	SPI
Architecture	SAR
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V
Number of ADCs	2

Key Features

Supports SPI digital interface for high-speed data communication.
Operates with a supply voltage ranging from 2.7 V up to 5.5 V.
Designed for through-hole mounting with PDIP package type and 8 pins.
Operational temperature ranges from -40°C to 85°C suitable for automotive applications.
Automotive standard compliant with AEC-Q100 ensuring reliability in harsh environments.
Compact dimensions with 10.16 mm length and 9.14 mm height.
Ideal for accurate voltage input measurements in industrial and electronic circuits.

Product Description

Microchip MCP3202-BI/P is a high-precision 12-bit analogue to digital converter featuring 2 ADC channels based on a successive approximation register (SAR) architecture. It offers a maximum sampling rate of 100 kilo-samples per second (ksps) which allows efficient and rapid voltage conversion for various electronic and industrial applications.

The device is housed in an 8-pin PDIP through-hole package facilitating easy mounting and prototyping. It supports SPI (Serial Peripheral Interface) for seamless digital data communication with microcontrollers and processors, enhancing system integration.

The compact size of 10.16 mm length and 9.14 mm height makes the MCP3202-BI/P suitable for space-constrained applications. Its operational temperature range from -40°C to 85°C makes it suitable for automotive and harsh environment use cases, complying with the AEC-Q100 automotive standard.

Microchip's MCP3202-BI/P is optimized for measuring analog voltages with high accuracy and stability, ideal for instrumentation, industrial automation, data acquisition, and embedded systems.

The converter works reliably over a supply voltage range from 2.7 V to 5.5 V, making it compatible with a wide array of power sources. This robustness and precision make it a preferred choice for laboratory, manufacturing, and automotive electronics sectors.

Supports SPI interface for efficient communication. 12-bit resolution providing precise measurement capability. Withstands operational temperatures from -40°C to 85°C. Meets automotive quality standards (AEC-Q100). Easy to mount with 8-Pin PDIP package.

Compact form factor and low power consumption.

Choose Microchip MCP3202-BI/P for reliable, high-speed analog to digital conversion in electronic designs. Explore more components and technical products in the Environmental Mart Electronics & Electricals section.
