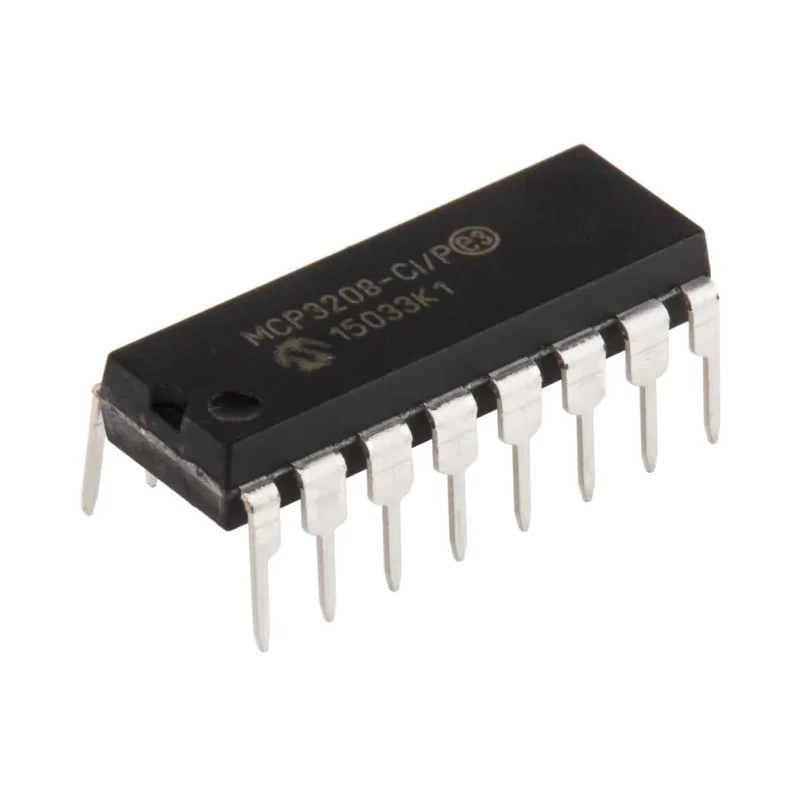

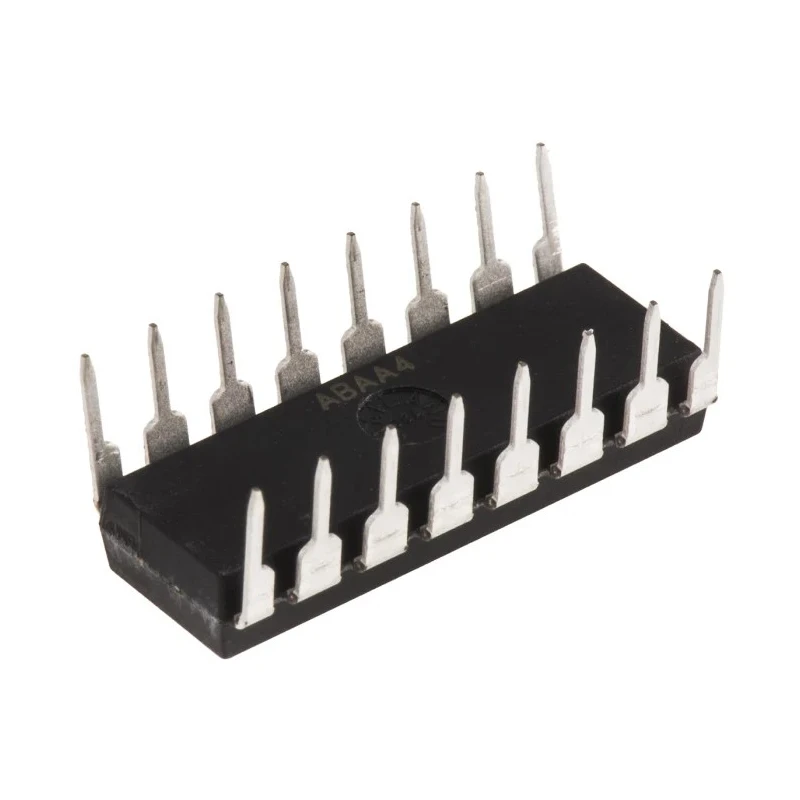

Microchip 8-Channel 12-Bit Successive Approximation Register (SAR) Analog-to-Digital Converter 100 ksps 16-Pin MCP3208-CI/P

Microchip MCP3208-CI/P is a high-performance analog-to-digital converter designed with an 8-channel, 12-bit resolution successive approximation register (SAR) architecture. It operates at a sampling rate of 100 kilo samples per second (ksps), packaged in a 16-pin PDIP through-hole form factor, facilitating easy integration on printed circuit boards. The device communicates via SPI interface, supporting voltage input signals, making it suitable for precise and fast analog data capture in embedded systems.

This ADC offers reliable operation across a broad temperature range from -40°C to 125°C and supports supply voltages between 5V and 5.5V. The robust design complies with the automotive standard AEC-Q100, rendering it apt for automotive and industrial environments where durability and accuracy are critical.

The compact dimensions (19.1 mm length, 3.8 mm height) enable its use in space-constrained applications such as portable instrumentation, sensor data acquisition, and control systems. Being part of Microchip’s renowned MCP3208 series, it combines reliable performance with ease of use in diverse analogue-to-digital conversion tasks.

Key applications include industrial automation, automotive sensor interfacing, laboratory measurement instruments, data logging, and embedded electronics where accurate multi-channel ADC functionality is required. Microchip also provides comprehensive technical documents, design resources, and software support to streamline system integration.

Features 8 independent ADC channels for versatile signal acquisition. Offers 12-bit resolution ensuring precise analog to digital conversion. Supports a maximum sampling rate of 100 kilosamples per second for fast data capture.

Built with SAR architecture providing efficient conversion with low power consumption. Mount type is through-hole with a PDIP package containing 16 pins for easy PCB integration. Operates on a voltage input interface compatible with SPI communication.

Functions reliably in a wide temperature range from -40°C to 125°C for industrial applications. Maximum supply voltage rating is 5.5V with a minimum of 5V ensuring stable operation. Complies with automotive standard AEC-Q100 ensuring robustness in automotive environments.

Physical dimensions include a length of 19.1 mm and height of 3.8 mm suitable for compact designs. Explore EnvMart’s extensive range of semiconductor and analogue-to-digital converter products for industrial and electronic applications.
