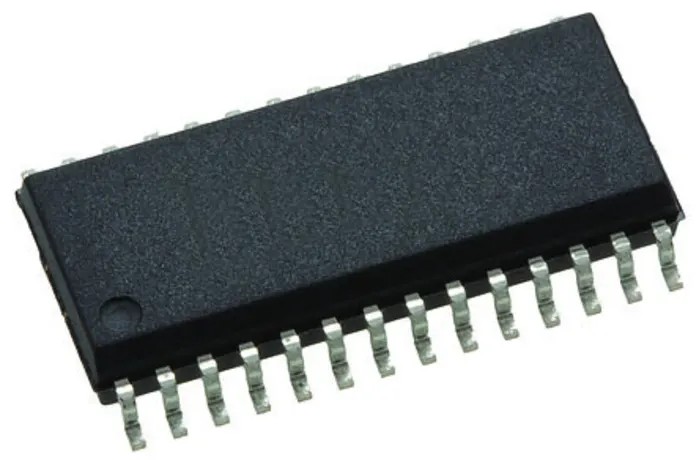

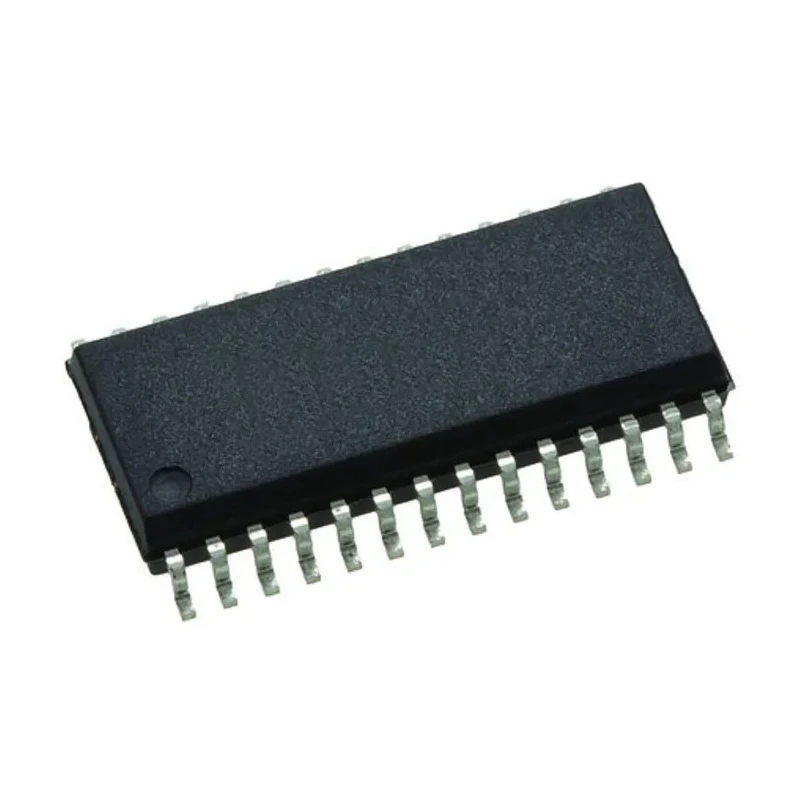

Texas Instruments 4.5-Digit Dual Slope Analog to Digital Converter 3 ksps, 28-Pin SOIC TLC7135CDW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 4.5 Digits |
| Brand | Texas Instruments |
| Height | 2.64mm |
| Length | 18.08mm |
| Model | TLC7135CDW |
| Mount Type | Surface |
| Sampling rate | 3ksps |
| Series | TLC7135 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Interface Type | BCD Output |
| Architecture | Dual Slope |
| Pin Count | 28 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | -8V |
| Number of ADCs | 1 |
Key Features
- Features a dual slope architecture for high accuracy conversion.
- Operates with a single ADC and a resolution of 4.5 digits.
- Surface mount device available in a 28-pin SOIC package.
- Input type is voltage with BCD output interface for easy integration.
- Operating temperature ranges from 0°C to 70°C ensuring reliability.
- Supports a minimum supply voltage of -8V and maximum of 6V.
- Compact physical dimensions with a length of 18.08 mm and height of 2.64 mm.
- Ideal for industrial and laboratory measurement applications requiring precise analog to digital conversion.
Product Description
Texas Instruments TLC7135CDW is a precision 4.5-digit dual slope analog to digital converter (ADC) designed for high-accuracy voltage measurement in industrial, laboratory, and electronic equipment applications. This device integrates a single ADC with a 3 ksps sampling rate and features a surface mount 28-pin SOIC package for efficient PCB design and assembly.
The converter utilizes a dual slope architecture, providing stable and noise-immune analog to digital conversion with a resolution of 4.5 digits. The input interface is voltage based, and the output is in BCD format, making it compatible with various digital systems and microcontrollers. It operates reliably over a temperature range from 0°C to 70°C and supports supply voltages from -8V up to 6V.
Measuring 18.08 mm in length and 2.64 mm in height, the compact SOIC package allows for efficient space utilization on circuit boards. The component is not certified for automotive use but is suitable for a wide variety of non-automotive industrial and commercial applications including data acquisition, instrumentation, and control devices.
This ADC is ideal for engineers and designers working on projects that require precise voltage measurement and digital conversion with stable performance.
Key features include its 4.5-digit resolution, dual slope architecture, surface mount capability, and robust operating temperature range. It complements other semiconductor components in measurement and control applications.
Features a dual slope architecture for high accuracy conversion. Operates with a single ADC and a resolution of 4.5 digits. Surface mount device available in a 28-pin SOIC package. Input type is voltage with BCD output interface for easy integration.
Operating temperature ranges from 0°C to 70°C ensuring reliability. Supports a minimum supply voltage of -8V and maximum of 6V. Compact physical dimensions with a length of 18.08 mm and height of 2.64 mm. Ideal for industrial and laboratory measurement applications requiring precise analog to digital conversion.
No automotive or special certifications are required for this component. Suitable for use in consumer electronics, instrumentation, and control systems. Browse EnvMart’s extensive semiconductor selection for complementary components and solutions by Texas Instruments and other top manufacturers.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sampling rate of this model is 3 ksps (kilo samples per second).
It accepts voltage as the input type, which is suitable for various measurement applications.
This model comes in a surface mount 28-pin SOIC package, facilitating efficient PCB design and assembly.
It operates reliably within a temperature range of 0°C to 70°C.
The dimensions are 18.08 mm in length and 2.64 mm in height.
The minimum supply voltage is -8V, while the maximum is 6V.
This unit integrates a single ADC for its operation.
No, this component is not certified for automotive use but is suitable for various non-automotive applications.
