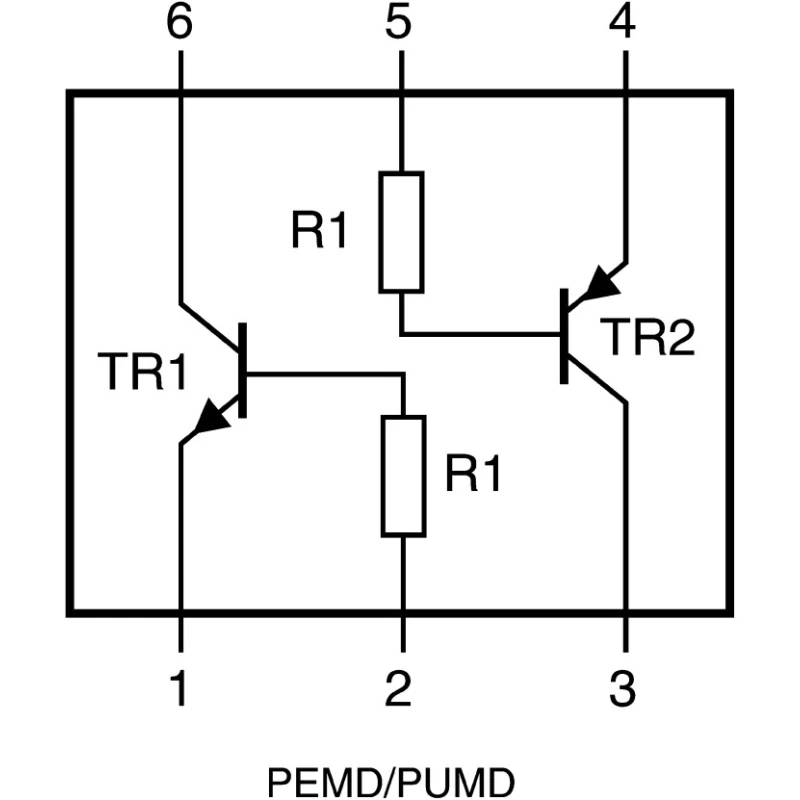

Nexperia Digital Transistor 100 mA NPN + PNP 50 V 6-Pin UMT PUMD2,115

The Nexperia PUMD2,115 is a digital transistor combining NPN and PNP transistors in a 6-pin UMT surface-mounted package, offering a maximum DC collector current of 100 mA and collector emitter voltage of 50 V.

This device has integrated bias resistors, reducing component count and simplifying circuit designs for digital switching applications. It supports a maximum power dissipation of 200 mW, making it suitable for low power peripheral driver functions and control of IC inputs.

With a maximum transition frequency of 230 MHz and a minimum DC current gain (hFE) of 60, the transistor enables efficient high-speed switching. It operates reliably within a temperature range of 0°C to 150°C, complying with RoHS standards and the automotive AEC-Q101 qualification, ensuring automotive-grade dependability.

The compact UMT package measures 2.2 mm in length, 1.35 mm in width, and 1.1 mm in height, making it ideal for surface mounting and high-density PCB layouts.

This transistor is designed for applications requiring low current peripheral drivers, IC input control, and replacement of general-purpose transistors in digital electronic systems.

Supports a maximum collector emitter voltage of 50 V. Contains built-in bias resistors for circuit simplification. Maximum power dissipation rated at 200 mW. Maximum transition frequency of 230 MHz for fast switching. Wide operating temperature range of 0°C to 150°C.

Isolated transistor configuration with NPN + PNP polarity. Compact 6-pin UMT surface mount package. Automotive qualification with AEC-Q101 standard.

This product originates from Malaysia and is intended for use in industrial, automotive, consumer electronics, and laboratory applications. For a wide selection of Digital Transistors and semiconductor components, explore the Electronics & Electricals category at EnvMart.
