Nexperia 2-Element Bi-Directional ESD Protection Diode, 2-Pin DSN-0603 PESD5V0R1BSFYL

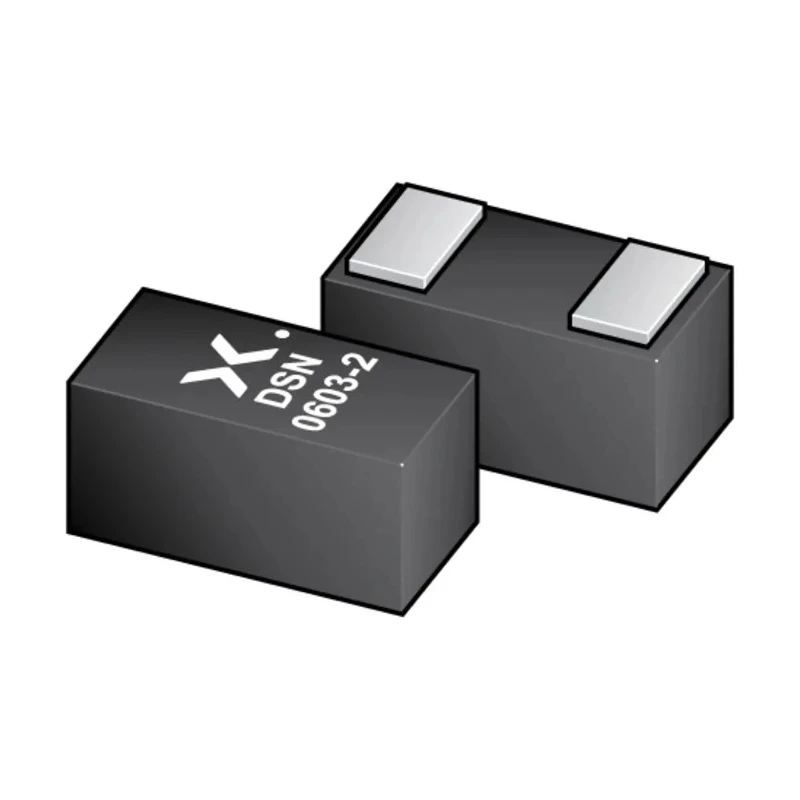

Nexperia PESD5V0R1BSFYL is a 2-element bi-directional electrostatic discharge (ESD) protection diode housed in an ultra small 2-pin DSN-0603 surface mount package measuring 0.62 mm length, 0.32 mm width, and 0.29 mm height. It belongs to the TrEOS Protection family, which is optimized to safeguard very sensitive high-speed semiconductor interfaces against ESD pulses with a high level of robustness.

This device offers bidirectional ESD protection of one line with an extremely low diode capacitance of 0.1 pF, making it suitable for high frequency applications where minimal signal distortion is required. It complies with IEC 61000-4-2, providing ESD protection up to ±10 kV. Its electrical specifications include a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V, with a clamping voltage of 5 V to clamp transient voltages effectively.

The PESD5V0R1BSFYL supports a maximum peak pulse current of 4.5 A, with a maximum reverse leakage current of only 50 nA ensuring low leakage during normal operation. It is rated for operation over a wide temperature range from -40°C up to 125°C, suitable for demanding industrial and commercial electronics environments. The diode is designed in a dual element chip configuration to provide efficient two-directional ESD protection.

Bidirectional ESD Protection Diode for sensitive high-speed interfaces. Ultra low diode capacitance of 0.1 pF to minimize signal distortion. Compact DSN-0603 small surface mount package for space-constrained PCB designs.

Robust performance with ESD protection up to ±10 kV (IEC 61000-4-2 compliant). Wide operating temperature range: -40°C to 125°C. Maximum peak pulse current capacity of 4.5 A. Extremely low leakage current of 50 nA reduces power consumption.

Dual element chip ensures effective bidirectional protection.

This diode is ideal for industrial, telecommunications, consumer electronics, and computing devices requiring reliable transient voltage suppression and ESD protection. It helps improve system reliability by preventing damage to sensitive semiconductor components during electrostatic events.
