| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1IVN24-LSYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1IVN24-LS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 2 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 3.5A |
| Maximum Reverse Leakage Current | 50nA |

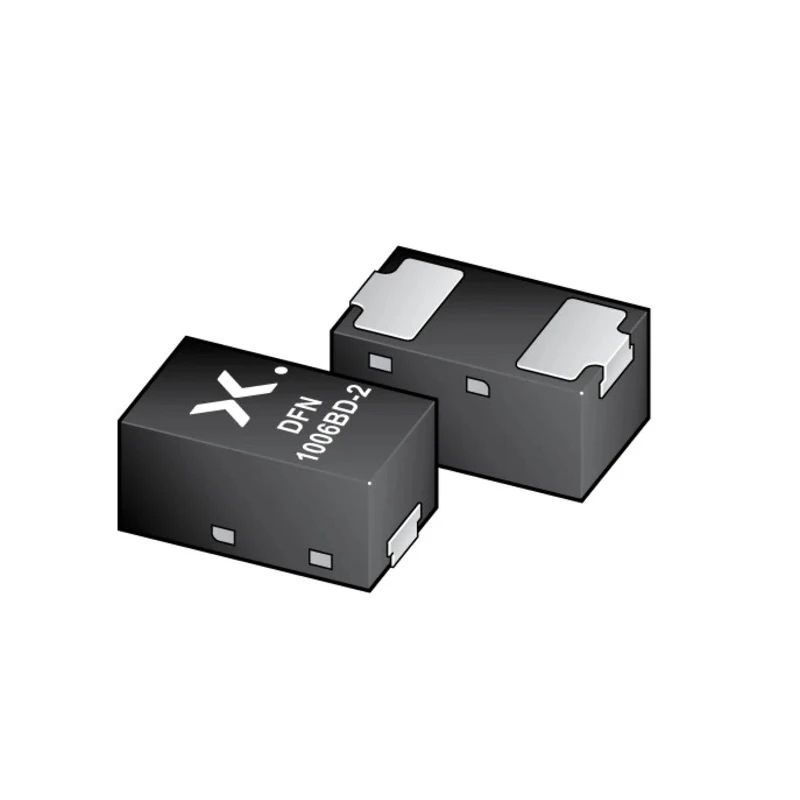

Nexperia PESD1IVN24-LSYL is a bi-directional ESD Protection Diode designed to safeguard automotive and industrial electronic circuits from damaging electrostatic discharges. This diode comes in a leadless ultra-small DFN1006BD-2 plastic surface-mount package with side-wettable flanks, facilitating automated assembly and reliable solder joints.
It supports a maximum peak pulse current of 3.5A and clamps transient voltages at 42V, effectively protecting vehicle bus lines and sensitive components.
With a reverse stand-off voltage of 24V and breakdown voltage of 25.5V, it operates reliably within automotive network requirements. The device withstands operating temperatures from -65°C to +150°C, confirming its ruggedness in automotive environments.
The ultra-low leakage current of less than 50 nanoamps reduces energy loss, enhancing efficiency. Compliance with AEC-Q101 automotive standards and robust ESD protection tested to IEC 61000-4-2 enables high reliability in demanding industrial and automotive applications.
Bi-directional protection against electrostatic discharge and transient voltages. Compact DFN1006BD-2 package size for space-constrained designs. Peak pulse current of 3.5A ensures effective transient absorption. Wide operational temperature range from -65°C to 150°C.
Extremely low leakage current for energy efficiency. Meets automotive standard AEC-Q101 and IEC 61000-4-2. Ideal for automotive in-vehicle network bus line protection. Precise dimensions support high-density PCB integration.
This diode is the optimal choice for protection in automotive, industrial, and consumer electronics applications seeking reliable ESD and transient voltage defense. Explore more electronic components and protective semiconductor devices with EnvMart for your industrial and commercial needs.
