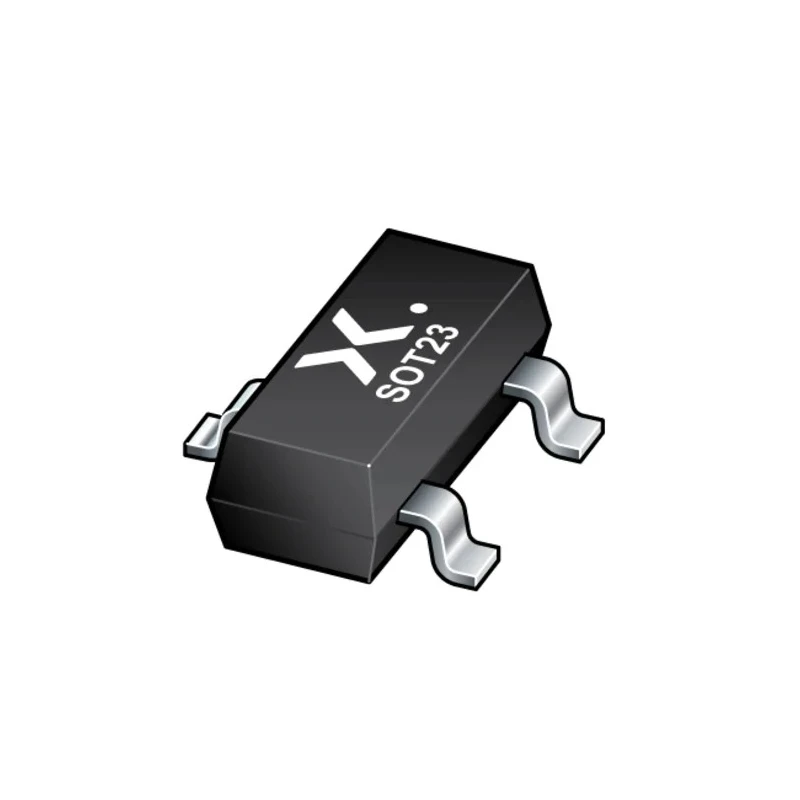

Nexperia Uni-Directional ESD Protection Diode, 3-Pin SOT-23, 3.3 V Reverse Stand-off Voltage, 4 A Peak Pulse PESD3V3F2UTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | PESD3V3F2UTR |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD3V3F2UT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 3.3V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 4.2V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Designed to protect high-speed data lines from ESD and transient damage.
- Features a maximum reverse stand-off voltage of 3.3 volts.
- Capable of handling peak pulse current up to 4 amperes.
- Low clamping voltage of 3.3 volts ensures efficient surge protection.
- Ultra low capacitance at 0.56 pF for minimal signal interference.
- Wide operating temperature range from -65°C up to 150°C.
- Compliant with IEC 61000-4-2 standard for electrostatic discharge immunity.
- Compact dimensions of 2.9 mm length, 1.3 mm height, and 1 mm width for surface mounting.
Product Description
Nexperia PESD3V3F2UTR Uni-Directional ESD Protection Diode is engineered for industrial and electronic applications requiring reliable electrostatic discharge protection. Installed in a SOT-23 (TO-236AB) surface-mounted package, it safeguards two high-speed data lines against ESD and transient voltage damage.
This device features a maximum reverse stand-off voltage of 3.3 volts and can safely handle peak pulse current up to 4 amperes. It provides a low clamping voltage of 3.3 volts at a test current of 8 amperes, ensuring superior surge suppression performance.
The diode offers ultra low capacitance of 0.56 picofarads, which minimizes signal distortion and is suitable for high-frequency data lines. Its broad operating temperature range from -65°C to 150°C ensures reliable operation under demanding industrial and automotive conditions.
Certified to IEC 61000-4-2 for ESD immunity and compliant with RoHS directives, this diode also meets the stringent AEC-Q101 automotive standard. Its compact SOT-23 package with dimensions of 2.9 mm length, 1.3 mm height, and 1 mm width facilitates easy integration onto printed circuit boards.
Typical applications include protection of sensitive electronic components and circuits in automotive electronics, telecommunications, and industrial control systems. The diode enhances device robustness against ESD events and prolongs system reliability.
Designed to protect high-speed data lines from ESD and transient damage. Maximum reverse stand-off voltage of 3.3 volts. Peak pulse current capacity of 4 amperes. Low clamping voltage of 3.3 volts for efficient surge protection.
Ultra low capacitance (0.56 pF) to reduce signal interference. Wide operating temperature range (-65°C to 150°C). IEC 61000-4-2 and RoHS compliant for quality and environmental standards. Compact 3-pin SOT-23 surface mount package.
Meets automotive AEC-Q101 quality standard. Explore more reliable semiconductor products and ESD protection solutions in the Electronics & Electricals category on EnvMart for your industrial and automotive needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage for this model is 3.3 volts.
It can handle a peak pulse current of up to 4 amperes.
The clamping voltage at a test current of 8 amperes is 3.3 volts.
This diode features an ultra low capacitance of 0.56 picofarads.
The dimensions of the SOT-23 package are 2.9 mm in length, 1.3 mm in height, and 1 mm in width.
It operates within a temperature range of -65°C to 150°C.
Yes, it is compliant with IEC 61000-4-2 for ESD immunity and RoHS directives.
This model meets the AEC-Q101 automotive quality standard.
This diode is designed for surface mounting.
The minimum breakdown voltage is 4.2 volts.
The maximum reverse leakage current is 50 nA.
It is suitable for protecting sensitive electronic components in automotive electronics, telecommunications, and industrial control systems.
