Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1110D-3, 24 V Reverse Stand-off Voltage, 1.4 A Peak PESD2CANFD24U-QBZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1110D-3, 24 V Reverse Stand-off Voltage, 1.4 A Peak PESD2CANFD24U-QBZ

Name: Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1110D-3, 24 V Reverse Stand-off Voltage, 1.4 A Peak PESD2CANFD24U-QBZ
Brand: Nexperia
SKU: 405487
Price: 0.16 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	1.1mm
Model	PESD2CANFD24U-QBZ
Width	0.48mm
Mount Type	Surface
Series	PESD2CANFD24U
Maximum Operating Temperature	150°C
Package Type	DFN1110D-3
Minimum Operating Temperature	-65°C
Standards/Approvals	IEC 61000-4-2, RoHS
Pin Count	3
Clamping Voltage VC	43V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	25.5V
Maximum Reverse Stand-off Voltage Vwm	24V
Maximum Peak Pulse Current Ippm	1.4A
Maximum Reverse Leakage Current	50nA

Key Features

Designed for ESD protection on two automotive bus lines in bi-directional configurations.
Compact DFN1110D-3 package with side wettable flanks ensures easy PCB mounting.
Low capacitance of 3.5 pF minimizes signal distortion.
Withstands ESD events up to 15 kV according to IEC 61000-4-2 standards.
Maximum reverse stand-off voltage is 24 V for effective voltage clamping.
Peak pulse current rating of 1.4 A supports transient surge protection.
Operates reliably from -65°C to 150°C for automotive applications.
AEC-Q101 qualified ensuring automotive quality compliance.

Product Description

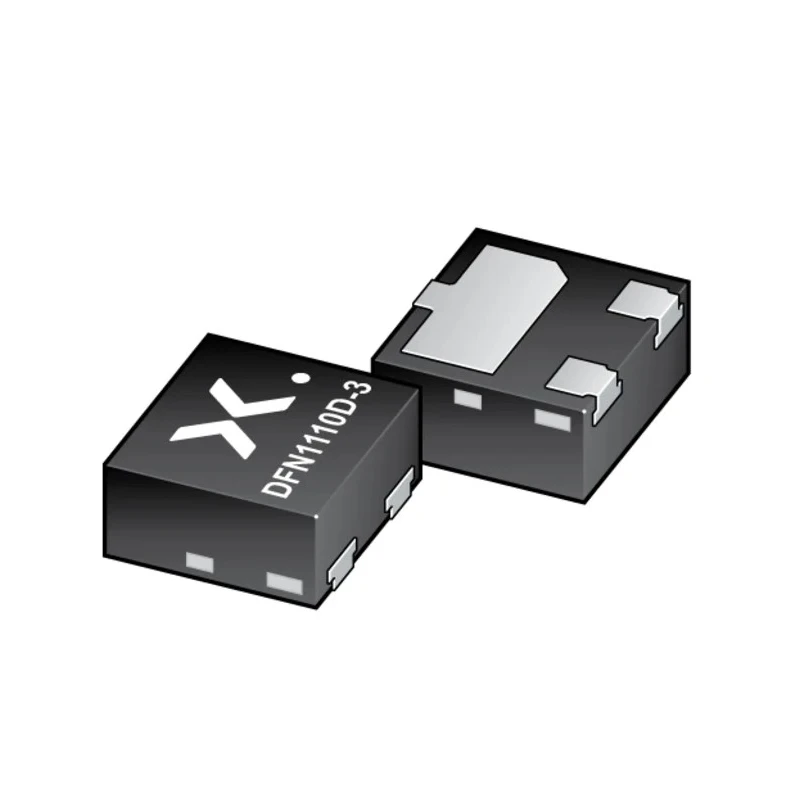

Nexperia PESD2CANFD24U-QBZ bi-directional ESD protection diode is a surface-mounted device designed to safeguard automotive in-vehicle network bus lines against electrostatic discharge damage. It comes in an ultra-small 3-pin DFN1110D-3 (SOT8015) package featuring side wettable flanks for enhanced PCB solder joint reliability.

This diode offers a minimum breakdown voltage of 25.5 V and a maximum reverse stand-off voltage of 24 V, ensuring robust voltage protection. The maximum peak pulse current is rated at 1.4 A with a clamping voltage up to 43 V to efficiently mitigate transient voltage spikes.

Engineered for automotive environments, it supports operating temperatures ranging from -65°C to 150°C. The device exhibits exceptionally low capacitance of 3.5 pF, which is critical for maintaining signal integrity in high-speed bus lines. It meets IEC 61000-4-2 and RoHS standards and is AEC-Q101 qualified for automotive reliability.

This diode is ideal for applications requiring compact, reliable ESD protection for CAN bus lines and other high-speed data lines within automotive and industrial electronics. It helps prevent damage from electrostatic discharges and electrical fast transients, contributing to enhanced system longevity and performance.

Bi-directional ESD protection for automotive bus lines. Compact DFN1110D-3 leadless SMD package. Low capacitance minimizes signal interference. High ESD protection up to 15 kV (IEC 61000-4-2). AEC-Q101 qualified for automotive use.

Wide operating temperature range from -65°C to 150°C. Low leakage current for energy efficiency.

Choose Nexperia ESD Protection Diodes for critical automotive and industrial electronics where reliable surge protection and minimal signal distortion are essential. Explore more options in our semiconductor TVS diode range at EnvMart for your design and manufacturing needs.
