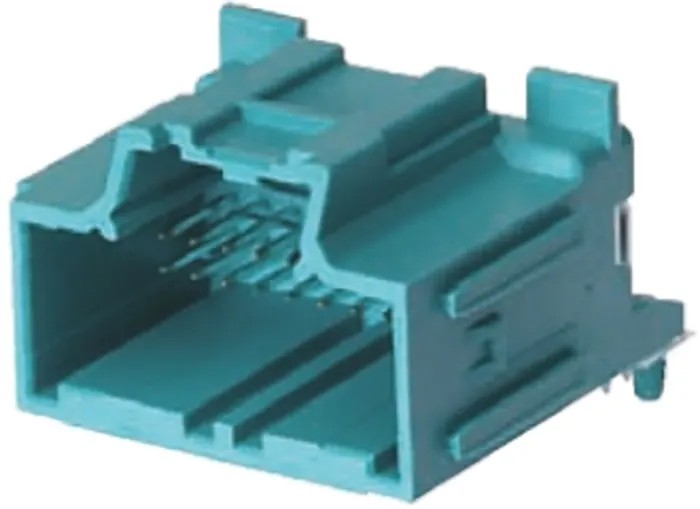

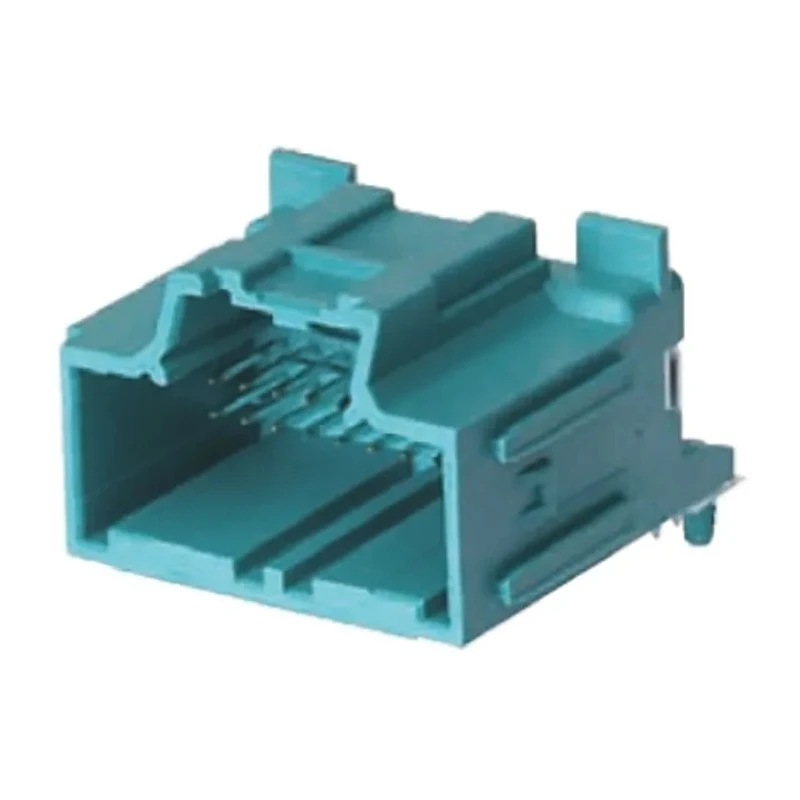

Molex Stac64 Automotive Connector Male Green Through Hole 20 Way Crimp Termination 34691-0203
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Colour | Green |
| Current | 10A |
| Height | 22.05mm |
| Depth | 31.89mm |
| IP Rating | IP67 |
| Width | 34.04mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Stac64 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Contact Plating | Tin |
| Number of Contacts | 20 |
Key Features
- Features a 20 contact PCB connector suitable for automotive applications.
- Constructed with high-temperature thermoplastic housing for durability.
- Made with brass contacts plated with tin for reliable conductivity.
- Supports a current rating of 10A and has an IP67 protection rating.
- Designed with a 2-row, through hole mount for easy PCB assembly.
- Operates within a temperature range of -40°C to 100°C for robust performance.
- Compatible with the 34729 series receptacles for stacked configurations.
- Ideal for automotive and non-automotive electrical modules including instrument panels and lighting.
Product Description
Molex 34691-0203 Stac64 automotive connector male green through hole 20 way crimp termination is a high-quality electrical connector designed for automotive and transportation electronics assembly.
This connector features a durable housing constructed from high temperature thermoplastic resistant to infra red and wave solder processes as per Molex specifications. The male contacts are brass with tin plating to ensure low resistance and reliable electrical performance.
With a 20-contact, 2-row configuration mounted through hole on PCBs, it supports a maximum current of 10 amperes and carries an IP67 ingress protection rating, suitable for harsh environments.
Operating temperature ranges from -40°C to 100°C enable its application in demanding automotive interiors such as radios, instrument panels, and interior lighting modules as well as non-automotive transportation electronic systems.
20 contact PCB connector for automotive use. Thermoplastic housing suitable for high-temperature soldering. Brass contacts with tin plating for durability. 10A current rating with IP67 protection. Through hole mount with 2 rows for stable PCB installation.
Temperature range of -40°C to 100°C. Green color for easy identification. Designed to mate with Molex 34729 series receptacles. Applications include automotive interior lighting and electronics. Manufactured in China, ensuring consistent quality.
This Automotive Connector is an integral component in industrial, automotive manufacturing, and electronic assembly sectors, providing secure and reliable electrical connections in complex wiring systems.
Explore more in the Electronics Components category on EnvMart to find compatible products and accessories from Molex and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 10A.
It has an IP67 protection rating, making it suitable for harsh environments.
The connector has a height of 22.05mm, a width of 34.04mm, and a depth of 31.89mm.
It operates within a temperature range of -40°C to 100°C.
The housing is made from high-temperature thermoplastic, and the contacts are brass plated with tin.
This model features 20 contacts in a 2-row configuration.
It utilizes crimp termination for secure connections.
Yes, it is designed to mate with Molex 34729 series receptacles for stacked configurations.
This connector is designed for through hole mounting on PCBs.
It is ideal for automotive applications such as instrument panels and interior lighting, as well as non-automotive transportation electronic systems.
It is manufactured in China.
The connector is green, which aids in easy identification.
