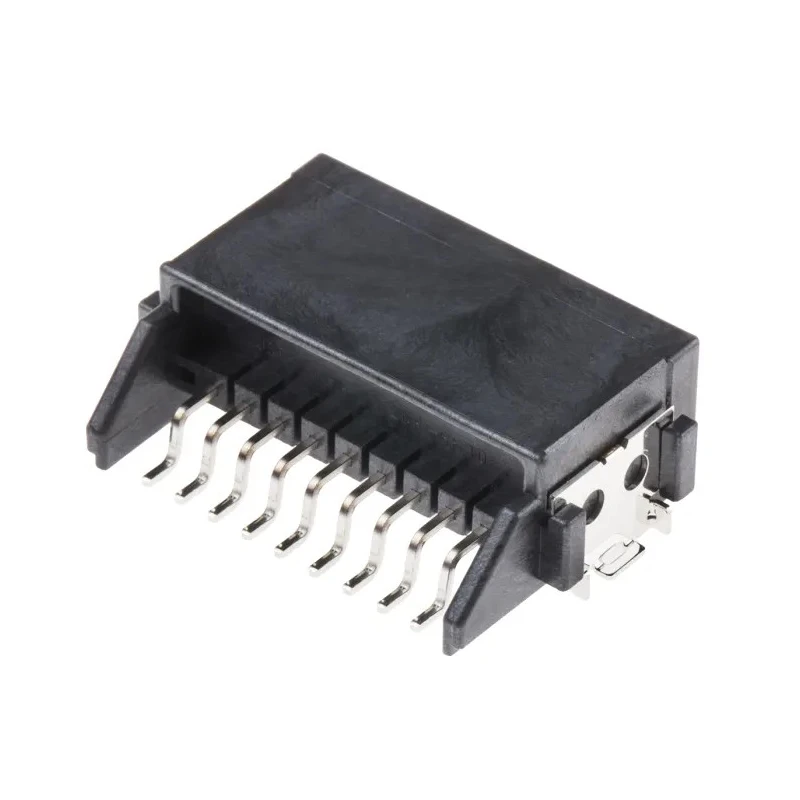

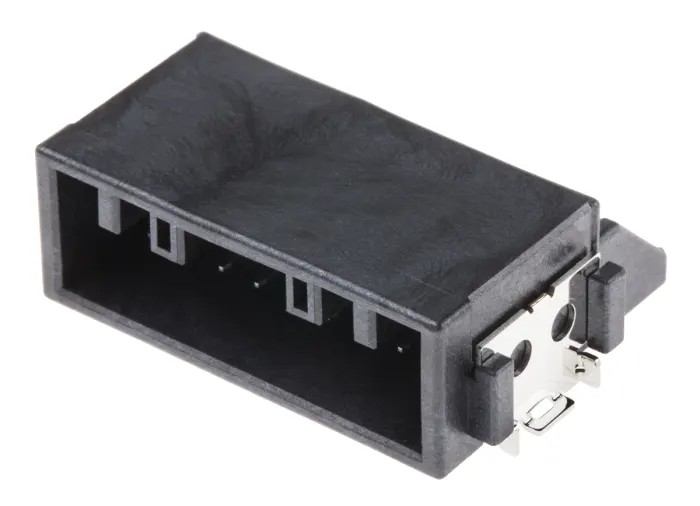

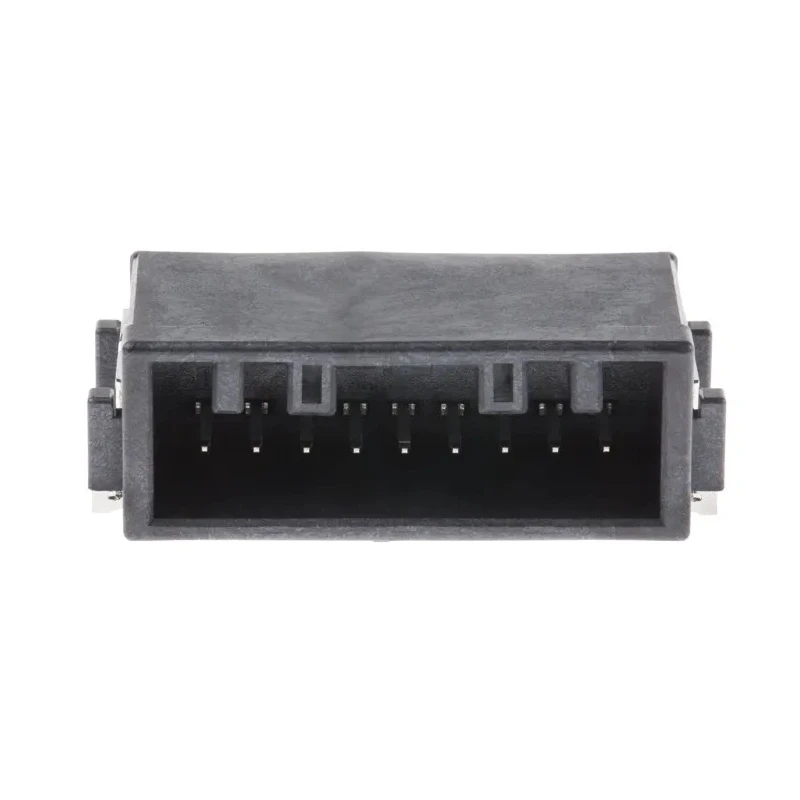

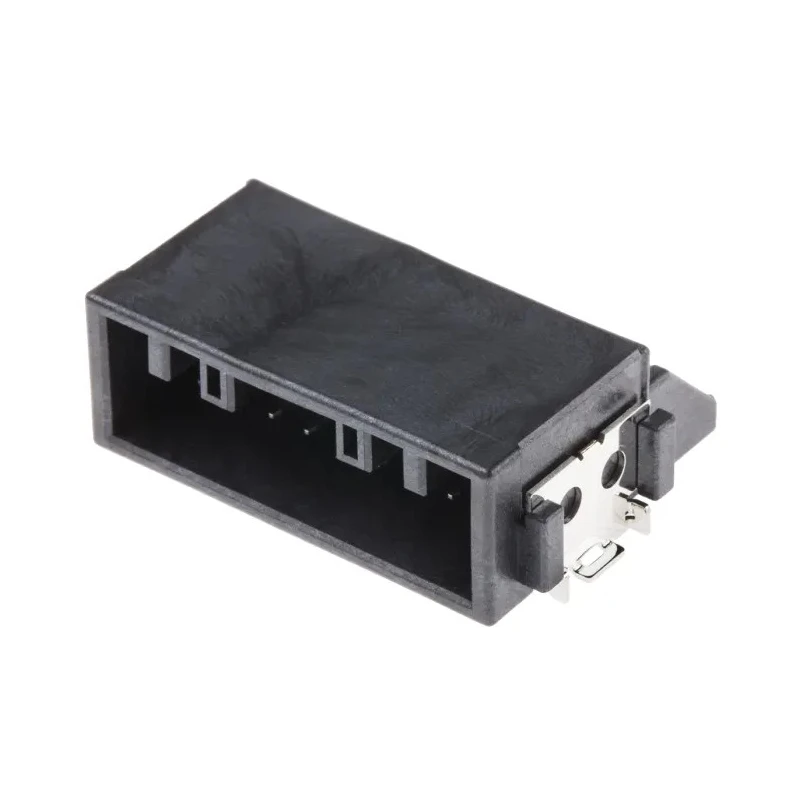

JST HCH Automotive Connector Male Black Through Hole 9 Way 5A Current Solder Termination SM09B-HCHK-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST HCH Automotive Connector Male Black Through Hole 9 Way 5A Current Solder Termination SM09B-HCHK-TB(LF)(SN)



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Black
Current	5A
Height	10.9mm
Model	SM09B-HCHK-TB(LF)(SN)
Depth	21.8mm
Width	32.3mm
Gender	Male
Mount Type	Through Hole
Housing Material	Glass Filled Liquid Crystal Polymer
Contact Material	Brass
Series	HCH
Termination Type	Solder
Maximum Operating Temperature	120°C
Sub Type	HCH Connector
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Nickel over Tin
Number of Contacts	9

Key Features

Features a 2.54 mm pitch for PCB wire to board connections.
Rated for 5 amp current capacity, suitable for automotive electrical applications.
Constructed with brass contacts plated with nickel over tin for durability.
Housing made from glass filled liquid crystal polymer ensuring ruggedness and a compact design.
Operates reliably within a temperature range from -40°C to 120°C.
Designed with a reinforcing tab for secure connection in high vibration conditions.
Single row, 9 contact male connector with black color.
Meets RoHS compliance standards, promoting environmental safety.

Product Description

JST SM09B-HCHK-TB(LF)(SN) is a high-quality male automotive connector featuring a 9 way solder termination and through hole mount suitable for automotive electrical systems requiring reliable wire to board connections.

This connector belongs to the HCH series and is characterized by a 2.54 mm pitch to mate efficiently with corresponding female cable housings. It is constructed with a glass filled liquid crystal polymer housing which delivers durability and compactness ideal for miniaturized, low-profile applications.

The brass contacts are plated with nickel over tin, providing excellent conductivity and resistance to corrosion, ensuring long-term performance even in high vibration environments. Additionally, the reinforcing tab enhances connection security in automotive applications where vibration and mechanical stress are common concerns.

With an operating temperature range from -40°C to +120°C, this connector is suitable for use in a variety of automotive and industrial environments. It carries a current rating of 5 amps, making it fit for power delivery needs within automotive electrical systems.

Features a 9 way single row male connector with black housing. Utilizes solder termination designed for through hole mounting on PCBs. Constructed of durable glass filled liquid crystal polymer and brass contacts. Contact plating of nickel over tin ensures electrical and mechanical reliability.

Compliant with RoHS standards for environmental safety. Designed for use in automotive applications requiring vibration resistant and compact connectors. Provides secure connections with a reinforcing tab in high vibration scenarios.

Compact and miniaturized design fits modern automotive electronic packaging. Manufactured in Japan, certifying quality and performance standards.

This connector is ideal for automotive, industrial, and electronic component applications where reliable and durable electrical connections are mandatory. Its rugged design and compact footprint make it suitable for use in a wide range of electronic assemblies, particularly in automotive wiring harnesses and PCB interconnects.

Explore other Automotive Connectors and electronic components for your projects at EnvMart.
