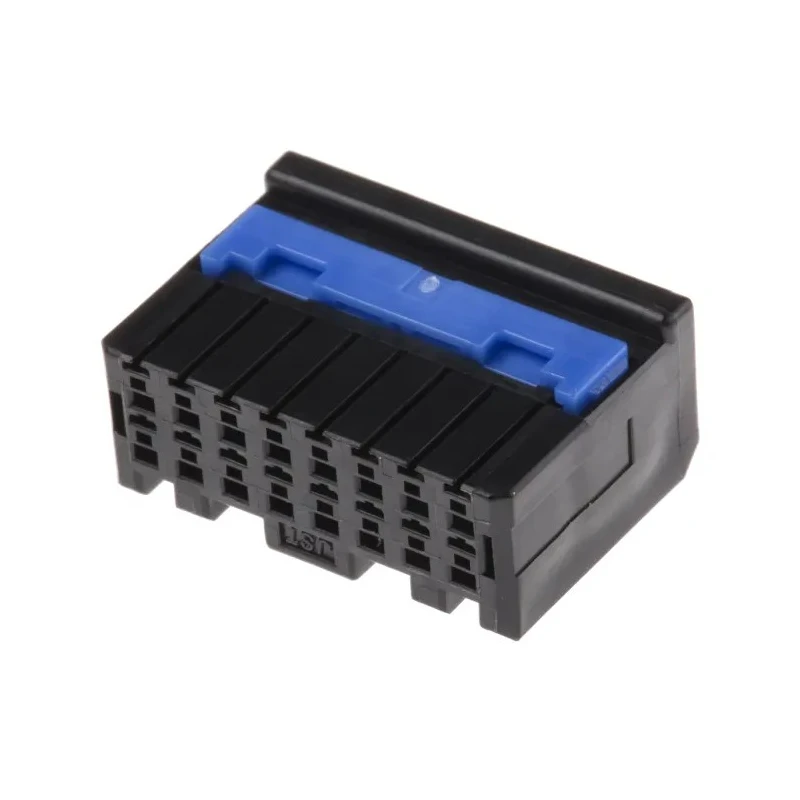

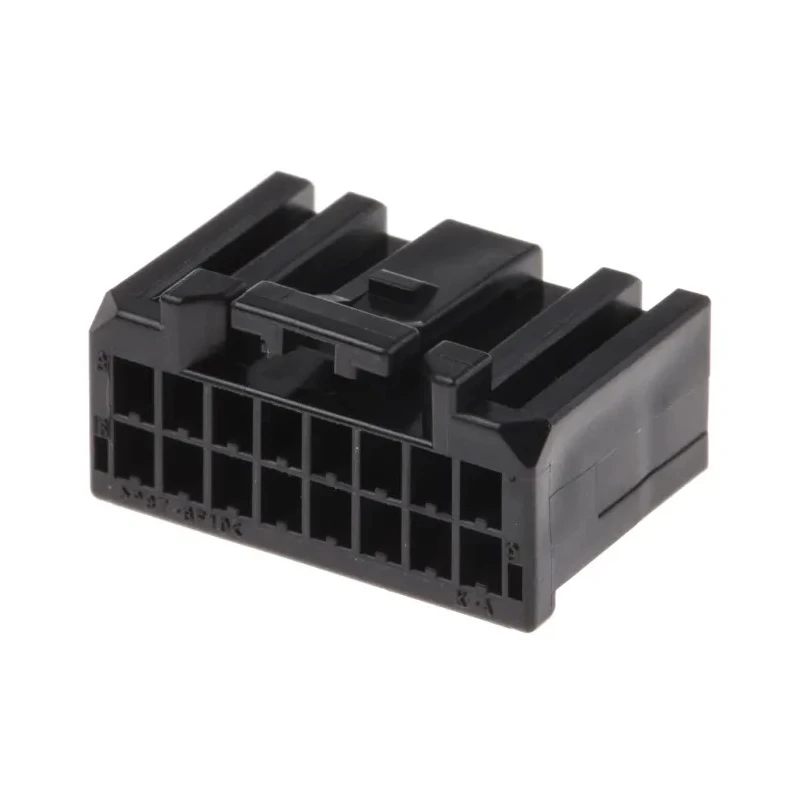

JST CPT Automotive Connector Female Black Surface 16 Way Crimp Termination 16CPT-B-2A

Free Delivery in India | Lowest Global Shipping Charges

JST CPT Automotive Connector Female Black Surface 16 Way Crimp Termination 16CPT-B-2A



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Black
Current	3A
Height	9.1mm
Model	16CPT-B-2A
Depth	12.5mm
Width	18mm
Gender	Female
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Brass
Series	CPT
Termination Type	Crimp
Maximum Operating Temperature	100°C
Sub Type	CPT Connector
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	16

Key Features

Female connector designed for surface mounting with a 16 contact count.
Crimp termination type supporting 0.3 mm² to 1.4 mm² cable sizes.
Operates reliably between -40°C and 100°C temperature range.
Manufactured from fibreglass reinforced polybutylene terephthalate housing material.
Contacts are brass plated with gold over nickel for optimum conductivity and corrosion resistance.
Compact size with 2-row arrangement in a 2.0 mm pitch.
Supports current rating up to 3 amperes.
Suitable for space-critical automotive electrical wiring applications.

Product Description

JST 16CPT-B-2A CPT Automotive Connector Female is a durable, compact 16-way surface mount connector designed for vehicle electrical systems and other demanding environments. It features a crimp termination type that supports cable sizes from 0.3 mm² to 1.4 mm², ideal for miniaturized, low-profile wire-to-board connections.

The connector housing is made from fibreglass reinforced polybutylene terephthalate (PBT), ensuring ruggedness and environmental resistance across a wide temperature range of -40°C to +100°C. The two-row configuration with 2.0 mm pitch and gold over nickel plated brass contacts guarantees reliable electrical performance and corrosion resistance, supporting currents up to 3 amperes.

This series accepts compact female terminals with secure crimp locking, making the connector suitable for critical automotive wiring assemblies where space is limited. The included cord eases installation, and the product fully complies with RoHS directives, supporting environmentally responsible manufacturing practices.

Female connector designed for surface mounting with a 16 contact count. Crimp termination type supporting 0.3 mm² to 1.4 mm² cable sizes. Operates reliably between -40°C and 100°C temperature range. Manufactured from fibreglass reinforced polybutylene terephthalate housing material.

Contacts are brass plated with gold over nickel for optimum conductivity and corrosion resistance. Compact size with 2-row arrangement in a 2.0 mm pitch. Supports current rating up to 3 amperes. Suitable for space-critical automotive electrical wiring applications.

Black color housing with included cord for easy integration. Complies with RoHS standards.

This automotive connector is suitable for use in automotive manufacturing, electrical control assemblies, and other industry applications requiring reliable, high-density connectors. Its compact design ensures it fits into confined spaces without sacrificing performance.
