JST CPT Automotive Connector Male Black Surface Mount 16 Contacts 3A Current SM16B-CPTK-1A-TB

Free Delivery in India | Lowest Global Shipping Charges

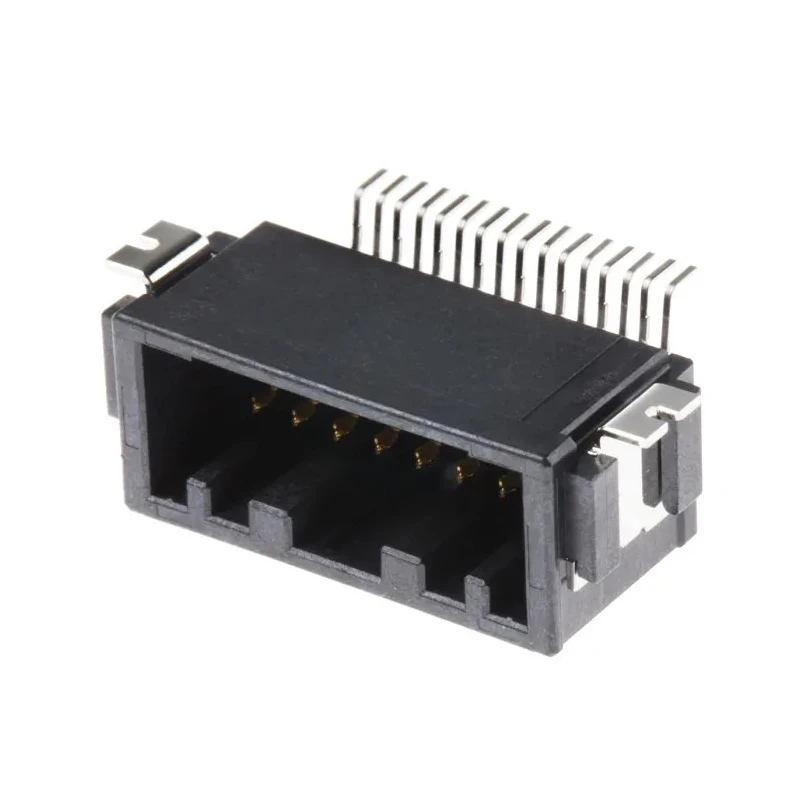

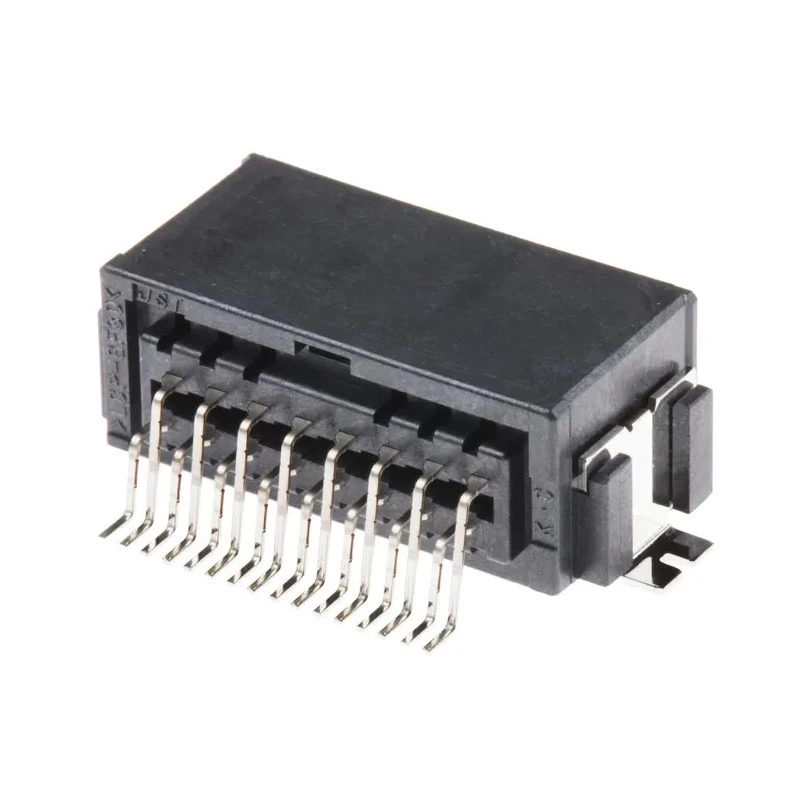

JST CPT Automotive Connector Male Black Surface Mount 16 Contacts 3A Current SM16B-CPTK-1A-TB



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Diameter	1.4mm
Brand	JST
Colour	Black
Current	3A
Height	9.3mm
Model	SM16B-CPTK-1A-TB
Depth	10.6mm
Width	23.6mm
Gender	Male
Mount Type	Surface
Housing Material	Glass Filled Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	CPT
Termination Type	Crimp
Maximum Operating Temperature	100°C
Sub Type	CPT Connector
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	16

Key Features

Features a compact, low profile design suitable for miniaturized wire to board PCB connections.
Manufactured using glass filled liquid crystal polymer housing and copper alloy contacts.
Contacts are plated with gold over nickel for enhanced corrosion resistance and conductivity.
Operates reliably across a wide temperature range from -40°C to 100°C.
Provides crimp termination and supports surface mount installation for efficient assembly.
Designed specifically for automotive environments ensuring ruggedness and reliability.
Includes one row of 16 contacts with a 2.0 mm pitch spacing.
Cord is included with the connector for easy integration.

Product Description

JST SM16B-CPTK-1A-TB is a high-quality CPT series automotive connector featuring a male, black surface mount design with 16 contacts rated for 3A current. This connector is designed for miniaturized and low-profile wire-to-board PCB connections in demanding automotive applications.

Constructed with a housing of glass filled liquid crystal polymer and copper alloy contacts plated with gold over nickel, it ensures durability and excellent electrical performance. The connector maintains reliable operation within a temperature range of -40°C to +100°C, making it suitable for extreme automotive environments.

The connector offers crimp termination with a surface mount type and a single row configuration spaced at a 2.0 mm pitch. It comes with an included cord for straightforward installation and integration into automotive electrical systems.

Compliant with RoHS standards, this component is environmentally friendly and manufactured in Japan, reflecting quality craftsmanship and stringent production controls.

Applications primarily include automotive electrical equipment where compact size, rugged construction, and dependable performance are critical. Its compact dimensions (23.6 mm width, 9.3 mm height, 10.6 mm depth) facilitate space-saving integration in circuit design.

Compact low-profile connector design tailored for automotive PCB wiring. Gold over nickel plating ensures robust contact performance. Wide operating temperature supports various automotive environments. Crimp termination type provides secure wire connections.

Surface mount style allows for efficient PCB assembly. Included cord enhances practical application and connectivity. Constructed with durable materials to withstand harsh conditions. RoHS compliant, ensuring environmental safety.

Manufactured in Japan with high-quality standards. Explore more Automotive Connectors and related components at EnvMart to fulfill diverse industrial and automotive system requirements.
