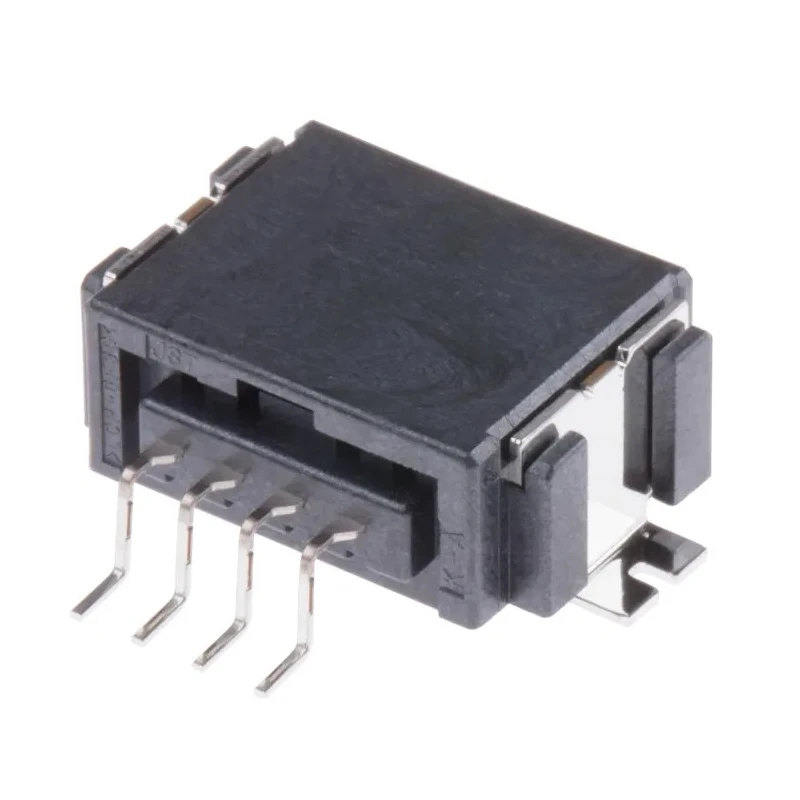

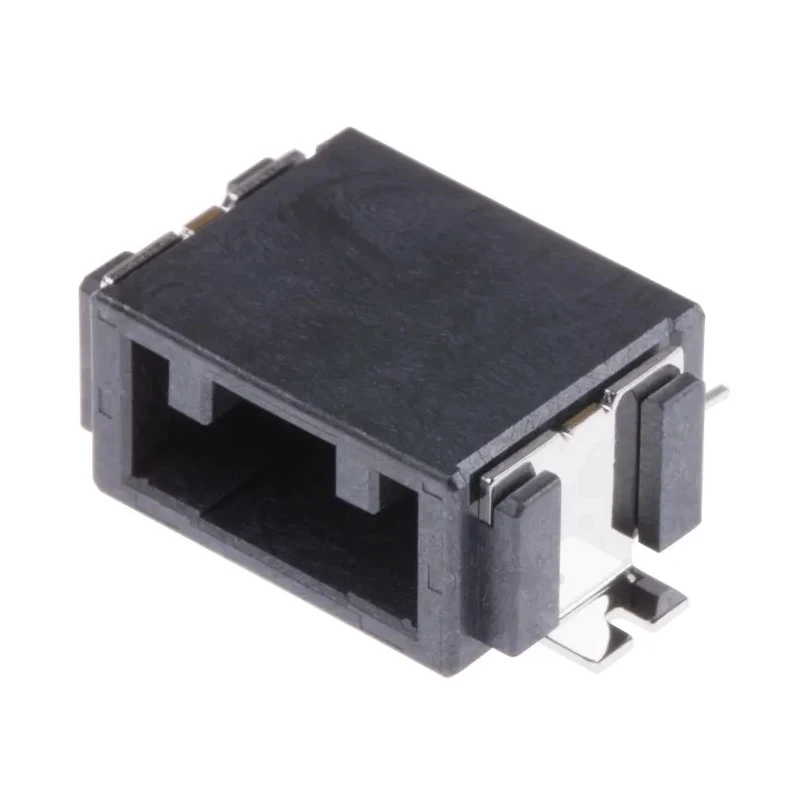

JST CPT Automotive Connector Male Black Surface Mount 4 Way 3A Current Solder Termination SM04B1-CPTK-1A-TB
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Black |
| Current | 3A |
| Height | 6.8mm |
| Model | SM04B1-CPTK-1A-TB |
| Depth | 10.6mm |
| Width | 15.6mm |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | CPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Sub Type | CPT Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 4 |
Key Features
- Features 4 contacts in a single row for compact connectivity.
- Surface mount design minimizes PCB space and enables easy installation.
- Constructed with glass filled liquid crystal polymer housing for durability.
- Copper alloy contacts plated with gold over nickel ensure reliable conductivity.
- Operates reliably within a temperature range of -40°C to 100°C.
- Rugged design compliant with RoHS standards for automotive and industrial use.
- Black color housing enhances visual identification and aesthetics.
- Cord included to facilitate wiring integration in assemblies.
Product Description
JST SM04B1-CPTK-1A-TB is a high-quality automotive connector designed for male surface mount applications. It features a 4 way configuration, supporting a maximum current of 3A, and is specifically engineered for compact and reliable wire to board connections in automotive electrical systems.
The connector has a single row with 2.0 mm pitch, housing constructed from glass filled liquid crystal polymer, offering excellent mechanical strength and durability. Contact pins are made from copper alloy with gold plating over nickel to provide superior electrical conductivity and corrosion resistance.
Designed to operate effectively over a wide temperature range from -40°C to +100°C, this connector complies with the RoHS directive, guaranteeing environmental safety and reducing hazardous substances. The black housing color aids in easy identification and consistent integration with automotive assemblies.
Applications include automotive electrical equipment where rugged and reliable miniature connectors are essential. The surface mount termination ensures compatibility with automated assembly processes and enhances installation efficiency.
Features 4 contacts in a single row for compact connectivity. Surface mount design minimizes PCB space and enables easy installation. Constructed with glass filled liquid crystal polymer housing for durability. Copper alloy contacts plated with gold over nickel ensure reliable conductivity.
Operates reliably within a temperature range of -40°C to 100°C. Rugged design compliant with RoHS standards for automotive and industrial use. Black color housing enhances visual identification and aesthetics. Cord included to facilitate wiring integration in assemblies.
Manufactured in Japan ensuring high quality and precision engineering. Suitable for low profile wire to board PCB connections in automotive environments.
This JST CPT Automotive Connector is ideal for automotive manufacturing, electronics assembly, and industrial applications requiring precision electrical connectivity. For related connectors and components, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A.
It operates reliably within a temperature range of -40°C to 100°C.
The housing is constructed from glass filled liquid crystal polymer, and the contact pins are made from copper alloy plated with gold over nickel.
This connector features 4 contacts arranged in a single row.
It uses solder termination for secure connections.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The connector has a height of 6.8mm, a width of 15.6mm, and a depth of 10.6mm.
The housing is black, which enhances visual identification and aesthetics in automotive assemblies.
It is manufactured in Japan, ensuring high quality and precision engineering.
This model supports surface mounting, which minimizes PCB space and facilitates easy installation.
It is suitable for automotive electrical equipment and applications requiring compact and reliable wire to board connections.
Yes, a cord is included to facilitate wiring integration in assemblies.
