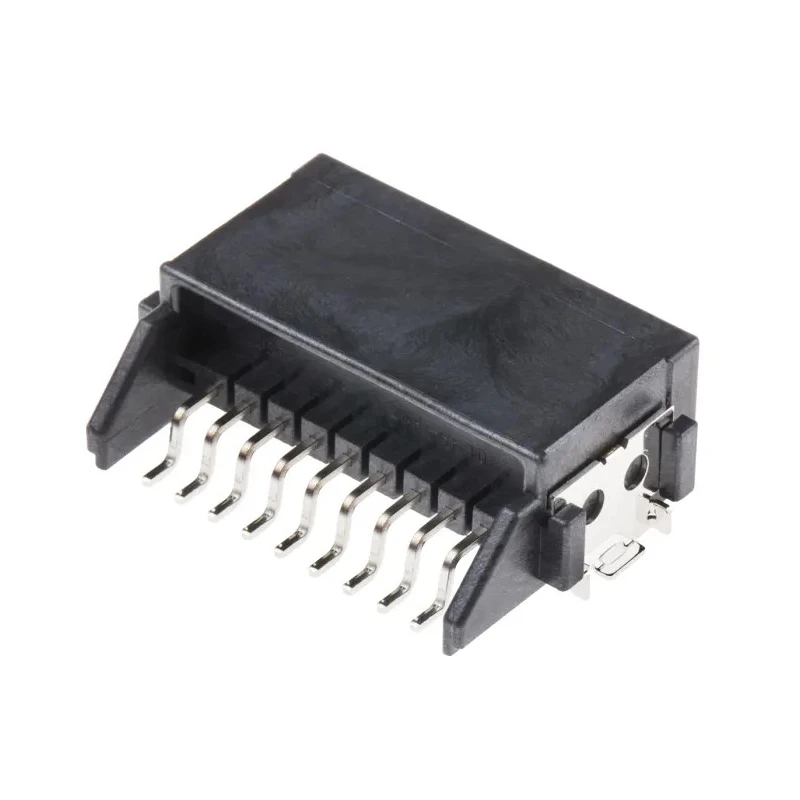

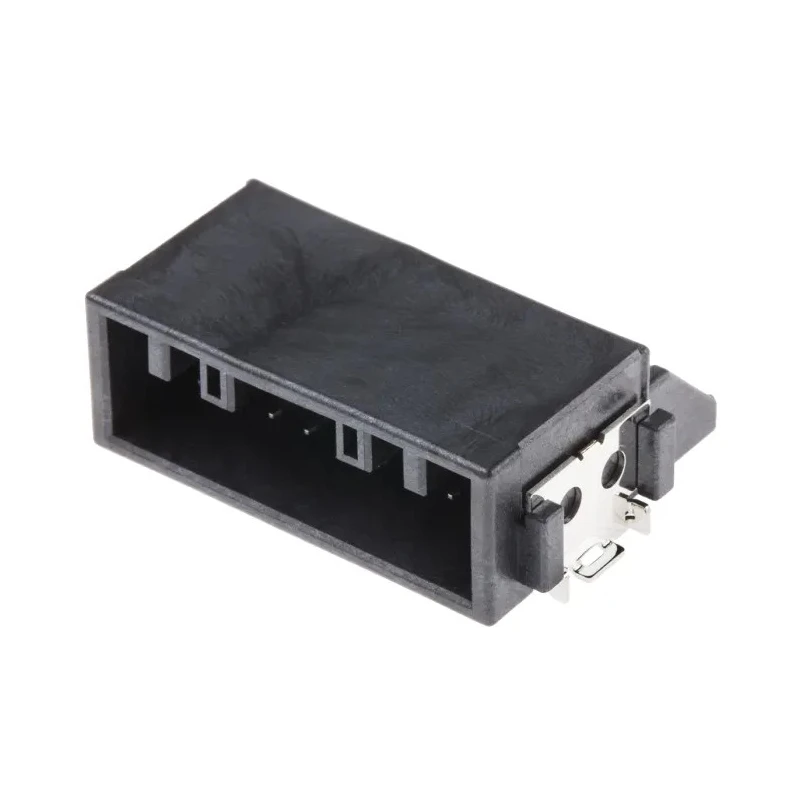

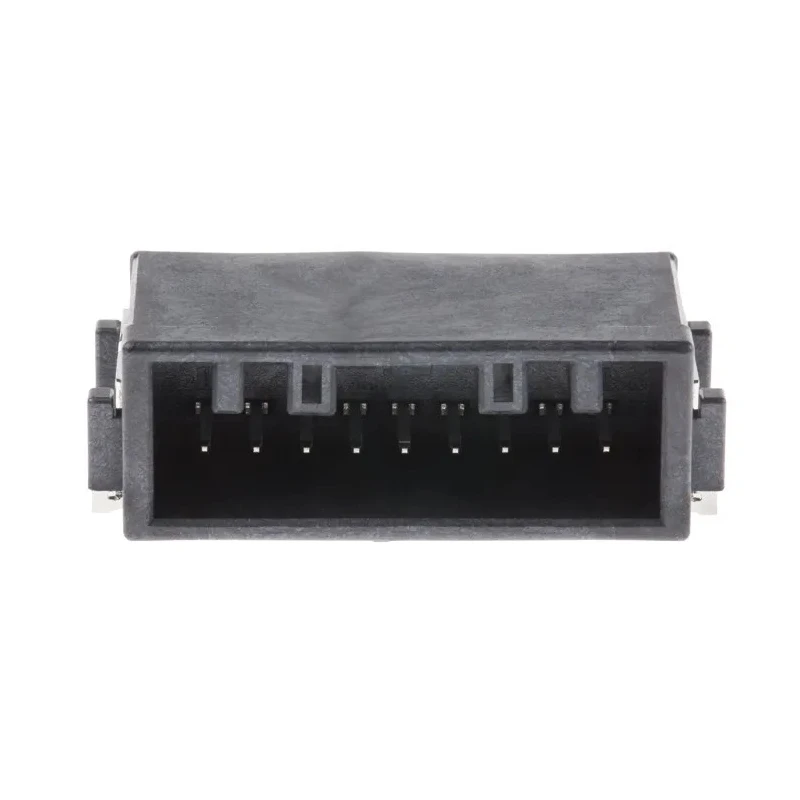

JST HCH Automotive Connector Male Black Through Hole 9 Way Solder Termination SM09B-HCHK-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST HCH Automotive Connector Male Black Through Hole 9 Way Solder Termination SM09B-HCHK-TB(LF)(SN)



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Black
Current	5A
Height	10.9mm
Model	SM09B-HCHK-TB(LF)(SN)
Depth	21.8mm
Width	32.3mm
Gender	Male
Mount Type	Through Hole
Housing Material	Glass Filled Liquid Crystal Polymer
Contact Material	Brass
Series	HCH
Termination Type	Solder
Maximum Operating Temperature	120°C
Sub Type	HCH Connector
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Nickel over Tin
Number of Contacts	9

Key Features

Features a 2.54 mm pitch for PCB mount compatibility.
Constructed for high reliability in automotive electrical equipment.
Operates within a temperature range of -40°C to 120°C.
Housing made of glass filled liquid crystal polymer ensures rugged design.
Brass contacts plated with nickel over tin provide durability and conductivity.
Designed for secure connections in high vibration environments.
Compact and low profile design aids miniaturised wire-to-board connections.
This through hole mount connector has a single row with 9 contacts.

Product Description

JST SM09B-HCHK-TB(LF)(SN) is a high-quality automotive connector from the HCH series with a black male through hole design featuring 9 contacts. It is engineered for PCB mounting with a 2.54 mm pitch, offering a rugged, low profile solution ideal for automotive wire-to-board electrical connections.

The connector is constructed from glass filled liquid crystal polymer housing and brass contacts plated with nickel over tin for superior durability and excellent electrical conductivity. The robust design includes a reinforcing tab to ensure a secure connection even under high vibration conditions, making it highly reliable in automotive electrical equipment.

It supports a current rating of 5A and operates efficiently over a wide temperature range from -40°C to 120°C, suitable for demanding automotive environments. This connector includes a cord and is designed for through hole mounting, simplifying PCB integration.

This product is RoHS compliant and manufactured in Japan, ensuring quality and adherence to environmental standards. Typical applications include automotive electrical systems requiring compact, reliable interconnections.

Features a 2.54 mm pitch for PCB mount compatibility. Constructed for high reliability in automotive electrical equipment. Operates within a temperature range of -40°C to 120°C. Housing made of glass filled liquid crystal polymer ensures rugged design.

Brass contacts plated with nickel over tin provide durability and conductivity. Designed for secure connections in high vibration environments. Compact and low profile design aids miniaturised wire-to-board connections. This through hole mount connector has a single row with 9 contacts.

Cord is included for enhanced connectivity. RoHS compliant, manufactured in Japan.

This connector is ideal for use in automotive, industrial electronics, and manufacturing applications where secure and reliable electrical connections are essential. Explore more Automotive Connectors on EnvMart for diverse connector solutions.
