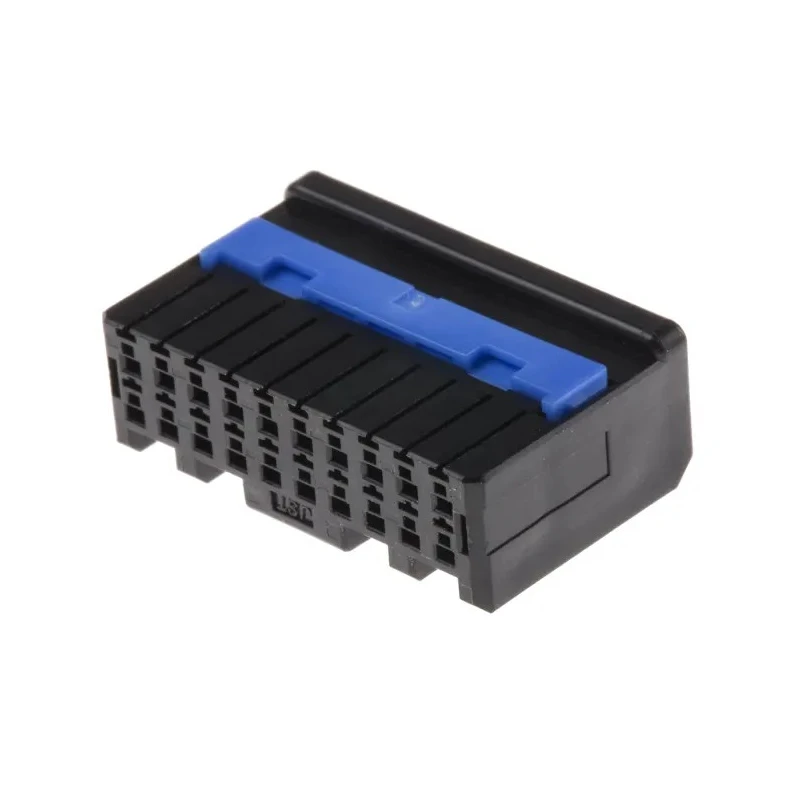

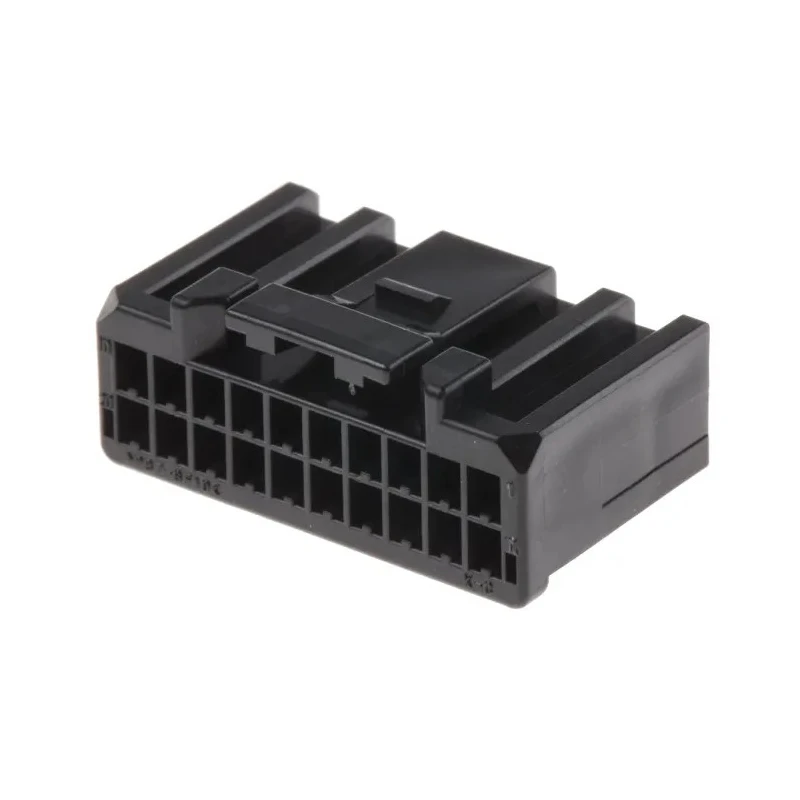

JST CPT Automotive Connector Female Black Surface 20 Way Crimp Termination 20CPT-B-2A

Free Delivery in India | Lowest Global Shipping Charges

JST CPT Automotive Connector Female Black Surface 20 Way Crimp Termination 20CPT-B-2A



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Black
Current	3A
Height	9.1mm
Model	20CPT-B-2A
Depth	13.5mm
Width	22mm
Gender	Female
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Brass
Series	CPT
Termination Type	Crimp
Maximum Operating Temperature	100°C
Sub Type	CPT Connector
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	20

Key Features

This connector features a 2.0 mm pitch and compact housing suitable for space-critical uses.
It accepts crimp terminals with cable sizes from 0.3 mm² to 1.4 mm² for reliable connections.
The product supports a current rating of 3A and includes 20 contacts arranged in two rows.
Its temperature operating range spans from -40°C to +100°C to withstand harsh environments.
The housing is made of fibreglass reinforced polybutylene terephthalate ensuring rugged durability.
Contacts are brass plated with gold over nickel for corrosion resistance and optimal conductivity.
The surface mount design facilitates easy PCB integration with secure locking.
The connector is RoHS compliant and manufactured in Japan guaranteeing quality standards.

Product Description

JST 20CPT-B-2A Automotive Connector is a female black surface mount automotive electrical connector with 20 way crimp termination designed for reliable wire-to-board connections in automotive applications. It is engineered with a 2.0 mm pitch and compact housing ideal for space-constrained environments.

The connector accepts crimp terminals compatible with cable acceptance sizes ranging from 0.3 mm² to 1.4 mm², providing solid and durable contacts. Rated for 3A current with 20 contacts arranged in two rows, it supports automotive electrical equipment operating under wide temperature ranges from -40°C to 100°C.

The housing material is fibreglass reinforced polybutylene terephthalate, giving the connector ruggedness and resistance against mechanical stress. Contacts are made from brass and plated with gold over nickel for enhanced corrosion resistance and excellent electrical conductivity. The surface mount design allows straightforward PCB integration with reliable locking mechanism.

This connector complies with RoHS standards and is manufactured in Japan, reflecting high quality and environmental compliance. Included with this product is a cord, complementing the connector as part of JST's CPT series.

Applications for the JST 20CPT-B-2A include automotive electrical systems requiring compact, low profile, and miniaturized wire-to-board connections with dependable performance under diverse environmental conditions.

This connector provides a miniaturized and low-profile solution for automotive wire-to-board connections. The robust design ensures reliability in automotive electrical equipment. The product operates effectively across a wide temperature range of -40°C to +100°C.

Fibreglass reinforced housing offers durability against mechanical stress. Gold over nickel plated brass contacts enhance conductivity and corrosion resistance. Surface mount facilitates easy PCB assembly and application.

RoHS compliance ensures environmentally safe manufacturing. Manufactured in Japan with adherence to quality standards. Includes cord and is part of the CPT series for automotive connectors. Ideal for space-critical automotive wire-to-board connections.
