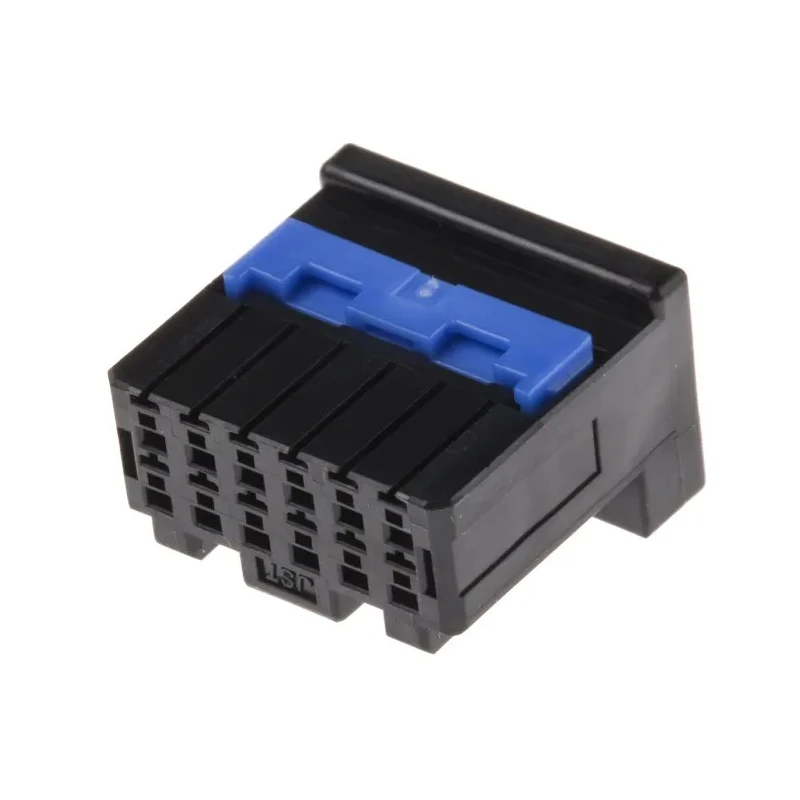

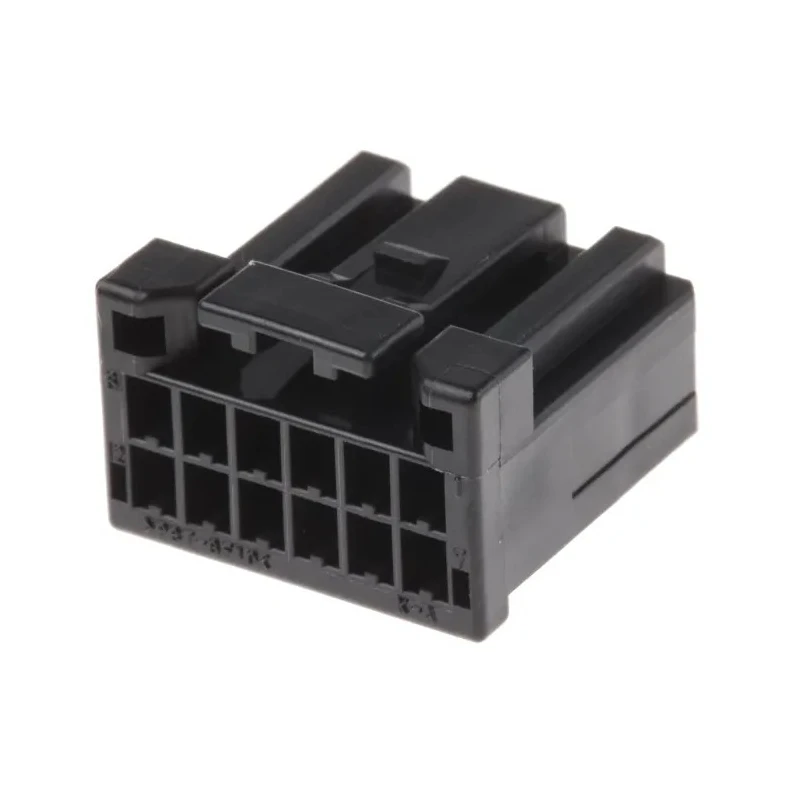

JST CPT Automotive Connector Female Black Surface 12 Way Crimp Termination 12CPT-B-2A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Black |
| Current | 3A |
| Height | 9.1mm |
| Model | 12CPT-B-2A |
| Depth | 13.5mm |
| Width | 14mm |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | CPT |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | CPT Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 12 |
Key Features
- The connector offers 12 contacts arranged in 2 rows for secure and reliable connections.
- Crimp termination ensures strong mechanical and electrical integrity.
- Compatible with cable acceptance sizes from 0.3 mm² to 1.4 mm².
- Housing made of fibreglass reinforced polybutylene terephthalate for durability.
- Gold over nickel plating on brass contacts for corrosion resistance and optimum conductivity.
- Wide operating temperature range from -40°C up to 100°C suitable for automotive environments.
- Surface mount type suitable for compact and space-critical applications.
- Includes cord and designed for miniaturized low profile wire-to-board PCB connections.
Product Description
JST 12CPT-B-2A is a high-quality automotive connector designed for robust and compact electrical connections in demanding automotive applications. This female black surface connector features 12 contacts arranged in 2 rows with crimp terminations, ensuring secure connectivity with cables sized between 0.3 mm² and 1.4 mm². The connector housing is manufactured from fibreglass reinforced polybutylene terephthalate, providing excellent mechanical strength and heat resistance within a operating temperature range from -40°C to 100°C.
The contacts are made of brass with a gold-over-nickel plating finish, which enhances corrosion resistance and electrical conductivity, ensuring reliability even in harsh automotive environments. The surface mount type design is ideal for space-critical areas and supports miniaturized, low-profile wire-to-board PCB connections.
Its rugged yet compact architecture makes it suitable for use in various industrial and automotive electrical equipment. The connector is part of JST’s CPT series, renowned for providing high reliability in electrical systems. This product supports automotive use cases such as wiring harnesses and control units where dependable connectivity is vital.
This connector complies with RoHS standards, ensuring it meets environmental and safety requirements. A suitable crimp tool and compact female terminals are available separately for optimal installation.
The connector offers 12 contacts arranged in 2 rows for secure and reliable connections. Crimp termination ensures strong mechanical and electrical integrity. Compatible with cable acceptance sizes from 0.3 mm² to 1.4 mm².
Housing made of fibreglass reinforced polybutylene terephthalate for durability. Gold over nickel plating on brass contacts for corrosion resistance and optimum conductivity. Wide operating temperature range from -40°C up to 100°C suitable for automotive environments.
Surface mount type suitable for compact and space-critical applications. Includes cord and designed for miniaturized low profile wire-to-board PCB connections. Meets RoHS compliance ensuring environmental safety. Explore more JST Automotive Connectors and compatible accessories at EnvMart for reliable electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 100°C.
This model has a current rating of 3A.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are made of brass with gold over nickel plating.
It is compatible with cable acceptance sizes from 0.3 mm² to 1.4 mm².
This connector features 12 contacts arranged in 2 rows.
It uses crimp termination, ensuring strong mechanical and electrical integrity.
The dimensions of this connector are 14mm in width, 13.5mm in depth, and 9.1mm in height.
Yes, it is designed for robust and compact electrical connections in demanding automotive applications.
This model supports surface mounting, making it suitable for compact and space-critical applications.
It complies with RoHS standards, ensuring it meets environmental and safety requirements.
This connector is a female type.
The connector is manufactured in Japan.
