JST CPT Automotive Connector Male Black Surface Mount 16 Way Crimp Termination SM16B-CPTK-1A-TB

Free Delivery in India | Lowest Global Shipping Charges

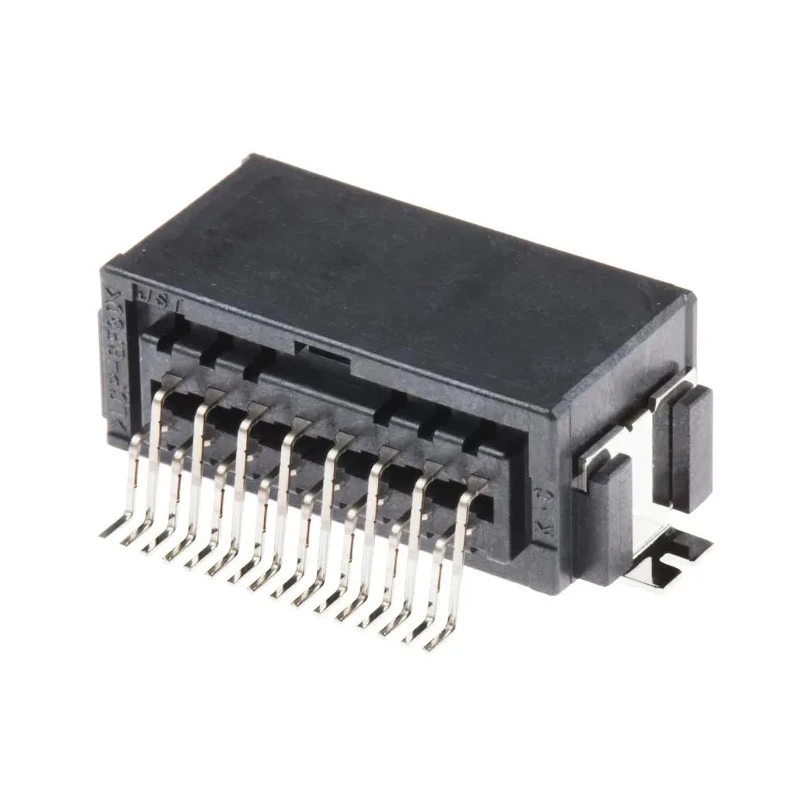

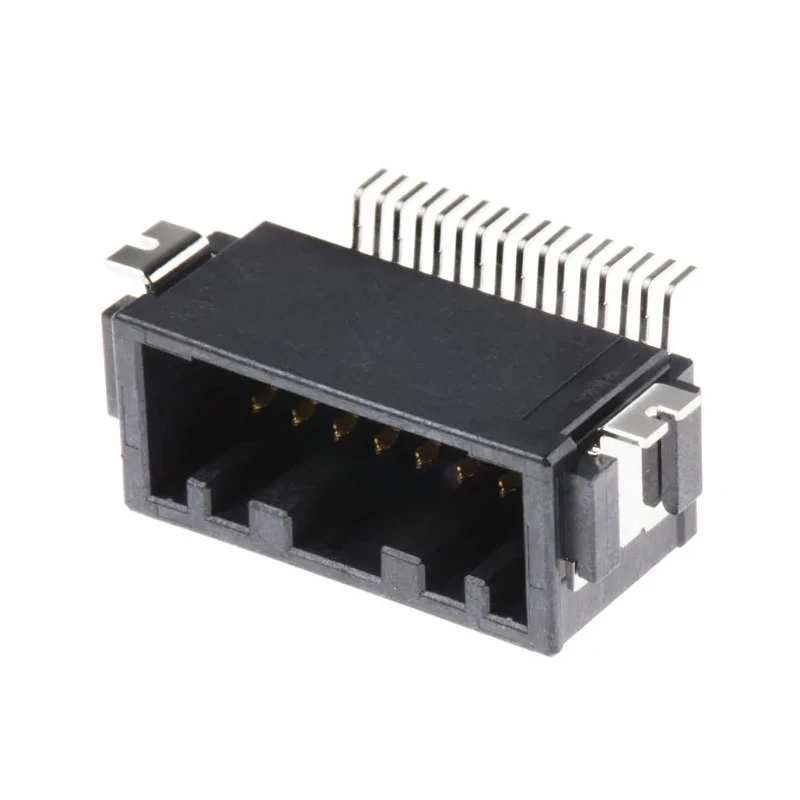

JST CPT Automotive Connector Male Black Surface Mount 16 Way Crimp Termination SM16B-CPTK-1A-TB



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Diameter	1.4mm
Brand	JST
Colour	Black
Current	3A
Height	9.3mm
Model	SM16B-CPTK-1A-TB
Depth	10.6mm
Width	23.6mm
Gender	Male
Mount Type	Surface
Housing Material	Glass Filled Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	CPT
Termination Type	Crimp
Maximum Operating Temperature	100°C
Sub Type	CPT Connector
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	16

Key Features

Compact 2.0 mm pitch design optimized for automotive wire-to-board connections.
Durable glass filled liquid crystal polymer housing for high reliability.
Gold-over-nickel plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Operates reliably across a wide temperature range from -40°C to 100°C.
Designed for surface mount with single row configuration and 3A current rating.
Black color housing with RoHS-compliant materials.
Includes cord and suitable for miniaturized, low profile automotive electrical equipment.
Manufactured in Japan to high quality standards.

Product Description

The JST SM16B-CPTK-1A-TB is a high-quality automotive connector designed to meet the demanding requirements of modern electrical systems. Featuring a 16 contact male configuration with crimp termination, this connector provides secure, reliable wire-to-board connections that are widely used in automotive and industrial applications.

The connector features a compact 2.0 mm pitch that supports miniaturized, low profile surface mount designs, enabling integration into space-constrained environments while maintaining electrical and mechanical robustness. Its housing is made from glass filled liquid crystal polymer, delivering excellent strength and heat resistance between -40°C and 100°C.

The contacts are fabricated from copper alloy and plated with gold over nickel, offering high conductivity and corrosion resistance essential for reliable automotive performance. This male connector comes with a single row of 16 contacts capable of carrying a current up to 3A, suitable for typical automotive signal and power usage.

Compliant with RoHS standards, the black housing and quality materials ensure ruggedness and longevity. The product is manufactured in Japan, guaranteeing stringent quality control processes and adherence to industry standards.

Applications primarily include automotive electronics, where durable and precise connections are critical for functions such as sensor interfaces, control modules, and cable assemblies. The design supports improved production efficiency by providing pre-terminated cable housing options for automated insertion and assembly.

Compact 2.0 mm pitch suited for miniaturized automotive applications. Glass filled liquid crystal polymer housing ensures durability and heat resistance. Gold over nickel plating on copper alloy contacts for superior conductivity.

Wide operating temperature range from -40°C to 100°C. Surface mount, single row with 16 contacts and 3A current capacity. RoHS compliant material composition. Black color housing with included cord for streamlined wiring assemblies.

Manufactured in Japan adhering to high quality automotive standards.

Explore more Automotive Connectors and electronic components on EnvMart to enhance your automotive electrical assemblies with proven, quality solutions from trusted brands like JST.
