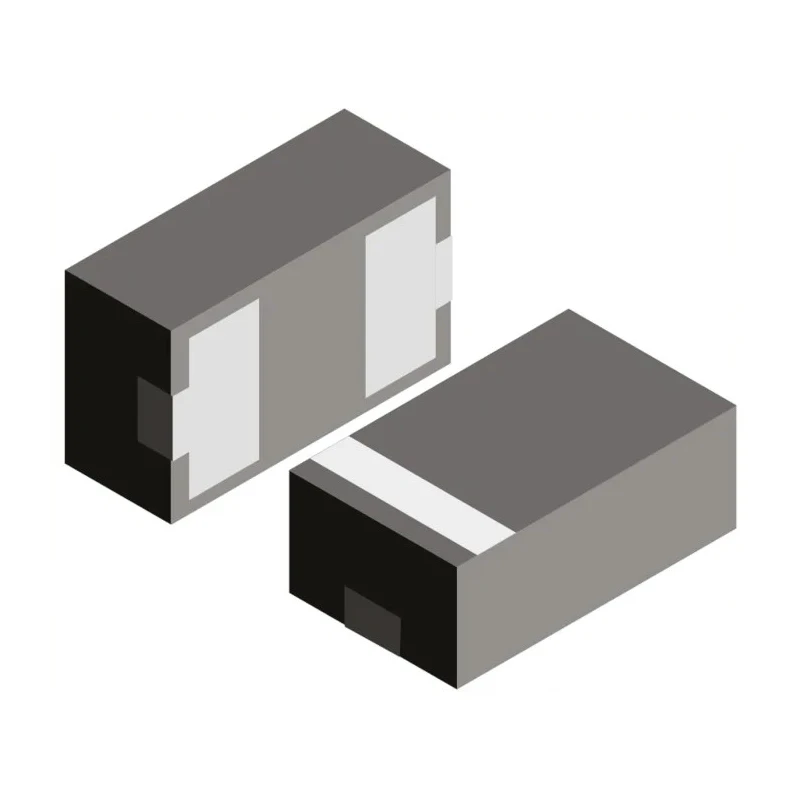

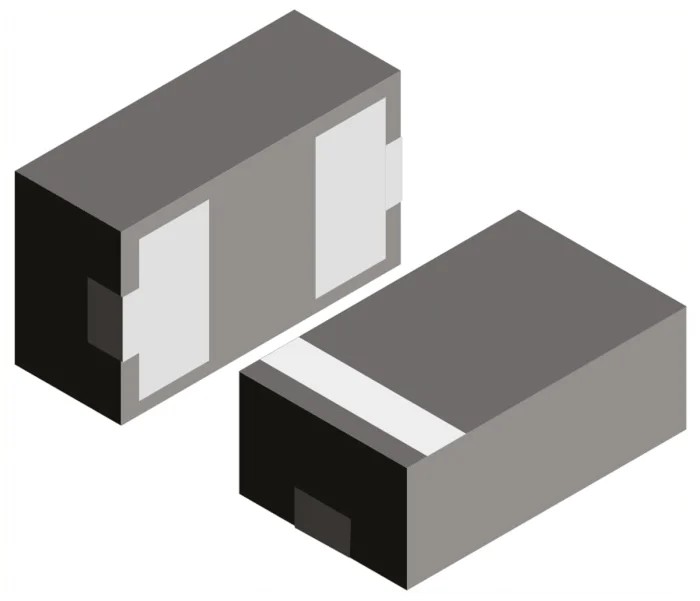

Vishay 2-Element Bi-Directional ESD Protection Diode 56 W 2-Pin LLP1006 VCUT0505B-HD1-GS08

Vishay's VCUT0505B-HD1-GS08 is a highly efficient 2-element bi-directional Electrostatic Discharge (ESD) protection diode designed for use in electronic circuits requiring transient suppression. Packaged in a low-profile LLP1006 surface mount package, this device provides a peak pulse power dissipation of 56 W, making it suitable for protecting sensitive electronic components from ESD-events and transient voltage spikes.

The diode features a dual diode configuration to handle surges in both directions, with a minimum breakdown voltage of 7 V and maximum reverse stand-off voltage of 5 V, ensuring reliable operation and safety. It offers a clamping voltage of 12 V, which effectively limits voltage spikes during transient events. The device supports continuous operation across a broad temperature range from -40°C to 125°C, ensuring durable performance in diverse environments.

Its compact size, with length 1.05 mm, width 0.65 mm, and height 0.4 mm, enables integration in space-constrained applications on PCBs. The maximum peak pulse current rating of 3.5 A alongside a low maximum reverse leakage current of 100 nA contribute to its efficiency in protecting sensitive semiconductor devices and integrated circuits.

The VCUT0505B-HD1-GS08 conforms to IEC 61000 standards, offering dependable electrostatic discharge protection necessary for modern electronic systems. Typical applications include safeguarding data lines, interface ports, and other sensitive circuit points in consumer electronics, industrial equipment, and communication systems.

This diode is manufactured in China and maintained in new condition. It is part of Vishay's semiconductor product portfolio, renowned for quality and reliability in surge and transient voltage suppression components.

Features a dual diode configuration for bi-directional ESD protection. Minimum breakdown voltage of 7 V and maximum reverse stand-off voltage of 5 V. Clamping voltage rated at 12 V for effective transient suppression. Operates within a temperature range from -40°C to 125°C.

Compact dimensions of 1.05 mm length, 0.65 mm width, and 0.4 mm height. Maximum peak pulse current of 3.5 A ensures robust transient handling. Maximum reverse leakage current of 100 nA maintains device efficiency. Designed for surface mount applications in LLP1006 package.

Complies with IEC 61000 ESD protection standards. Explore Vishay's range of reliable ESD Protection Diodes for enhanced circuit protection at EnvMart.
