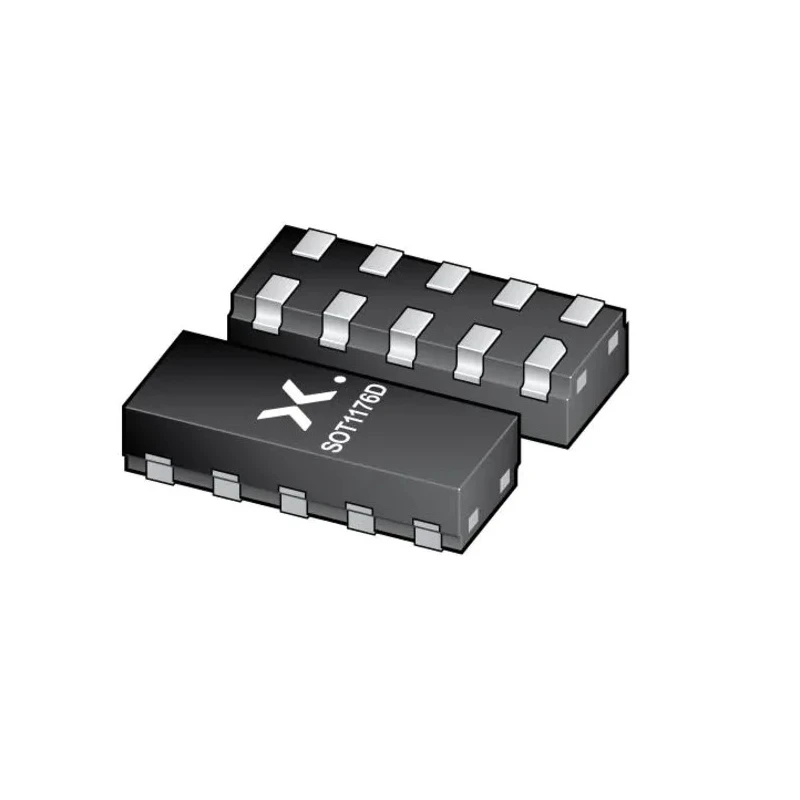

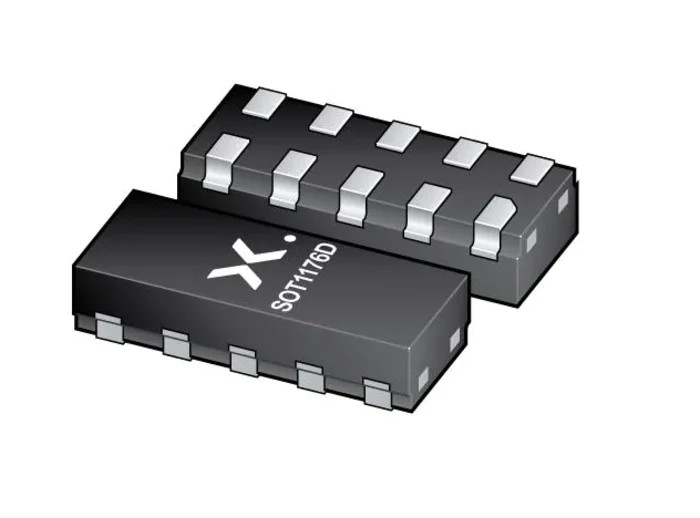

Nexperia Bi-Directional ESD Protection Diode DFN2510D PESD4USB5B-TBS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TBS |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Provides system-level ESD protection for HDMI, DisplayPort, eSATA, and LVDS interfaces.
- Features low line capacitance of 0.5 pF per channel for minimal signal interference.
- Offers maximum peak pulse current of 7 A ensuring robust surge handling.
- Compact DFN2510D surface mount package with dimensions 2.5 mm x 0.75 mm x 1 mm.
- Operates reliably in temperatures ranging from -65°C to 150°C, suitable for automotive applications.
- Conforms to automotive standard AEC-Q101 and IEC 61000-4-2 ESD protection standards.
- Designed for applications including automotive A/V monitors, SerDes communication, and infotainment systems.
Product Description
The Nexperia PESD4USB5B-TBS is a bi-directional ESD Protection Diode manufactured to safeguard high-speed interfaces against electrostatic discharge (ESD) events. This device is tailored for protecting interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, external Serial Advanced Technology Attachment (eSATA), and Low Voltage Differential Signalling (LVDS), making it ideal for use in advanced electronics requiring reliable transient voltage suppression.
Housed in a compact DFN2510D surface mount package measuring 2.5 mm in length, 0.75 mm in width, and 1 mm in height, this diode offers a space-efficient solution ideal for modern circuit board designs. It features a low line capacitance of only 0.5 pF per channel, ensuring minimal impact on signal integrity during high-speed data transmission.
With a maximum peak pulse current rating of 7 amperes and a maximum reverse stand-off voltage of 5 volts, the device effectively clamps transient voltages at a safe threshold of 5.5 volts, protecting sensitive components. It operates reliably over a broad temperature range from -65°C to 150°C, meeting the stringent requirements of automotive and industrial environments.
Certified to automotive standard AEC-Q101 and IEC 61000-4-2 compliance for ESD protection, the PESD4USB5B-TBS is suitable for automotive audiovisual monitors, cameras, infotainment systems, and high-speed serial data link applications including Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) interfaces.
Its unique design supports matched 0.5 mm trace spacing and side-wettable flanks (SWF) for ease of assembly and reliable solder joints. The diode supports design-friendly 'pass-through' signal routing, enhancing PCB layout simplicity.
Provides system-level ESD protection for USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT, and eSATA interfaces. Extensive automotive compliance with AEC-Q101 standard. Compact DFN2510D package suitable for space-constrained applications.
Low leakage current of 100 nA minimizes power loss. Wide operating temperature range from -65°C to 150°C supports harsh environments. Excellent transient voltage suppression with 7A peak pulse current and 5.5V clamping voltage.
Optimized for infotainment systems, automotive video monitors, display interfaces, and camera protection.
This diode is ideal for use in industrial, automotive, and commercial electronic systems requiring robust ESD protection for sensitive high-speed data interfaces. Explore more Nexperia semiconductor solutions on EnvMart for superior performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current for the PESD4USB5B-TBS is 7 amperes, ensuring robust surge handling capabilities.
The clamping voltage of this diode is 5.5 volts, effectively clamping transient voltages to protect sensitive components.
The DFN2510D package measures 2.5 mm in length, 0.75 mm in width, and 1 mm in height, making it compact for space-constrained applications.
It operates reliably in temperatures ranging from -65°C to 150°C, suitable for harsh automotive and industrial environments.
The PESD4USB5B-TBS conforms to the automotive standard AEC-Q101 and the IEC 61000-4-2 ESD protection standards.
This model provides ESD protection for USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT, and eSATA interfaces.
The maximum reverse stand-off voltage for this diode is 5 volts, which helps in clamping transient voltages effectively.
The line capacitance is low at 0.5 pF per channel, which minimizes signal interference during high-speed data transmission.
The maximum reverse leakage current for this diode is 100 nA, which helps minimize power loss in the circuit.
It is optimized for automotive infotainment systems, automotive A/V monitors, and high-speed serial data link applications such as SerDes interfaces.
The PESD4USB5B-TBS uses a surface mount type, making it suitable for modern circuit board designs.
It supports matched 0.5 mm trace spacing and side-wettable flanks (SWF) for ease of assembly and reliable solder joints.
