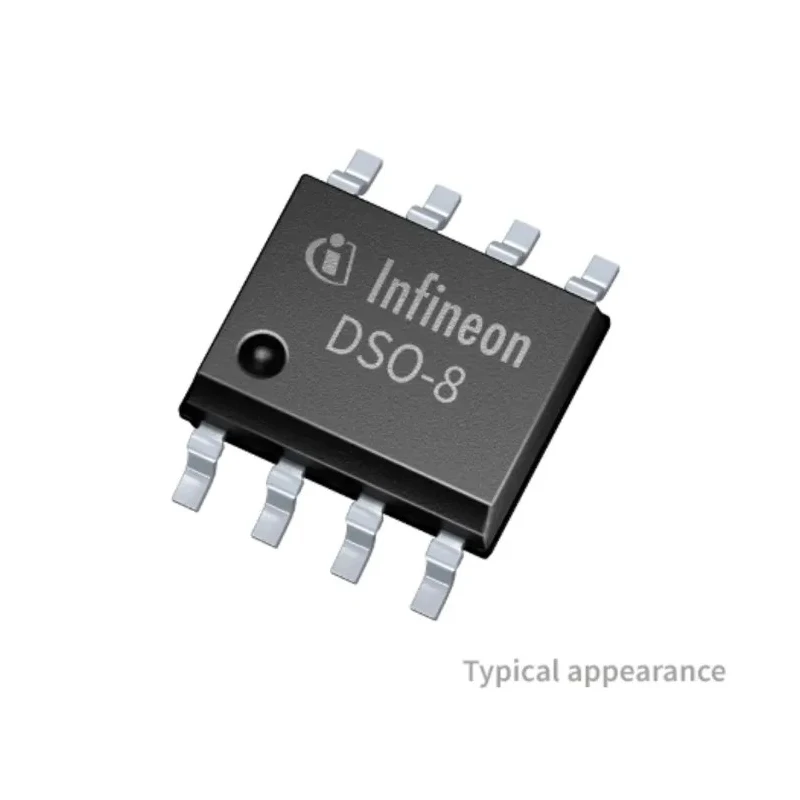

Infineon 2-Driver 8-Pin 25V Dual Half-Bridge Gate Driver with Integrated Bootstrap Diode 2ED2108S06FXUMA1

Infineon 2ED2108S06FXUMA1 is a dual half-bridge gate driver IC packaged in an 8-pin DSO-8 configuration designed for efficient power management in industrial and electronic systems.

This device integrates a bootstrap diode and uses Infineon's advanced Thin-Film Silicon on Insulator (SOI) technology providing high reliability and fast switching performance.

The gate driver features internal interlocking with an inherent 540 ns dead time, which is extendable to 5 microseconds through an external resistor, protecting power transistors during switching.

It supports a wide operating temperature range from -40°C up to 125°C, suitable for demanding environments.

The gate driver delivers an output current of -414.2 mA and operates within supply voltages from 6.5V minimum to 25V maximum, making it versatile for various power electronics applications.

Additional features include Schmitt trigger inputs with hysteresis for improved noise immunity and floating channel design for bootstrap operation. Separate logic and power grounds optimize system design and performance, particularly in the 2ED21084S06J variant.

Designed to meet RoHS standards, this gate driver IC fits well in automotive, industrial automation, and power management sectors seeking robust and efficient switching control solutions.

The device supports a maximum supply voltage of 25V and a minimum supply voltage of 6.5V. Output current capability is -414.2 mA ensuring strong driving force. Internal interlocking with programmable dead time up to 5 microseconds by external resistor.

8-pin DSO-8 package for compact design integration. Wide operating temperature range from -40°C to 125°C. Integrated fast, low resistance bootstrap diode for efficient operation. Schmitt trigger inputs provide hysteresis for noise immunity.

Employs Infineon's Thin-Film SOI technology for reliable and high-performance operation. Floating channel design tailored for bootstrap operation. RoHS compliant and suitable for automotive and general industrial applications.
