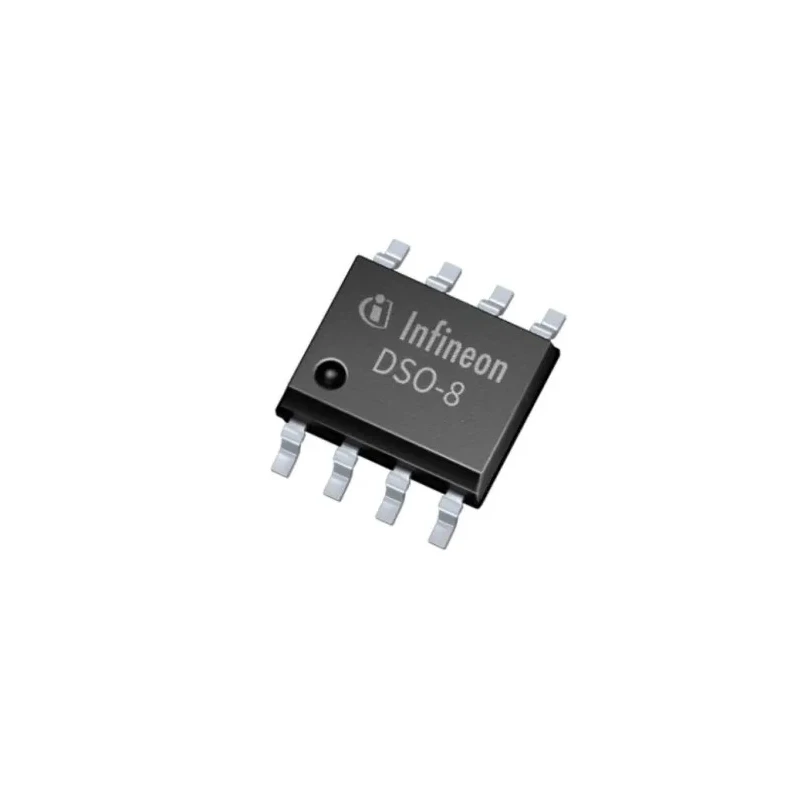

Infineon General Purpose Gate Driver 290mA 8-Pin 20V DSO 2ED2101S06FXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 2ED2101S06FXUMA1 |
| Mount Type | Board |
| Series | 2ED |
| Output Current | 290mA |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Rise Time | 170ns |
| Standards/Approvals | JEDEC47/20/22 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 10V |
| Fall Time | 35ns |
| Driver Type | General Purpose |
Key Features
- Features independent high and low side referenced output channels for flexible operation.
- Supports minimum supply voltage of 10V and maximum of 20V.
- Offers fast switching with 35ns fall time and 170ns rise time.
- Operates reliably over a wide temperature range from -40°C to 150°C.
- Includes integrated ultra-fast, low resistance bootstrap diode for efficient bootstrap operation.
- Designed with no parasitic thyristor structure, preventing latch-up under all conditions.
- Complies with JEDEC47/20/22 standards and meets AEC-Q100 automotive quality standard.
- Board mount type, ideal for robust and noise-immune industrial and automotive power switching applications.
Product Description
Infineon 2ED2101S06FXUMA1 is a high voltage, high speed general purpose gate driver with an output current of 290mA housed in an 8-pin DSO package. It features independent high and low side referenced output channels designed to provide excellent ruggedness and noise immunity, suitable for demanding industrial and automotive electronic applications.
The driver maintains operational logic even at negative voltages and is free from parasitic thyristor structures, eliminating parasitic latch-up risks across the entire temperature and voltage range. It includes an integrated ultra-fast, low resistance bootstrap diode optimised for bootstrap operation, enhancing efficiency and performance.
Operating voltage ranges from 10V minimum to 20V maximum supply voltage, with fast switching characterized by fall and rise times of 35ns and 170ns respectively. The device withstands a wide operating temperature range from -40°C up to 150°C, making it suitable for harsh environments.
This Infineon gate driver complies with JEDEC47/20/22 standards and the automotive-grade AEC-Q100 certification, ensuring reliability for automotive systems. Its board mount design enables easy integration into PCB layouts for power management, motor control, and switching power supply designs.
Independent high and low side output channels for versatile control. Integrated bootstrap diode for fast switching applications. No parasitic thyristor, ensuring safe operation under all conditions. Wide temperature operation from -40°C to 150°C for industrial and automotive use.
Compliant with JEDEC and AEC-Q100 automotive standards. Compact 8-pin DSO package facilitating board mounting. Designed to provide noise immunity and ruggedness in power electronics.
The Infineon 2ED2101S06FXUMA1 gate driver is an ideal choice for industrial, automotive, and power management applications requiring reliable and efficient gate drive capability. Explore our range of semiconductor components and Gate Drivers for various professional and commercial electronics projects at EnvMart.
