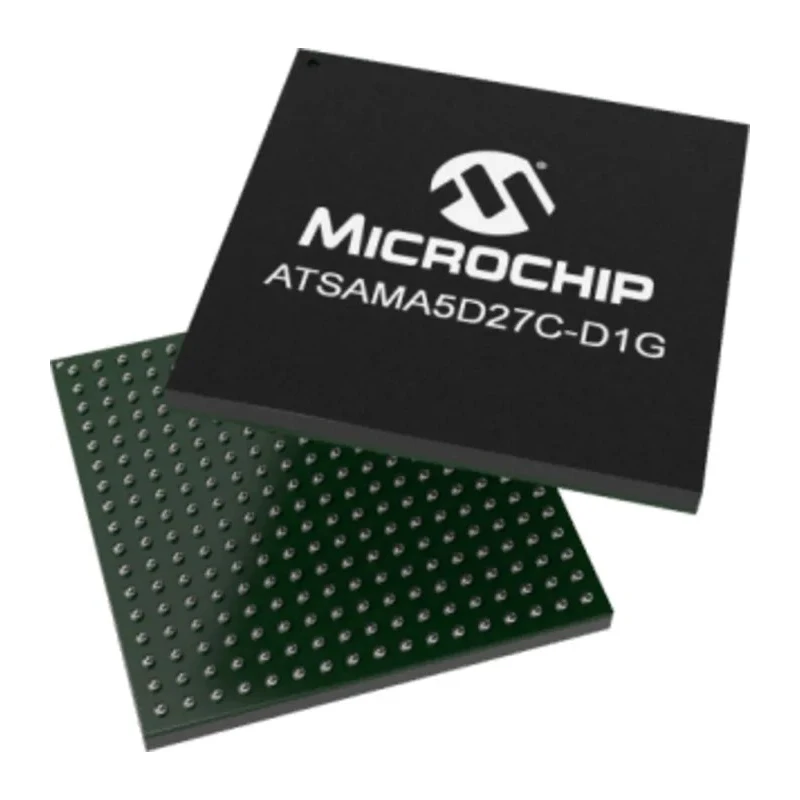

Microchip ARM Cortex A5 Microprocessor SAMA5D2 32 bit 500 MHz 289-Pin LFBGA ATSAMA5D27C-D1G-CU

Free Delivery in India | Lowest Global Shipping Charges

Microchip ARM Cortex A5 Microprocessor SAMA5D2 32 bit 500 MHz 289-Pin LFBGA ATSAMA5D27C-D1G-CU

Name: Microchip ARM Cortex A5 Microprocessor SAMA5D2 32 bit 500 MHz 289-Pin LFBGA ATSAMA5D27C-D1G-CU
Brand: Microchip
SKU: 223551
Price: 20.22 USD
Availability: InStock



Category Microprocessors Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.2mm
Length	14mm
Model	ATSAMA5D27C-D1G-CU
Mount Type	Surface
Series	SAMA5D2
Maximum Operating Temperature	85°C
Number Of Cores	1
Package Type	LFBGA
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	289
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.2V
Device Core	ARM Cortex A5
Maximum Clock Frequency	500MHz
Instruction Set Architecture	ARM

Key Features

Integrates ARM Cortex-A5 CPU with 1 Gbit DDR2-SDRAM for simplified board design.
Supports ultra-low power operation with fast wake-up modes.
Includes 32-Kbyte L1 data and instruction caches and 128-Kbyte configurable L2 cache.
Operates with supply voltage range from 1.2 V to 3.6 V.
Compatible with Linux OS for embedded applications.
Package size approximately 14 mm length, 1.2 mm height.
Designed for surface mount technology using LFBGA package.
Operating temperature range from -40°C to 85°C ensures industrial reliability.

Product Description

Microchip ATSAMA5D27C-D1G-CU is a high-performance ARM Cortex A5 microprocessor from the SAMA5D2 series, working at a maximum clock frequency of 500 MHz. This 32-bit microprocessor is integrated into a System in Package (SiP) that combines the ARM Cortex-A5 CPU with 1 Gbit DDR2-SDRAM and an additional internal SRAM. It is supplied in a compact 289-pin LFBGA package designed for surface mounting.

This microprocessor supports a wide operating voltage range from 1.2 V minimum to 3.6 V maximum and operates reliably in temperatures ranging from -40°C to 85°C. Featuring advanced memory architecture with 32-Kbyte L1 data and instruction caches plus a 128-Kbyte L2 cache configurable as SRAM, the SAMA5D27C-D1G-CU optimizes performance and power efficiency.

The device includes a built-in 8-bit SLC/MLC NAND flash memory controller with up to 32-bit error correction, enhancing data integrity. Its ultra-low-power modes enable fast wake-up, making it suitable for energy-conscious embedded applications.

Designed primarily for use with Linux operating systems, this microprocessor is ideal for embedded industrial and commercial applications where reliable processing and compact packaging are critical. The integration of processor and memory reduces PCB complexity and enhances electromagnetic and signal integrity, aiding robust board designs.

Integrates ARM Cortex-A5 CPU and DDR2-SDRAM in a single SiP package. High-performance 32-bit ARM architecture with 500 MHz processing speed. Supports low power operation with fast wake-up capability. Includes 32-Kbyte L1 caches and configurable 128-Kbyte L2 cache.

Operates over a supply voltage range of 1.2 V to 3.6 V. Wide temperature range for industrial environments. 8-bit NAND controller with advanced error correcting code. Reducing PCB complexity and improving EMI/ESD robustness.

Compatible with Linux OS for industrial embedded systems.

This microprocessor is well-suited for industrial automation, communications equipment, instrumentation, and other embedded applications requiring a powerful yet energy-efficient microcontroller solution. Explore our Microprocessors category for more high-quality electronic components like the Microchip ATSAMA5D27C-D1G-CU.
